2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. Check Ground Connections
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. See Figure .

      Refer to GROUND INSPECTION  .

    OK or NG

    1. OK: go to 2.
    2. NG: Repair or replace ground connections.

  2. Check ICC Steering Switch Circuit

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select MAIN SW ,"RESUME/ACC SW , SET SW , DIST SW and CANCEL SW in DATA MONITOR mode with CONSULT-II.
    3. Check each item indication under the following conditions.

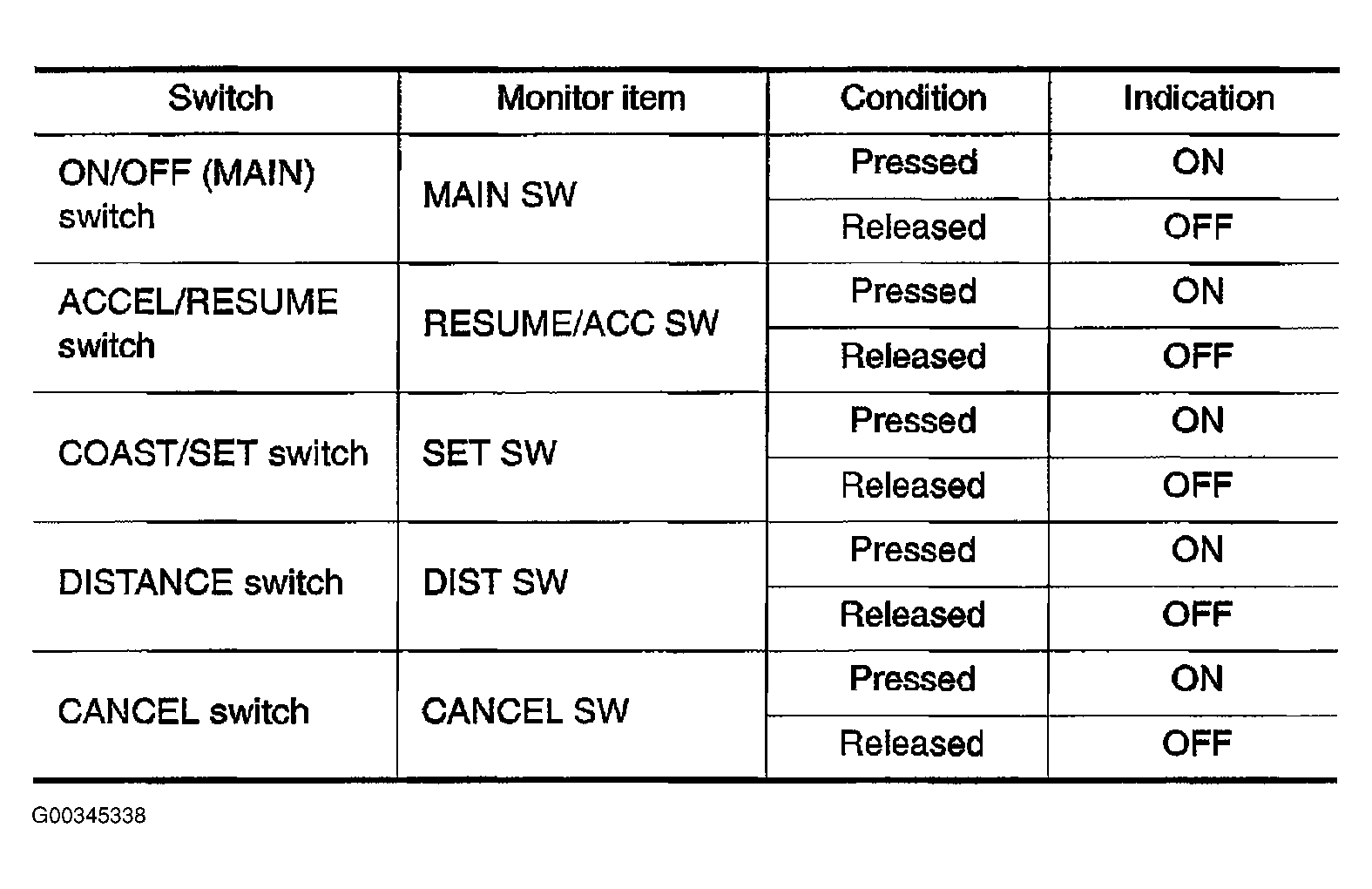

      Fig 1: ICC Steering Switch Circuit Testing Specifications (CONSULT-II)
      G00345338Courtesy of NISSAN MOTOR CO., U.S.A.
