Diagnostic Procedure
- Check Ground Connections
- Turn ignition switch OFF.
- Loosen and retighten three ground screws on the body. See Figure
.
Refer to GROUND INSPECTION .
OK or NG
- OK: go to 2.
- NG: Repair or replace ground connections.
- Check ASCD Steering Switch Circuit
With CONSULT-II
- Turn ignition switch ON.

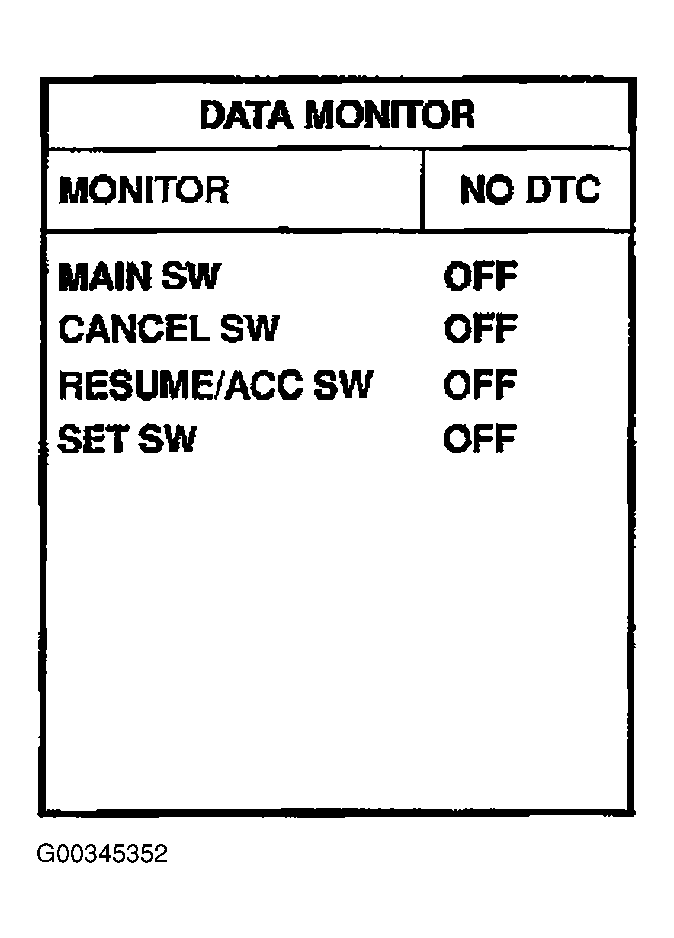

- Select MAIN SW , RESUME/ACC SW , SET SW and CANCEL SW in DATA MONITOR mode with CONSULT-II.
- Check each item indication under the following conditions.
