2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Cooling Fan Motor

  1. Disconnect cooling fan motor harness connector.
  2. Supply cooling fan motor terminals with battery voltage, see Fig 1 , and check operation. See Figure .

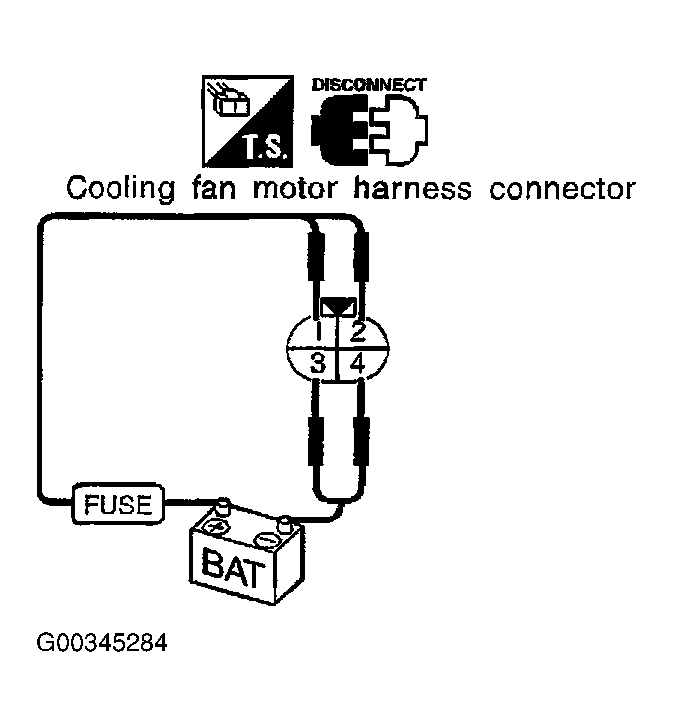

  3. Fig 1: Supplying Cooling Fan Motor With Battery Voltage
    G00345284Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operateΒ  .

If NG, replace cooling fan motor.
