Testing Condition
- Open engine hood before conducting following procedure.
- If any of following conditions are met just before the DTC confirmation procedure, leave the vehicle for more than 1 hour.
- Fuel filler cap is removed.
- Fuel is refilled or drained.
- EVAP component parts is/are removed.
- Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
With CONSULT-II
- Turn ignition switch ON and select DATA MONITOR mode with CONSULT-II.
- Make sure the following conditions are met.
FUEL LEVEL SE: 0.25 - 1.4V
COOLANT TEMP/S: 0 - 32° C (32 - 90° F)
FUEL T/TMP SE: 0 - 35° C (32 - 95° F)
INT A/TEMP SE: More than 0° C (32° F)
If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining fuel until the output voltage condition of the FUEL LEVEL SE meets within the range above and leave the vehicle for more than 1 hour. Then start from step 1).
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.

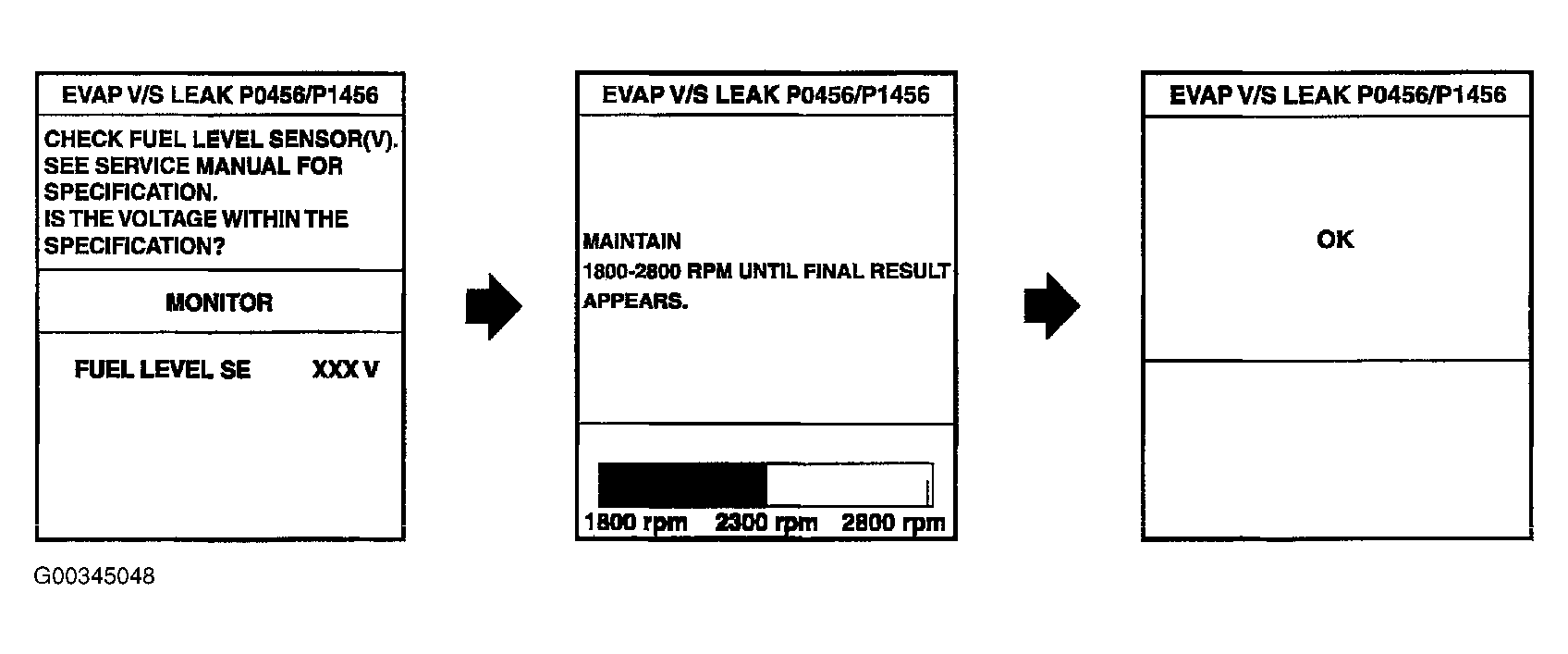

- Select EVAP V/S LEAK P0456/P1456 of EVAPORATIVE SYSTEM in DTC WORK SUPPORT mode with CONSULT-II.
Follow the instruction displayed.
- Make sure that OK is displayed.
If NG is displayed, Refer to DIAGNOSTIC PROCEDURE .
NOTE:- If the engine speed cannot be maintained within the range displayed on CONSULT-II screen, go to BASIC INSPECTION .
- Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.
