2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

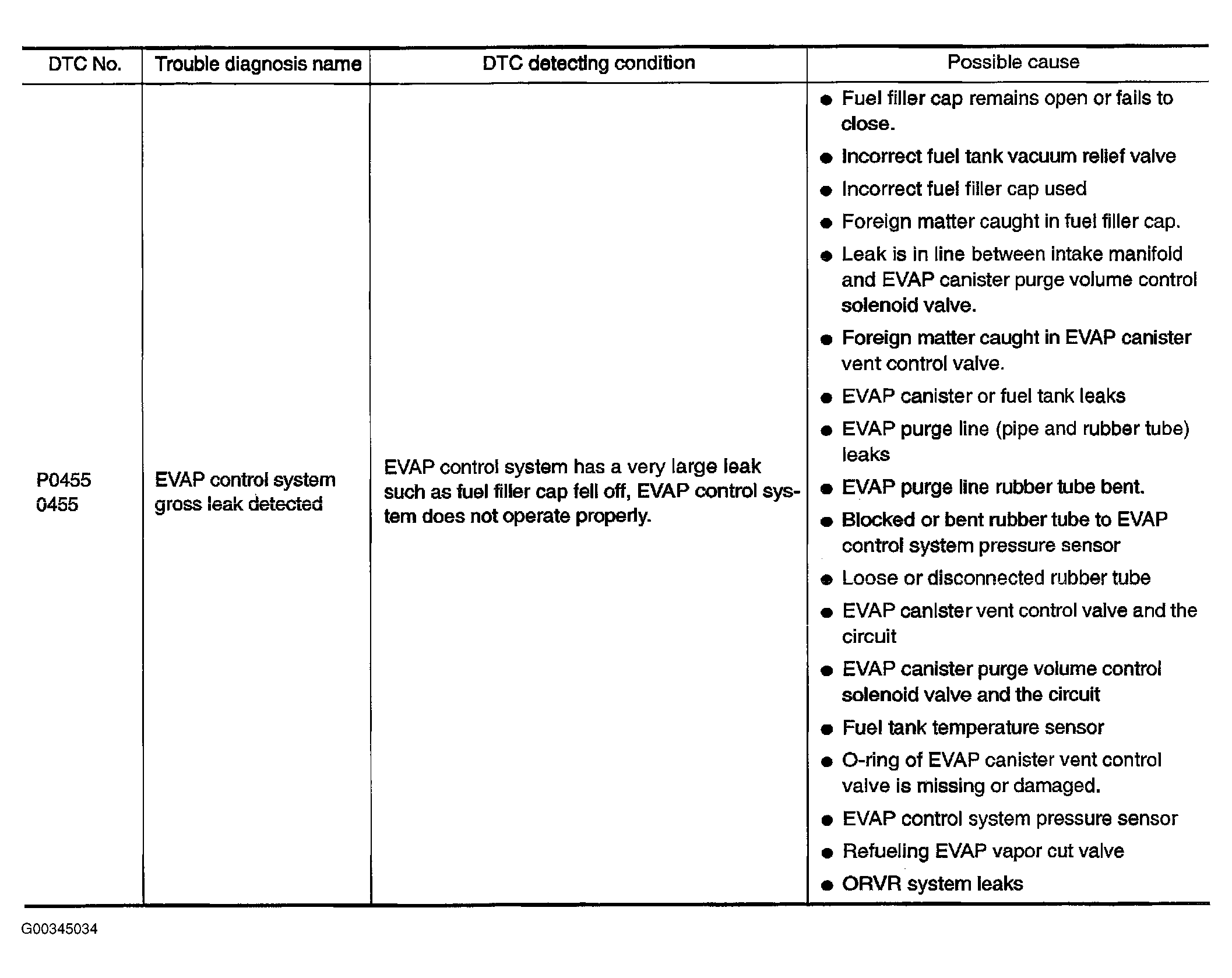

On Board Diagnosis Logic
This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.
For diagram of EVAP control system, see Figure .
