2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. Check EVAP Canister
    1. Turn ignition switch OFF.
    2. Check EVAP canister for cracks.

      OK or NG

      1. OK (With CONSULT-II): go to 2.
      2. OK (Without CONSULT-II): go to  3 .
      3. NG: Replace EVAP canister.

  2. Check Purge Flow

    With CONSULT-II

    1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP service port and install vacuum gauge. For the location of EVAP service port, Refer to EVAPORATIVE EMISSION LINE DRAWING  .
    2. Start engine and let it idle.
    3. Select PURG VOL CONT/V in ACTIVE TEST mode with CONSULT-II.
    4. Rev engine up to 2,000 RPM.
    5. Touch Qd and Qu on CONSULT-II screen to adjust PURG VOL CONT/V opening and check vacuum existence.

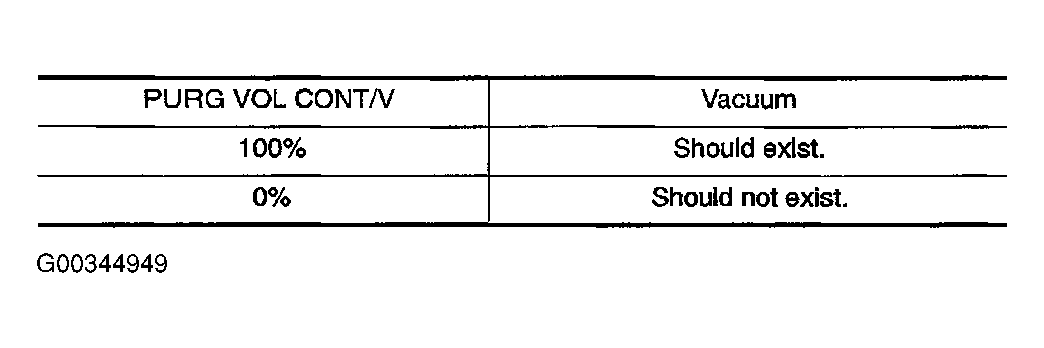

      Fig 1: Defining PURG VOL CONT/V (CONSULT-II)
      G00344949Courtesy of NISSAN MOTOR CO., U.S.A.
