Testing Condition
This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle .
With CONSULT-II
- Wait until engine COOLANT temperature is less than 90° C (194° F)
- Turn ignition switch ON.

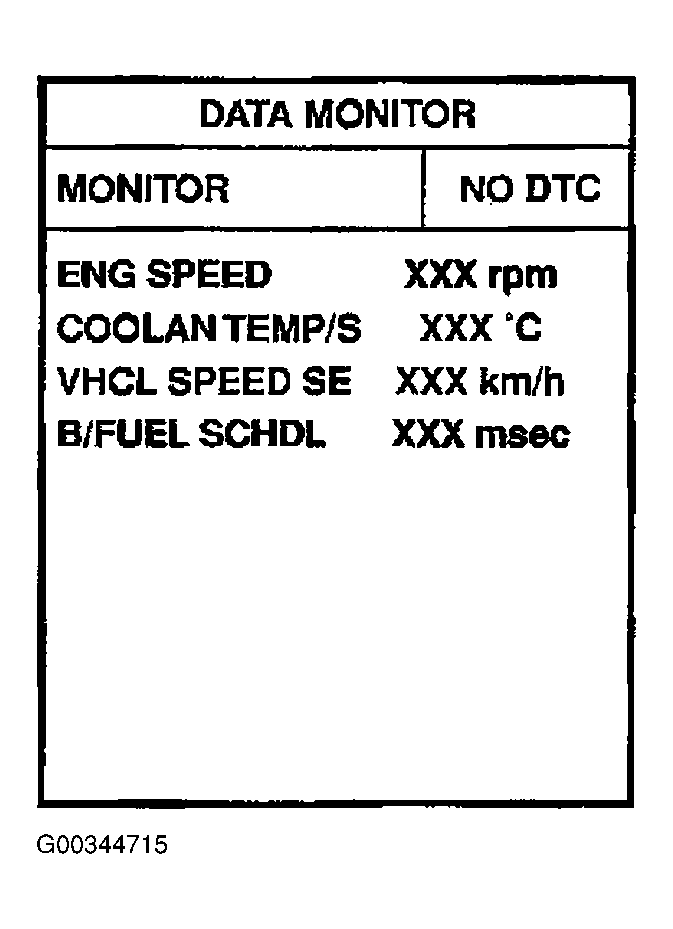

- Select DATA MONITOR mode with CONSULT-II.
- Check the engine COOLANT temperature.
- If the engine COOLANT temperature is not less than 90° C (194° F), turn ignition switch OFF and cool down engine.
- Perform the following steps before engine COOLANT temperature is above 90° C (194° F).
- Turn ignition switch ON.
- Select DATA MONITOR mode with CONSULT-II.
- Start engine.
- Hold vehicle speed at more than 70 km/h (43 MPH) for 100 consecutive seconds.
- If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
With GST
Follow the procedure With CONSULT-II above.
