Component Description
The intake air temperature sensor is built into mass air flow sensor. The sensor detects intake air temperature and transmits a signal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rise.
For mass air flow sensor & intake air temperature sensor location, see Figure and Figure .
Reference data

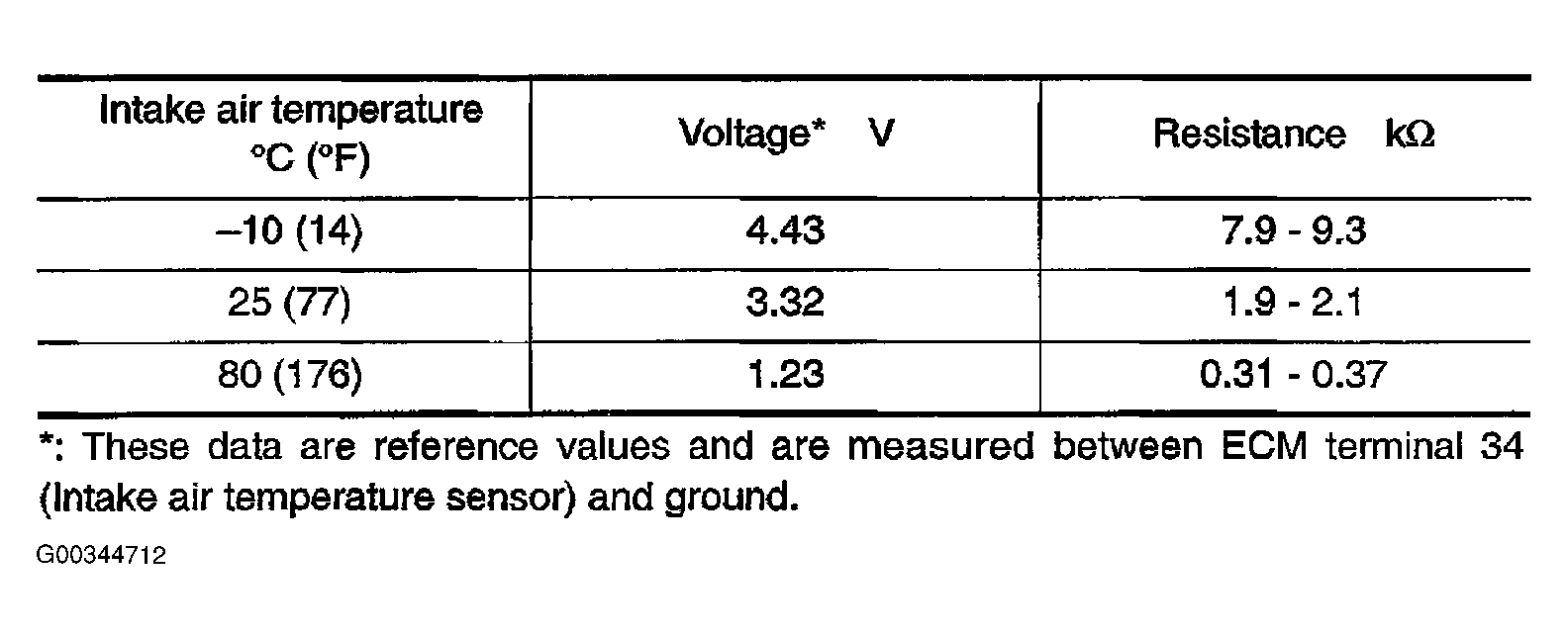

For thermistor specifications in graph format, see Figure .
