2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Engine COOLANT Temperature Sensor

Check resistance between engine COOLANT temperature sensor terminals 1 and 2.

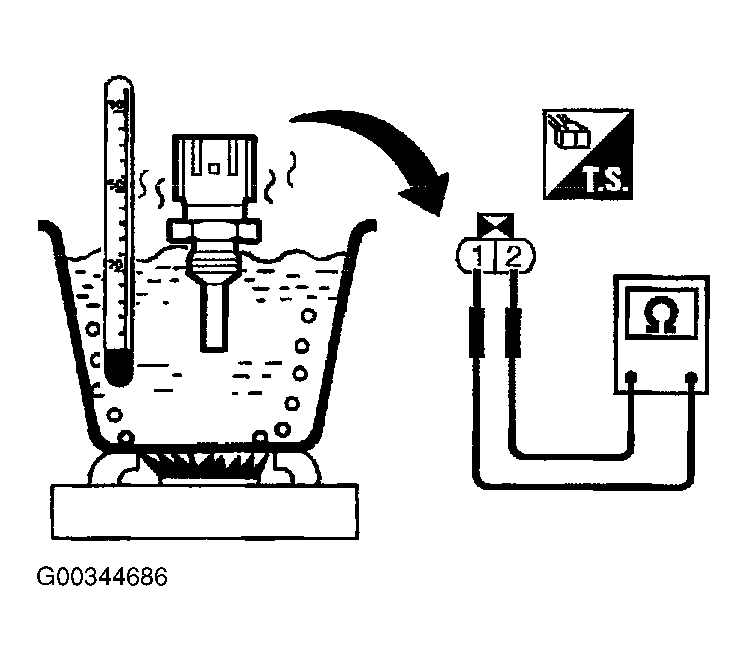

Fig 1: Testing Procedures To Verify Correct Engine COOLANT Temperature Sensor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

Reference data

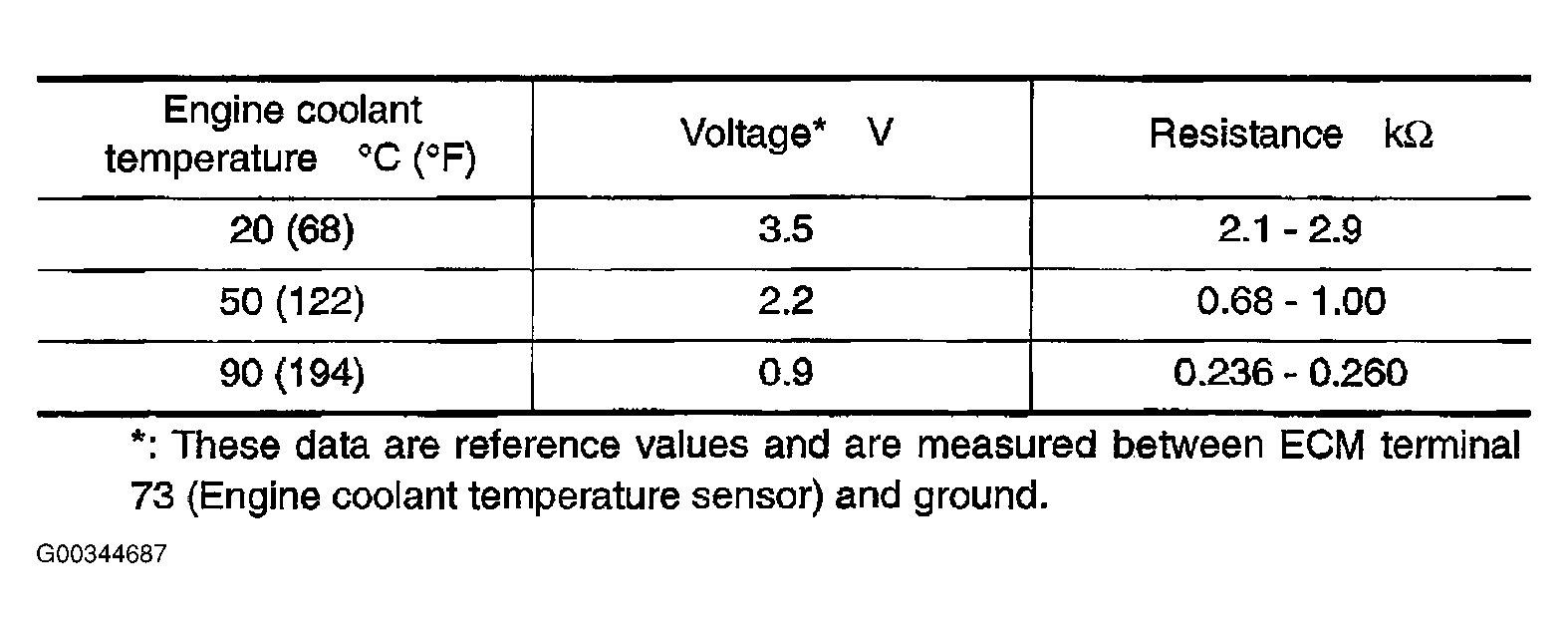

Fig 2: Engine COOLANT Temperature Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

For thermistor specifications in graph format, see Figure .
If NG, replace engine COOLANT temperature sensor.
