Component Description

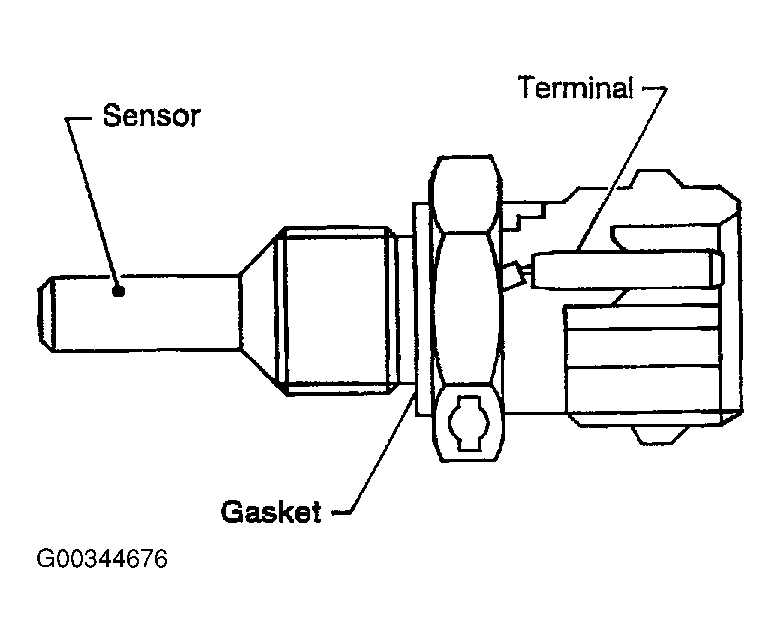

The engine COOLANT temperature sensor is used to detect the engine COOLANT temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine COOLANT temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

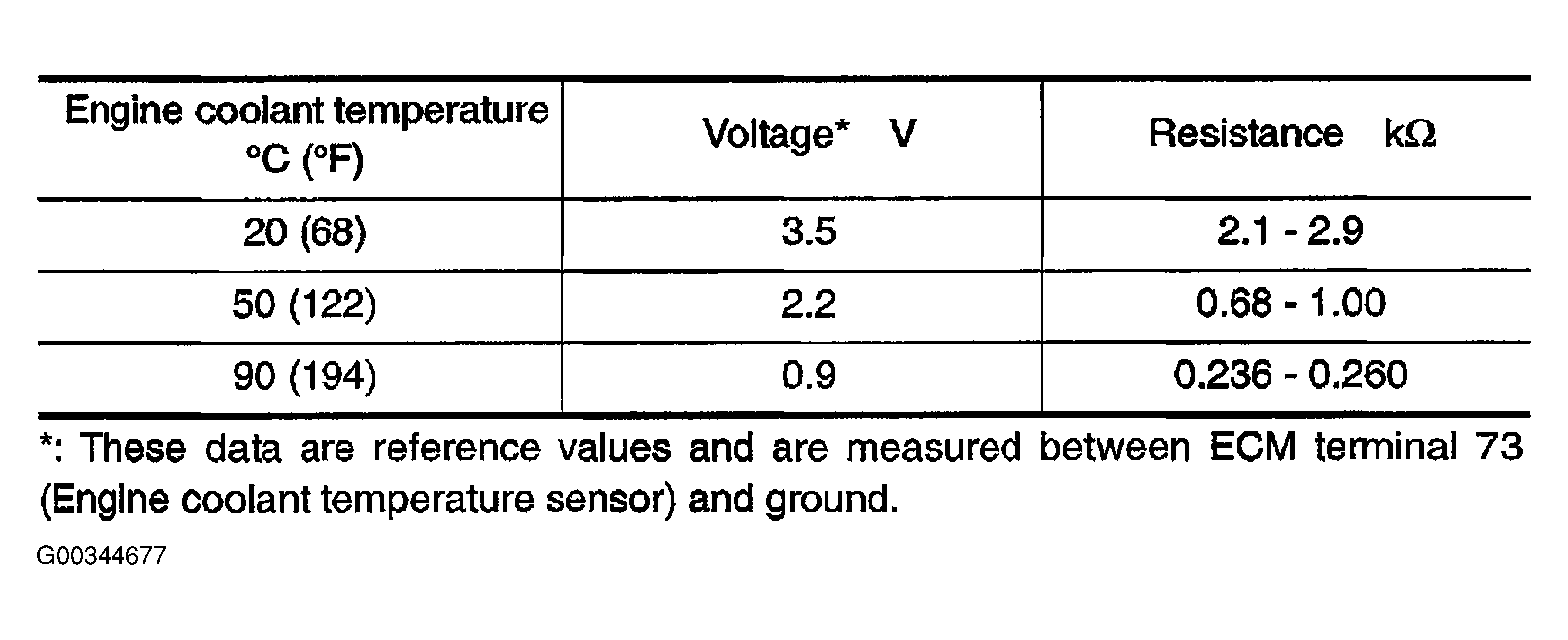

Reference data
For thermistor specifications in graph format, see Figure .
