Procedure For Malfunction B
With CONSULT-II
- Turn ignition switch ON.
- Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to DIAGNOSTIC PROCEDURE .
- Select DATA MONITOR mode with CONSULT-II.

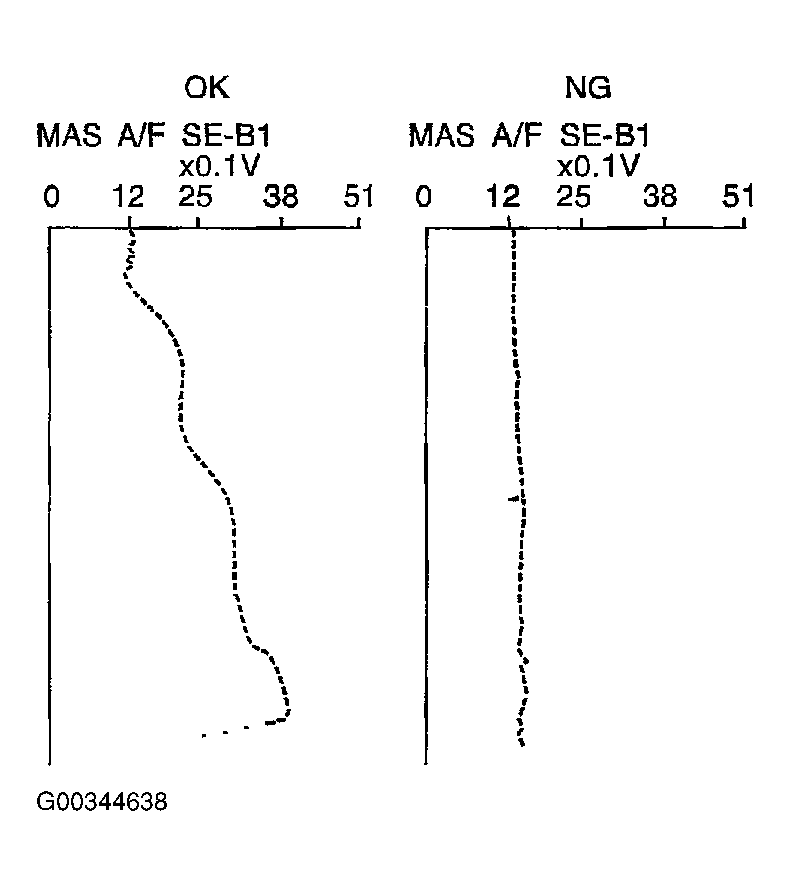

- Check the voltage of MAS A/F SE-B1 with DATA MONITOR.
- Increases engine speed to about 4,000 RPM.
- Monitor the linear voltage rise in response to engine speed increases.
If NG, go to DIAGNOSTIC PROCEDURE .
If OK, go to 7 .

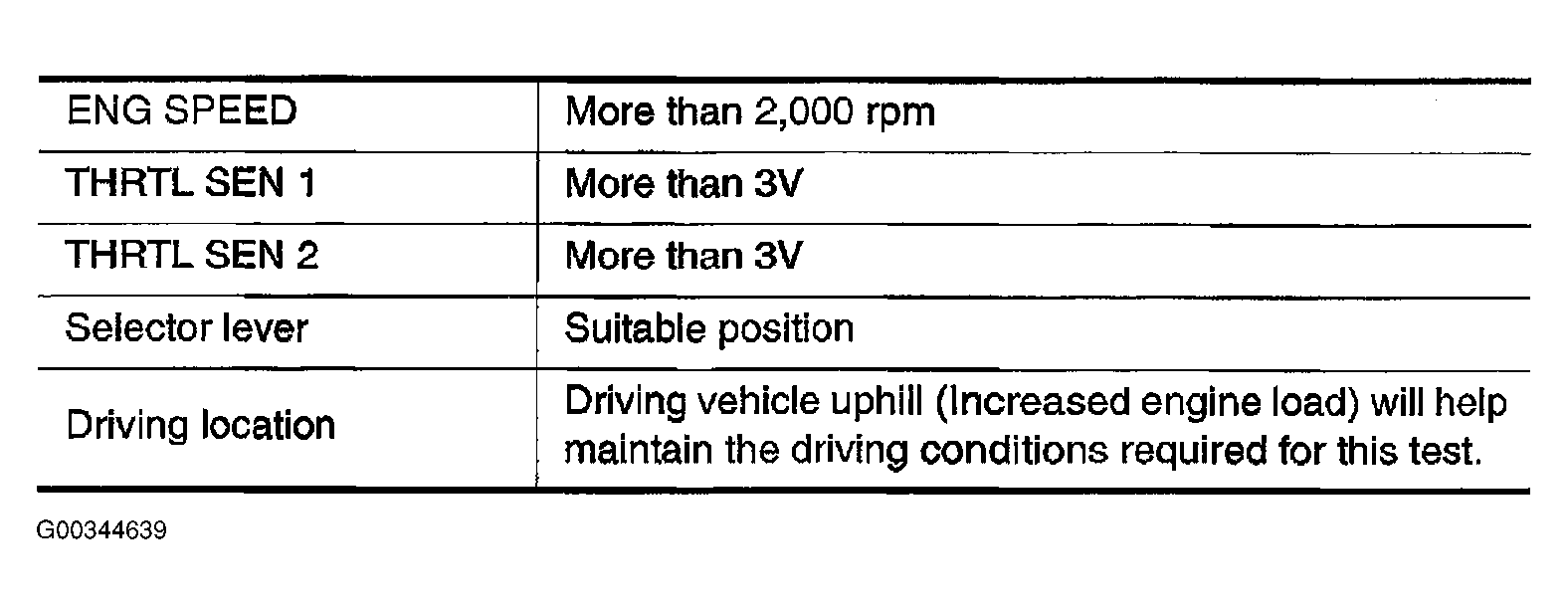

- Maintain the following conditions for at least 10 consecutive seconds.
