Diagnostic Procedure
- Check Overall Function

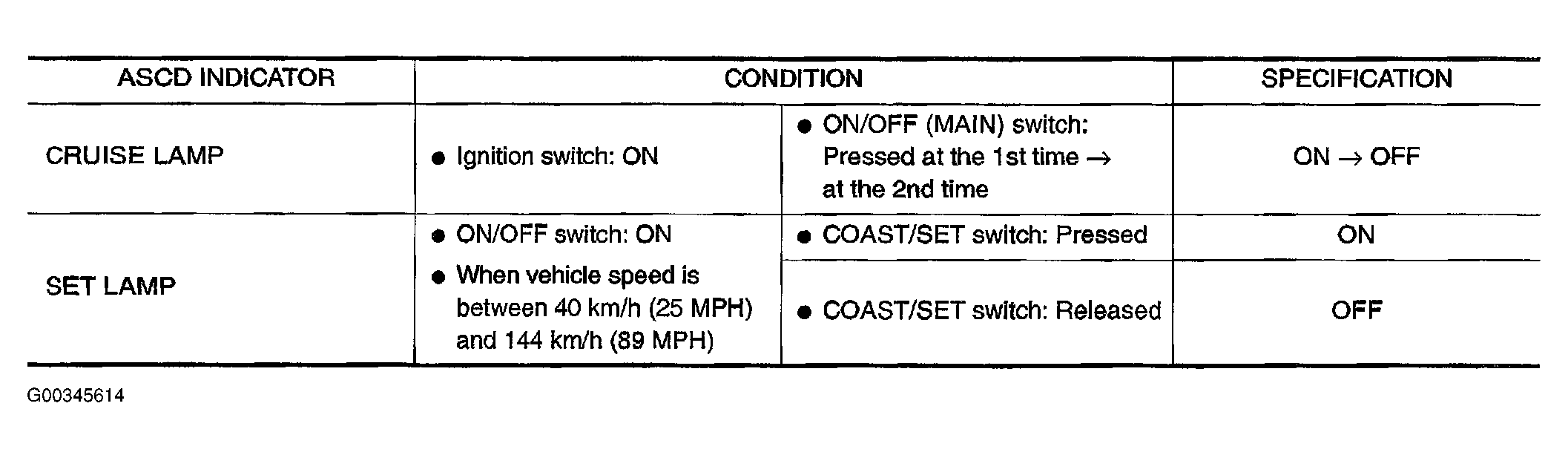

Check ASCD indicator under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Inspection end
- NG : go to 2.
- Check DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
- OK : go to 3.
- NG : Perform trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .
- Check DTC With Unified Meter And A/C AMP
Refer to SELF-DIAGNOSTIC RESULTS .
OK or NG
- OK : go to 4.
- NG : go to COMMUNICATION LINE INSPECTION .
- Check Intermittent Incident
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- Inspection end
