CONSULT-II Inspection Procedure: Notes
- Turn ignition switch "ON".

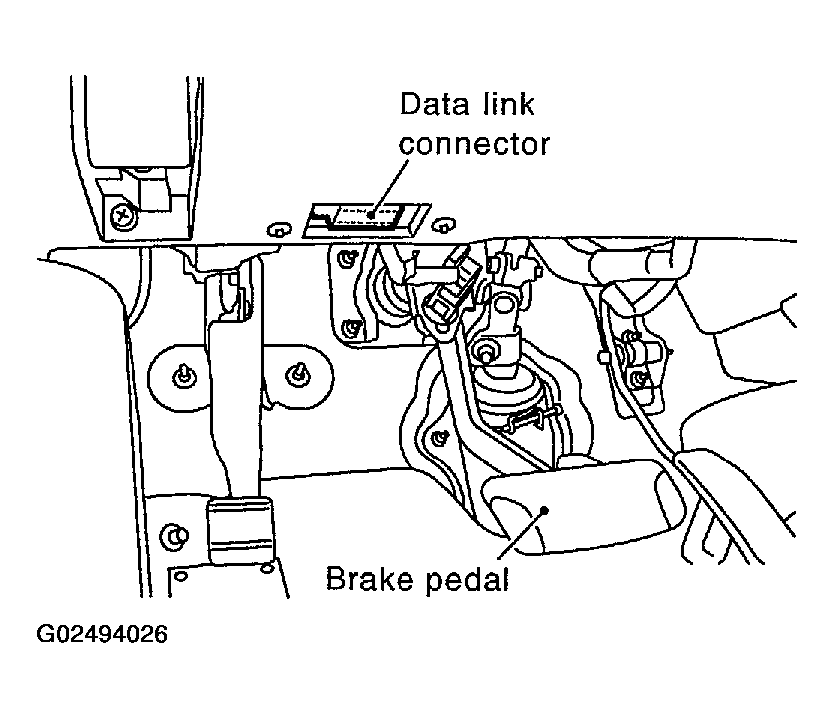

- Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.
- Turn ignition switch "ON".

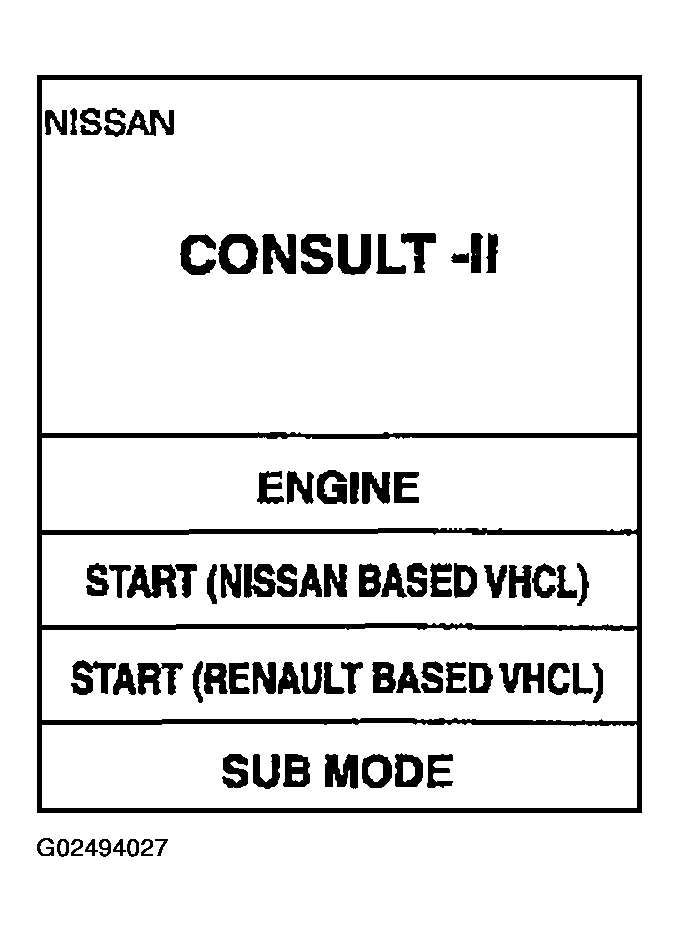

- Touch "START (NISSAN BASED VHCL)".

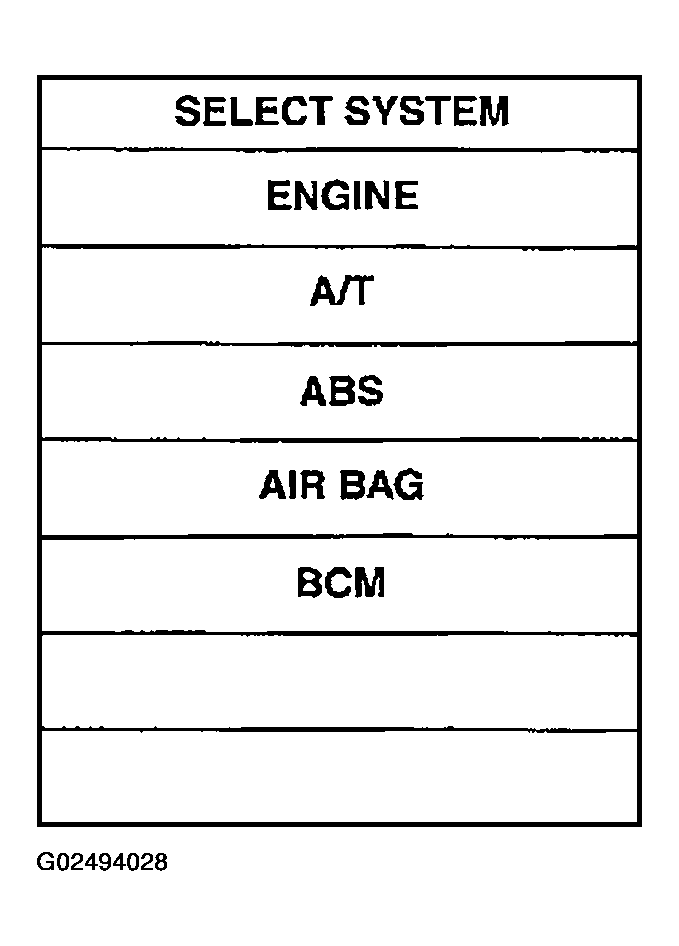

- Touch "BCM".
If "BCM" is not indicated, go to Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

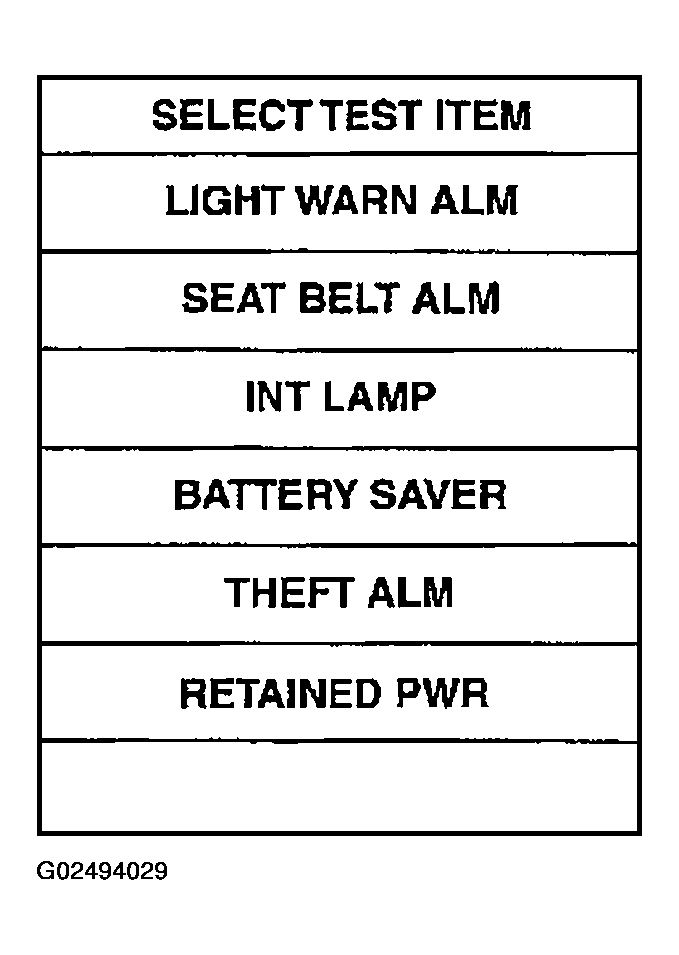

- Touch "RETAINED PWR".

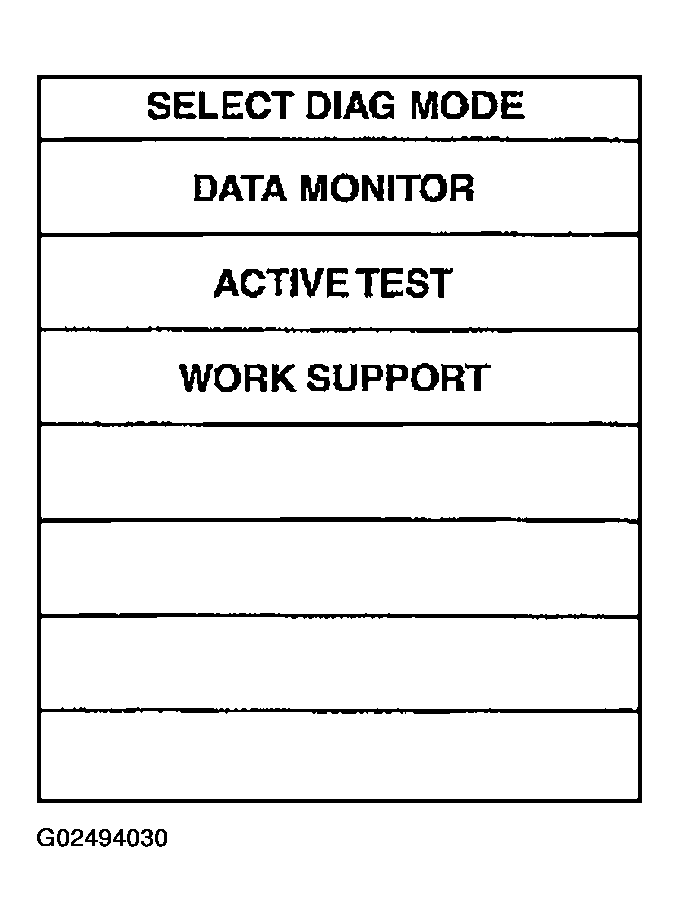

- Select diagnosis mode.
"ACTIVE TEST", "WORK SUPPORT" and "DATA MONITOR" are available.
