- BCM reads combination switch (light, wiper) status, and controls related systems such as head lamps and wipers, according to the results.
- BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5) and five input terminals (INPUT 1-5).
Operation description
- BCM activates transistors of output terminals (OUTPUT 1-5) periodically and, allows current to flow in turn.
- If any (1 or more) switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input terminals (INPUT 1-5) becomes active.
- At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When voltage of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects voltage change, and BCM determines that switch is ON.

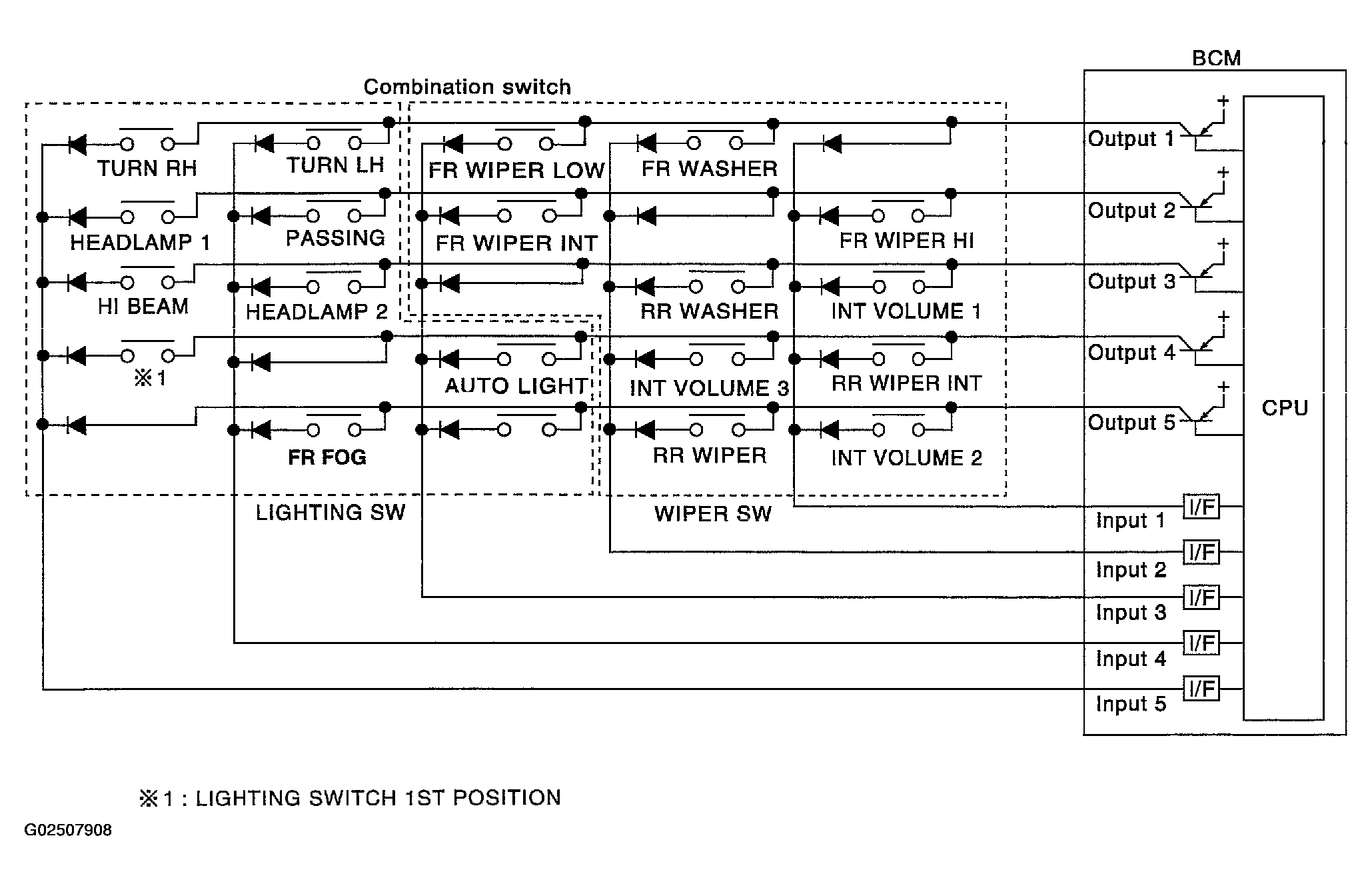

  Fig 1: Combination Switch Reading Function/BCM Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
BCM - Operation table of combination switches
- BCM reads operation status of combination switch using combinations shown in table below.

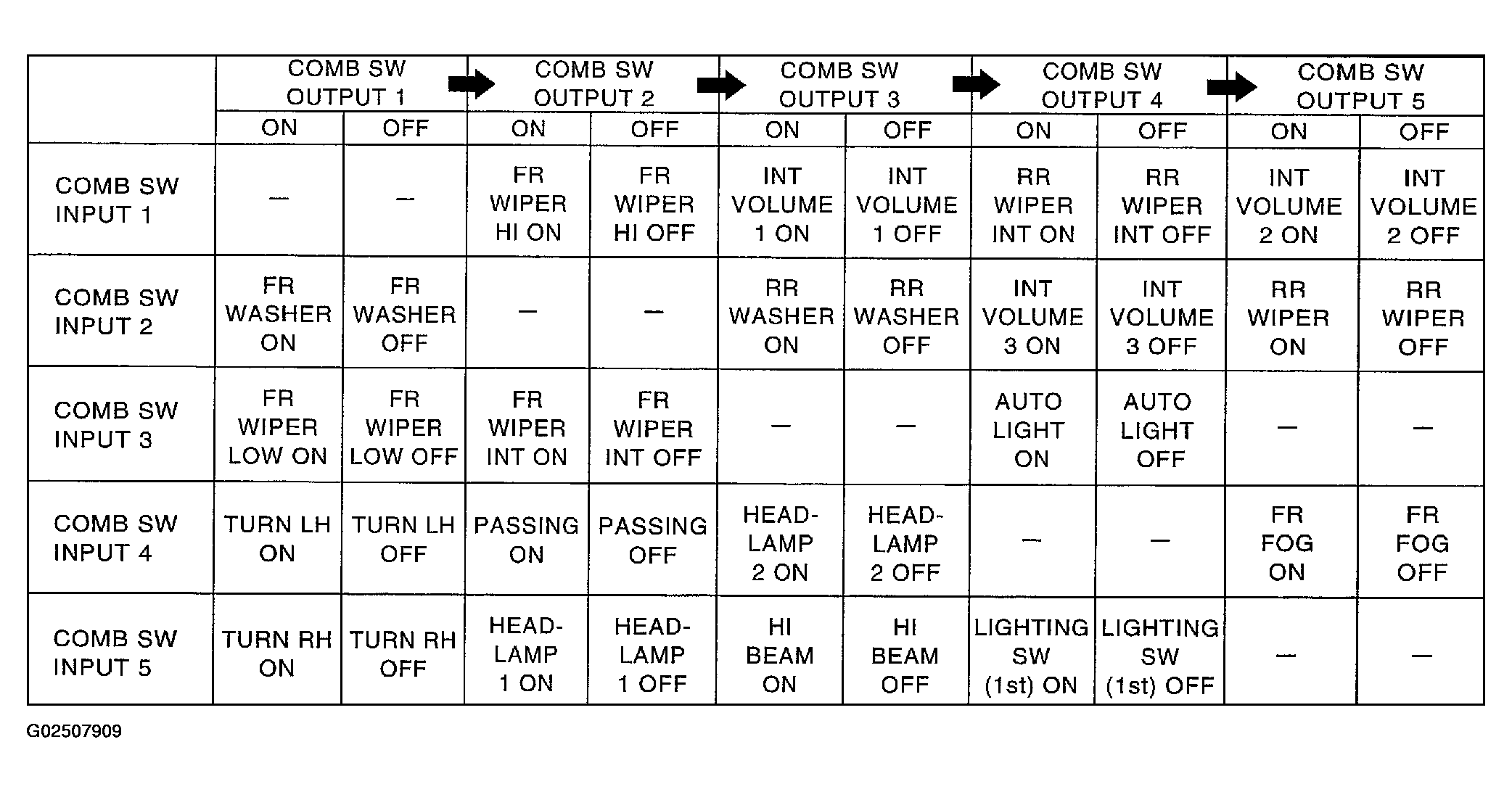

  Fig 2: Combination Switch Outputs (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
