2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

2. Check Unlock Sensor Circuit

Turn ignition knob LOCK position.
Disconnect Intelligent Key unit and front door lock assembly (driver side) connector.
Check continuity between Intelligent Key unit connector M34 terminal 28 (W/B) and front door lock assembly (driver side) connector D10 terminal 4 (W).
1. 28 (W/B) - 4 (W) : Continuity should exist.

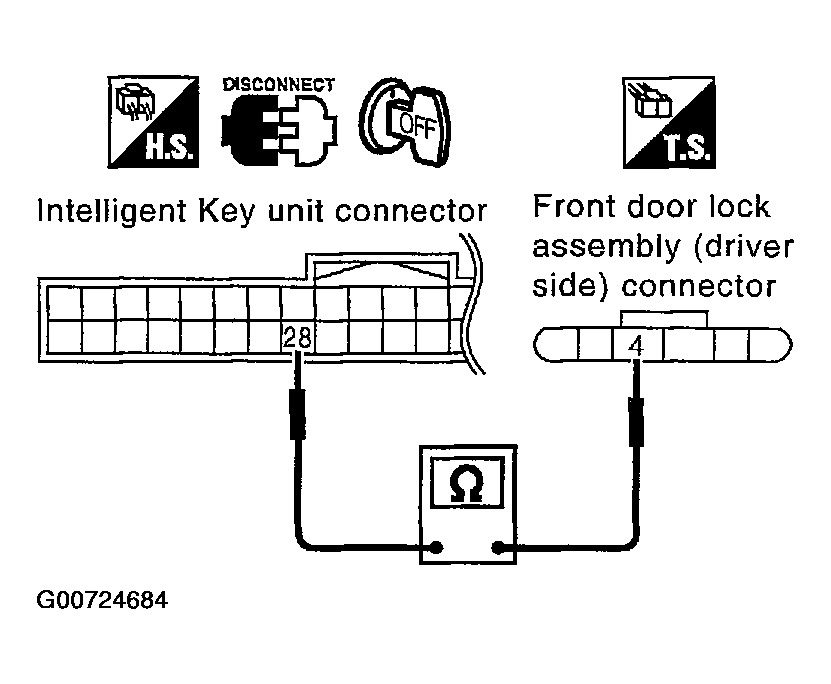

Fig 1: Checking Continuity Between Intelligent Key Unit Connector M34 Terminal 28 And Front Door Lock Assembly (Driver Side) Connector D10 Terminal 4

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.

NG : Repair or replace harness between Intelligent Key unit and front door lock assembly (driver side).
