2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE
2. Check Key Switch Power Supply Circuit
- Remove mechanical key from ignition knob.
- Disconnect key switch and ignition knob switch connector.
- Check voltage between key switch and ignition knob switch connector M22 terminal 3 (L/R) and ground.
- 3 (L/R) - Ground : Battery voltage

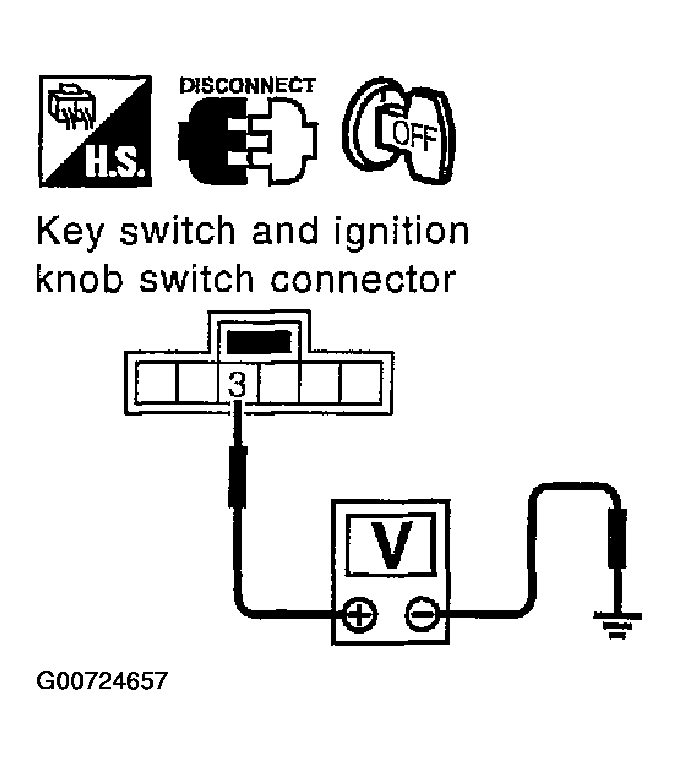

Fig 1: Checking Voltage Between Key Switch And Ignition Knob Switch Connector M22 Terminal 3 (L/R) And Ground
OK or NG
OK : GO TO 3.
NG : Repair or replace key switch power supply circuit.
