2004 Infiniti FX35 AWDFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. Check Ground Connections
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. See Figure. Refer to GROUND INSPECTION .

    OK or NG

    1. OK: Go to 2.
    2. NG: Repair or replace ground connections.

  2. Check ASCD Steering Switch Circuit For Open And Short

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select MAIN SW, RESUME/ACC SW, SET SW and CANCEL SW in DATA MONITOR mode with CONSULT-II.
    3. Check each item indication under the following conditions.

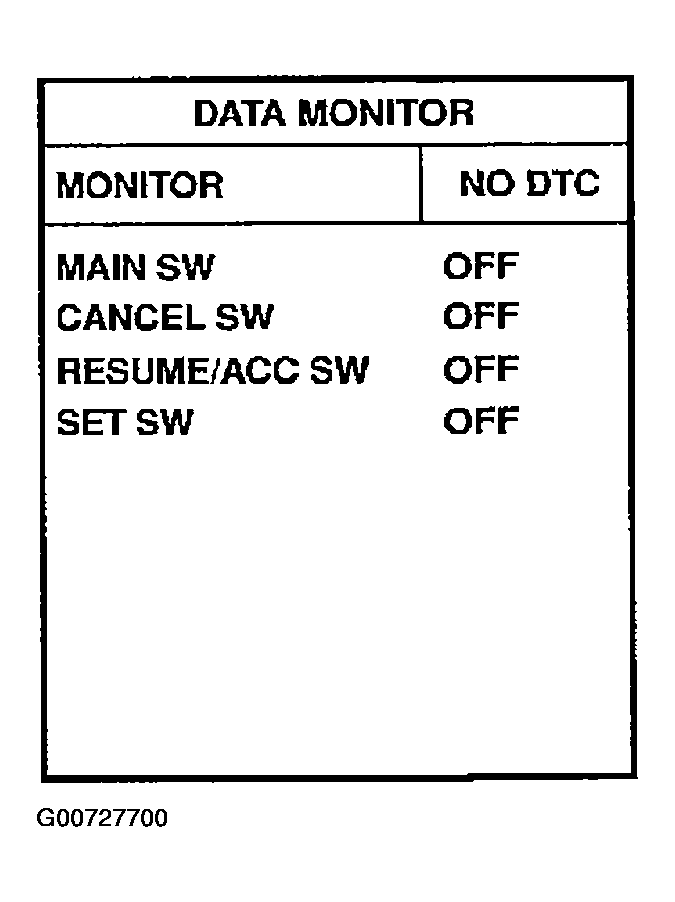

      Fig 1: Testing ASCD Steering Switch Circuit (CONSULT-II)
      G00727700Courtesy of NISSAN MOTOR CO., U.S.A.
