Testing Condition
Step 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.
With CONSULT-II
- Start engine (TCS switch or VDC switch OFF).
- Read VHCL SPEED SE in DATA MONITOR mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, Go to DIAGNOSTIC PROCEDURE .
If OK, Go to following step.

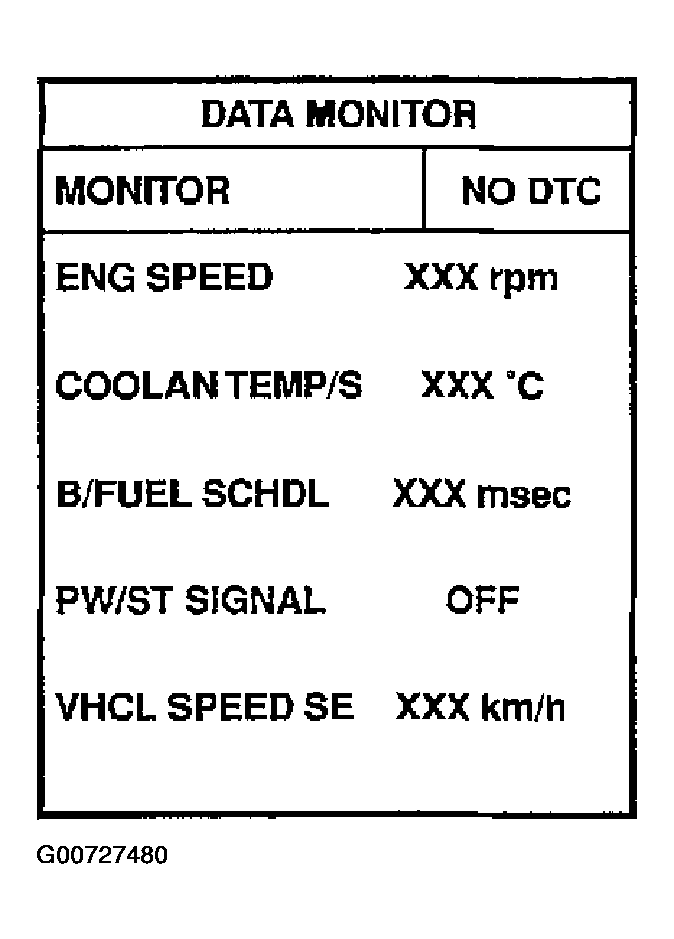

- Select DATA MONITOR mode with CONSULT-II.
- Warm engine up to normal operating temperature.

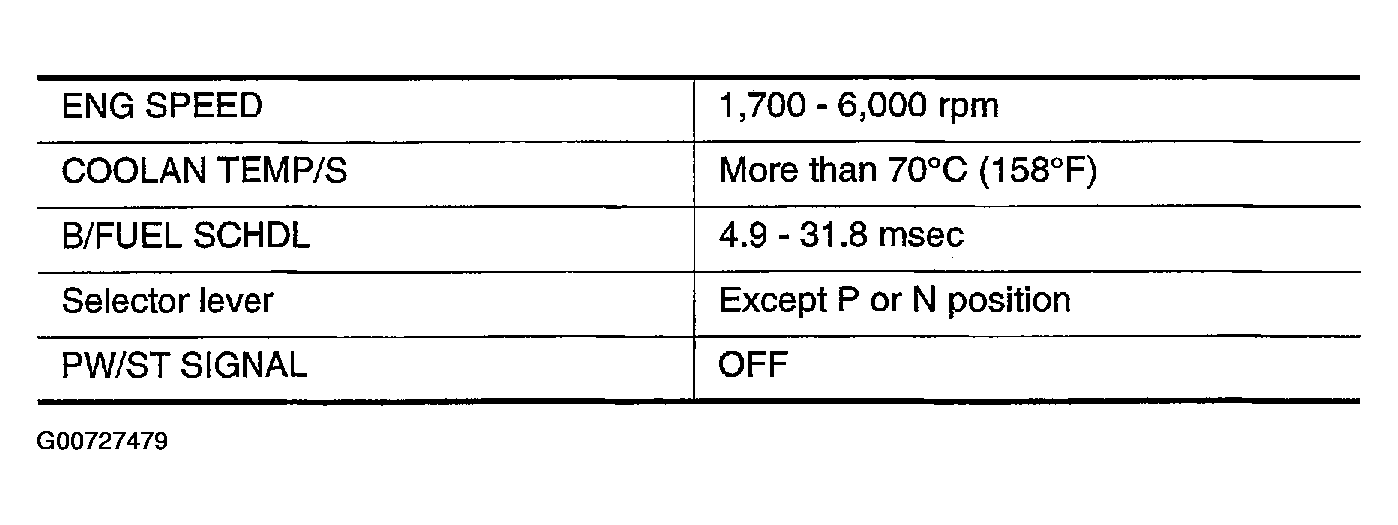

- Maintain the following conditions for at least 60 consecutive seconds.
- If 1st trip DTC is detected, Go to DIAGNOSTIC PROCEDURE .
