Component Description
The Fuel Tank Temperature (FTT) sensor is used to detect the fuel temperature inside the fuel tank. See Figure. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases. See Figure.

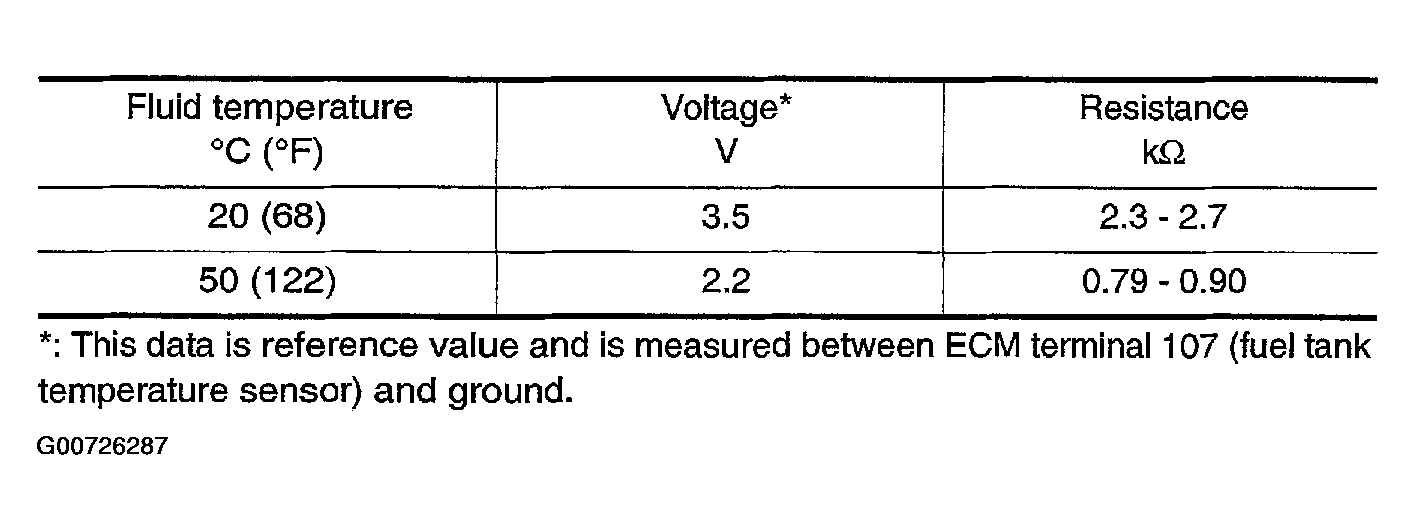

- < Reference data >
