2004 Infiniti FX35 AWDFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. Check Overall Function-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select BRAKE SW1 in DATA MONITOR mode with CONSULT-II. See Figure.
    3. Check BRAKE SW1 indication under the following conditions. See Figure.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions. See Figure and Figure.

    OK or NG

    1. OK: Go to 2.
    2. NG: Go to  3.

  2. Check Overall Function-II

    With CONSULT-II

    Check BRAKE SW2 indication in DATA MONITOR mode. See Figure and Figure.

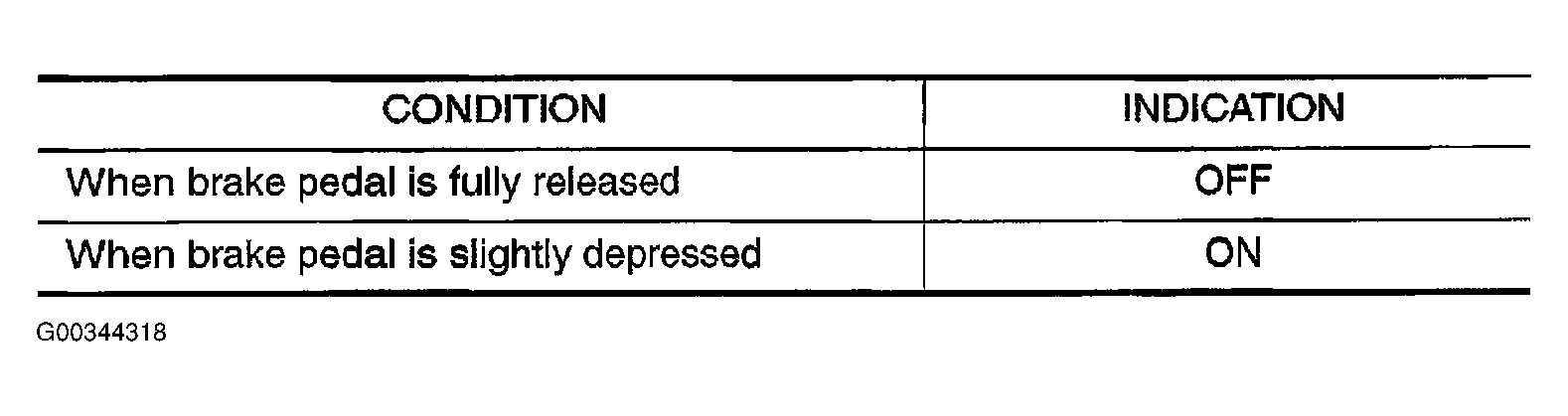

    Fig 1: Brake SW2 Condition & Indication Table
    G00344318Courtesy of NISSAN MOTOR CO., U.S.A.
