2004 Infiniti FX35 AWDFACTORY OEM SERVICE PROCEDURE

1. Check Key Switch Input Signal

With CONSULT-II

Check ignition key switch "KEY ON SW" in "DATA MONITOR" mode with CONSULT-II.

When key is inserted in ignition key cylinder
1. KEY ON SW : ON
When key is removed from ignition key cylinder
1. KEY ON SW : OFF

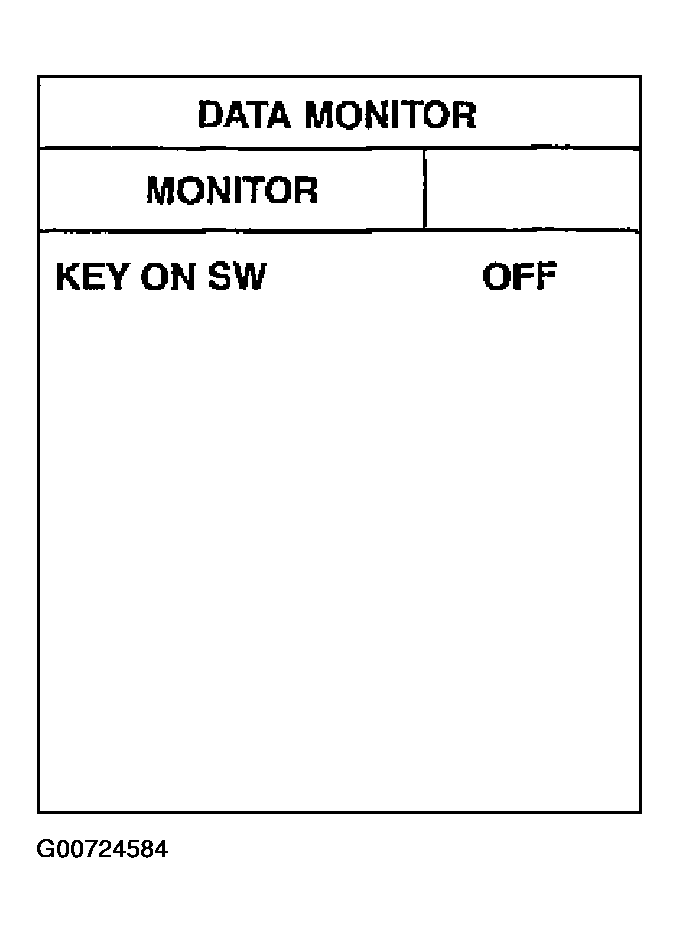

  Fig 1: Check Ignition Key Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M3 terminal 37 (B/W) and ground.

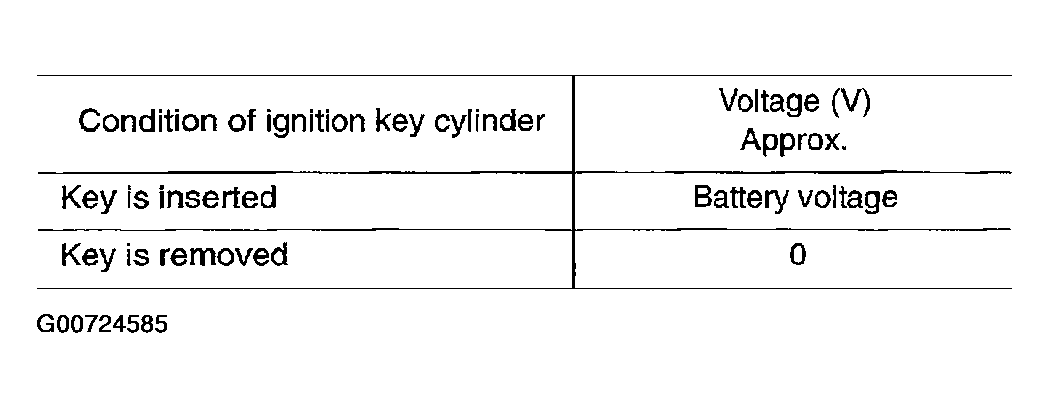

Fig 2: Voltage Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.
