Driver Door Control Unit Circuit Check
- POWER SUPPLY CIRCUIT CHECK
- Turn ignition switch OFF.
- Disconnect driver door control unit (LCU01) connector.

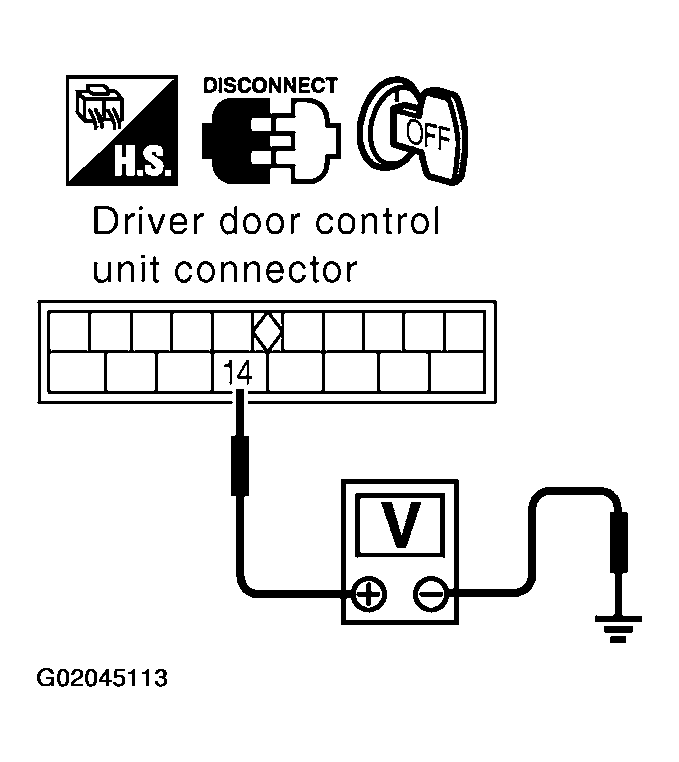

- Check voltage between driver door control unit (LCU01) connector D8 terminal 14 and ground.
- 14 (Y/G) - Ground : Battery voltage
OK or NG
- OK >> GO TO 2.
- NG >> Check the following.
- 40A fusible link (letter H. located in fuse and fusible link box).
- Harness for open or short between driver door control unit (LCU01) and fuse.
- GROUND CIRCUIT CHECK

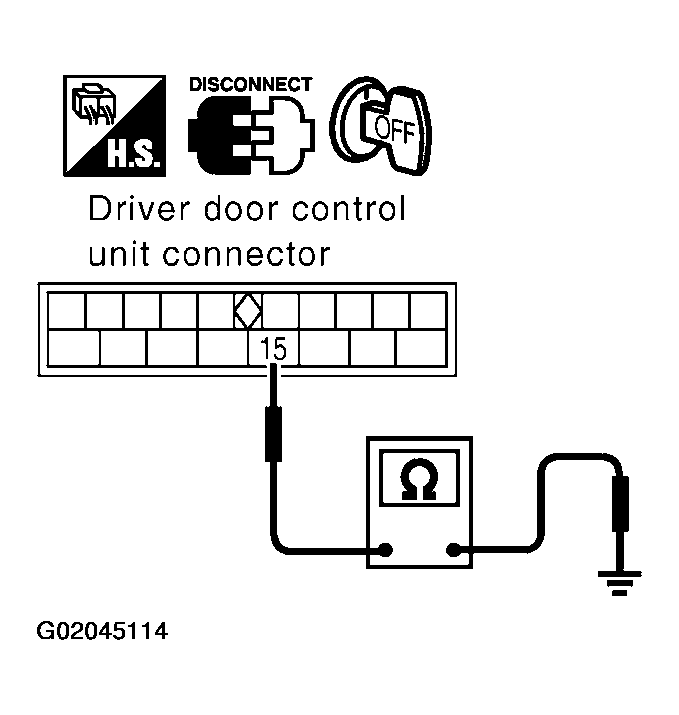

Check continuity between driver door control unit (LCU01) connector D8 terminal 15 and ground.
- 15 (B) - Ground : Continuity should exist.
OK or NG
- OK >> INSPECTION END.
- NG >> Repair or replace harness.
