2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Repair For Component Parts: Disassembly: Notes

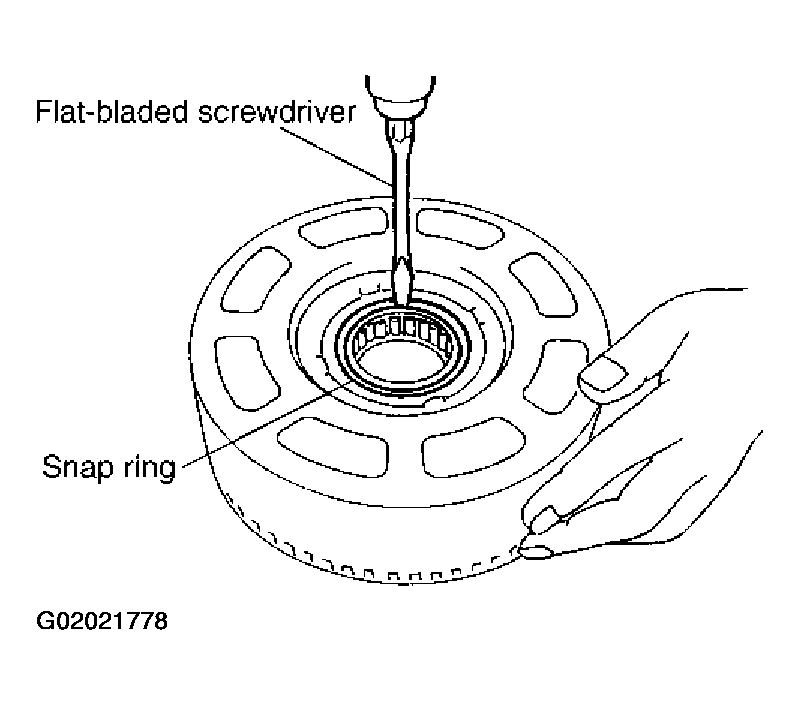

Using a flat-bladed screwdriver, remove snap ring from front sun gear.

Fig 1: Removing Snap Ring From Front Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

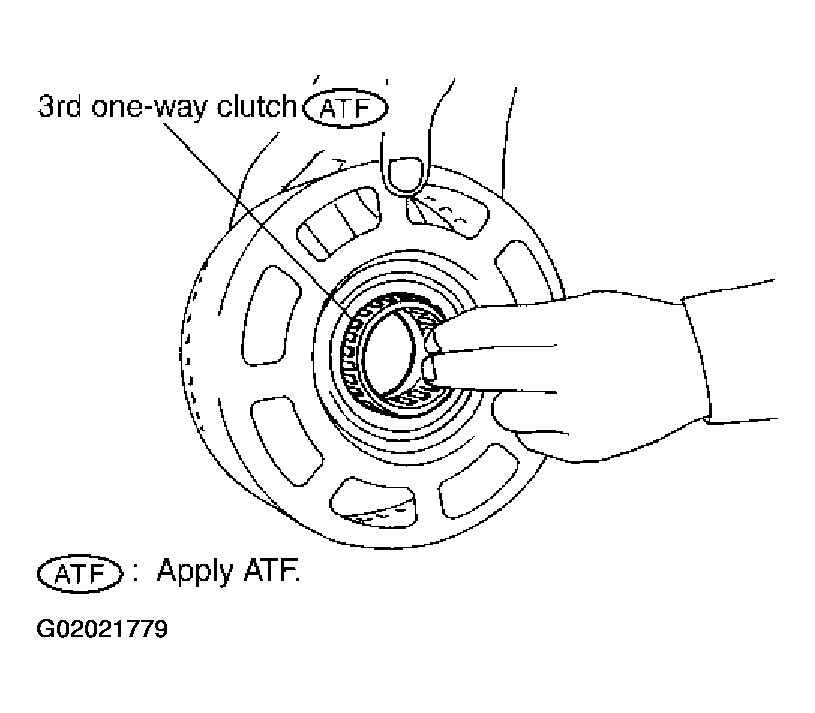

Remove 3rd one-way clutch from front sun gear.

Fig 2: Removing 3rd One-Way Clutch From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove front carrier assembly from rear internal gear.

Fig 1: Removing Front Carrier Assembly From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

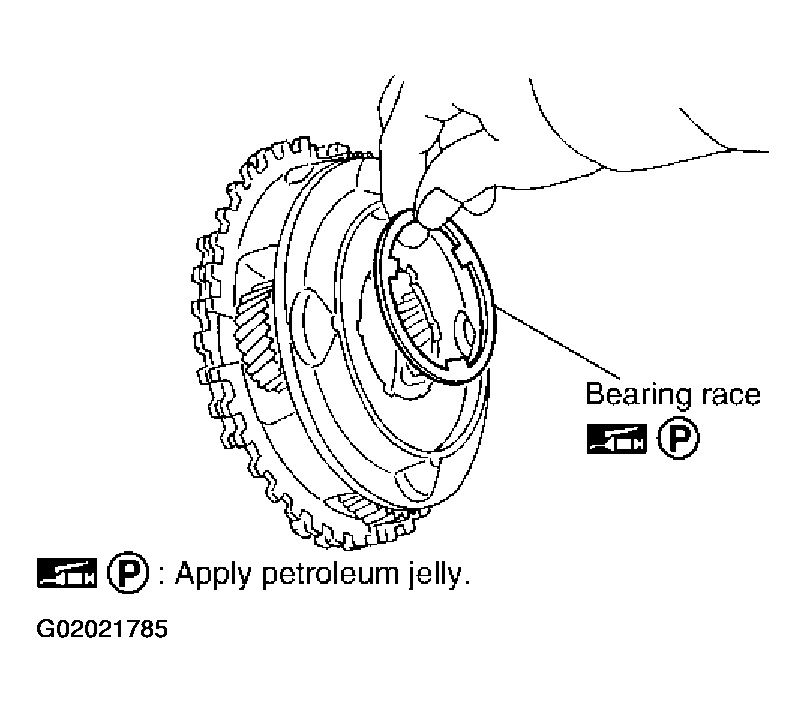

1. Remove bearing race from front carrier.

  Fig 2: Removing Bearing Race From Front Carrier
  Courtesy of NISSAN MOTOR CO., U.S.A.

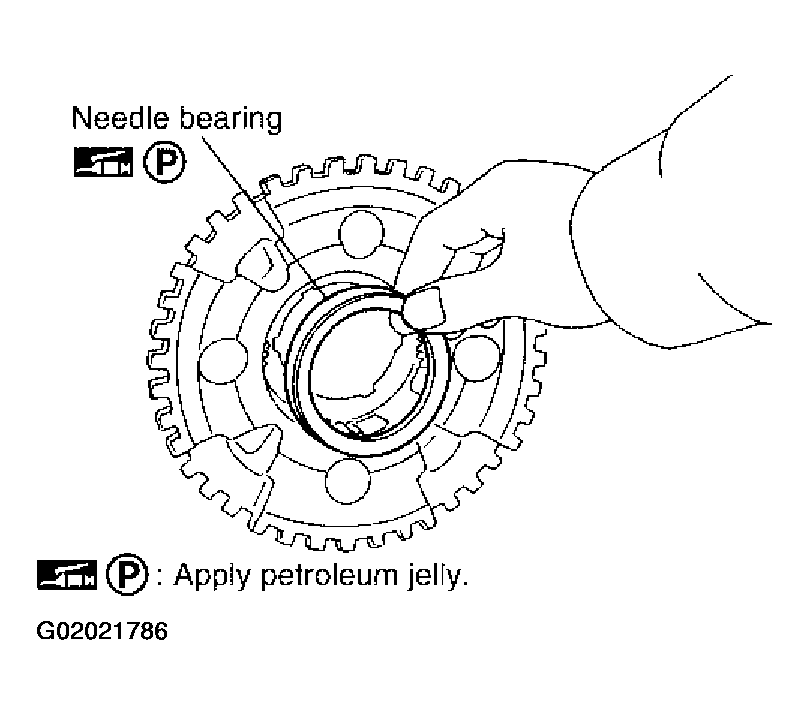

2. Remove needle bearing from front carrier.

  Fig 3: Removing Needle Bearing From Front Carrier
  Courtesy of NISSAN MOTOR CO., U.S.A.

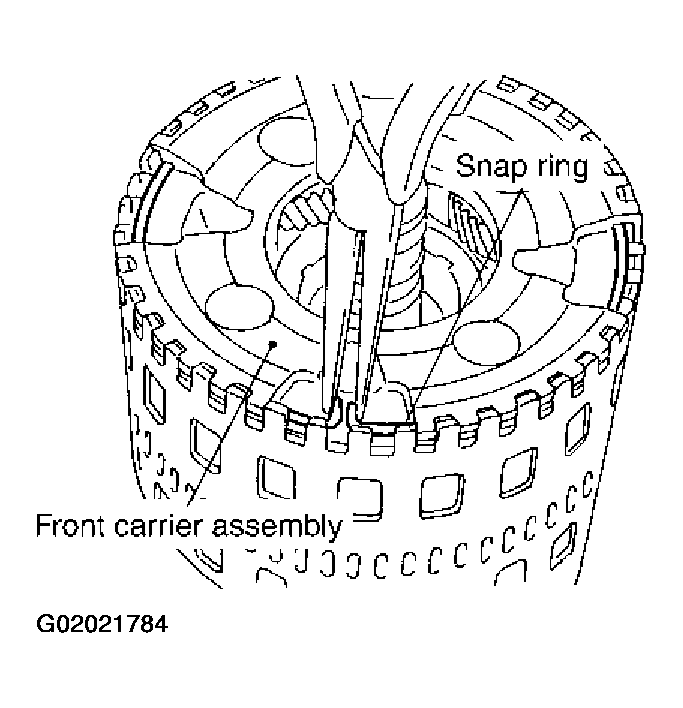

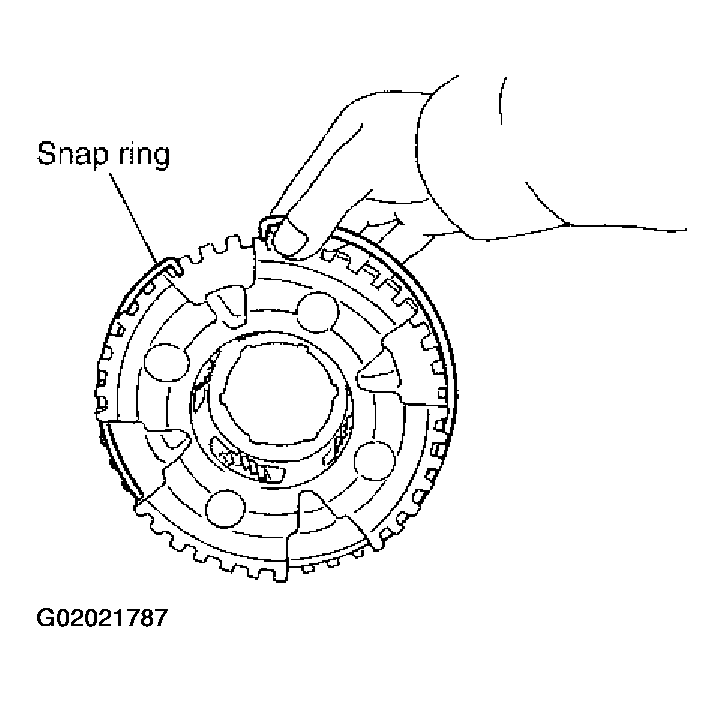

3. Remove snap ring from front carrier.

  Fig 4: Removing Snap Ring From Front Carrier
  Courtesy of NISSAN MOTOR CO., U.S.A.

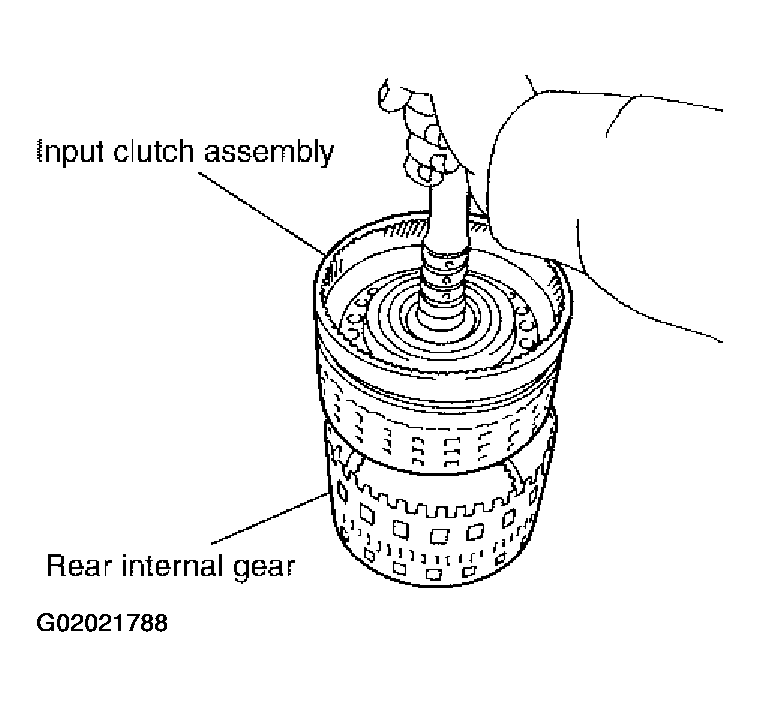

Remove input clutch assembly from rear internal gear.
1. Remove O-ring and seal rings from input clutch assembly.

  Fig 5: Removing O-Ring & Seal Rings From Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

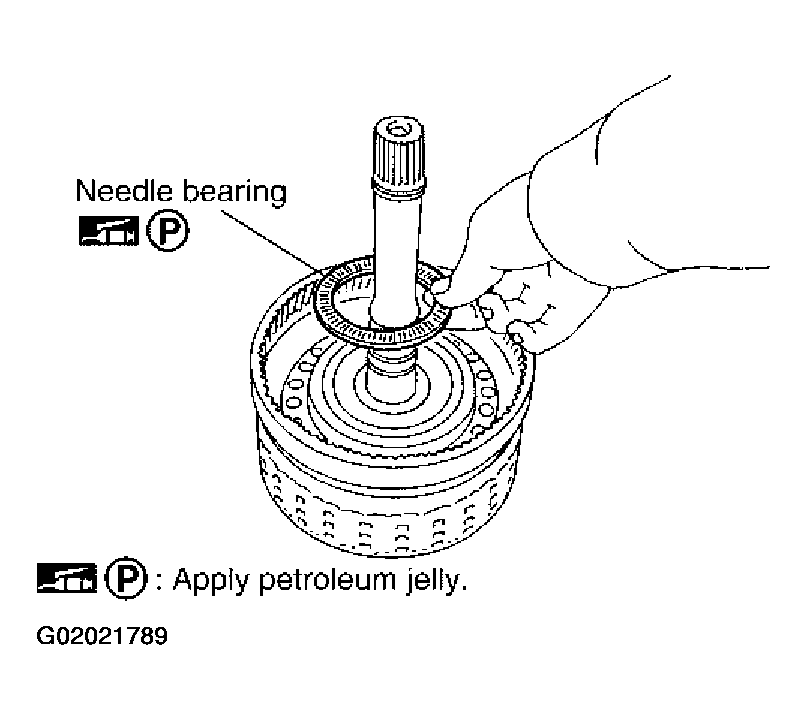

2. Remove needle bearing from input clutch assembly.

  Fig 6: Removing Needle Bearing From Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

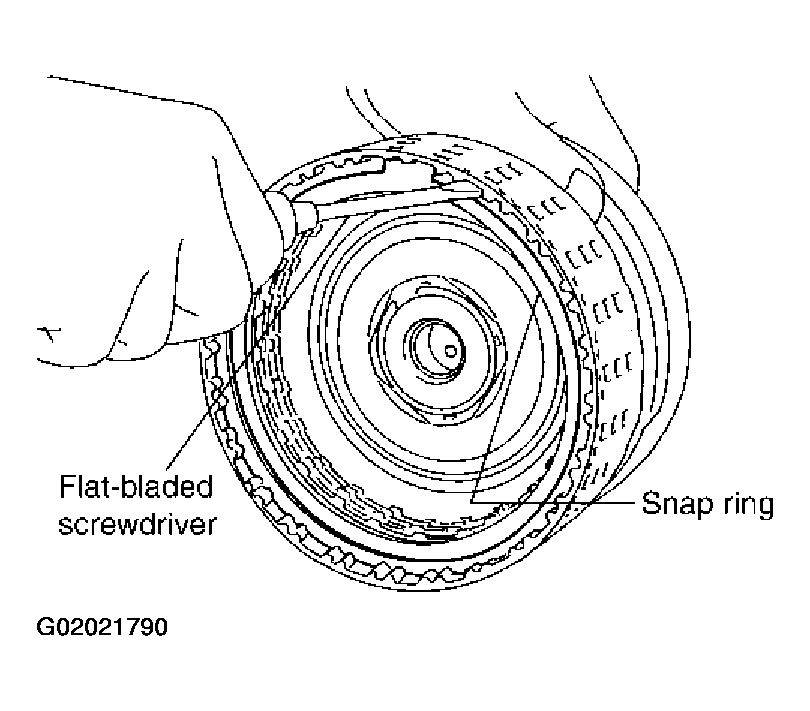

3. Using a flat-bladed screwdriver, remove snap ring from input clutch drum.

  Fig 7: Removing Snap Ring From Input Clutch Drum
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove drive plate, driven plate and retaining plate from input clutch drum.
