2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE
Control Valve Assembly: Installation

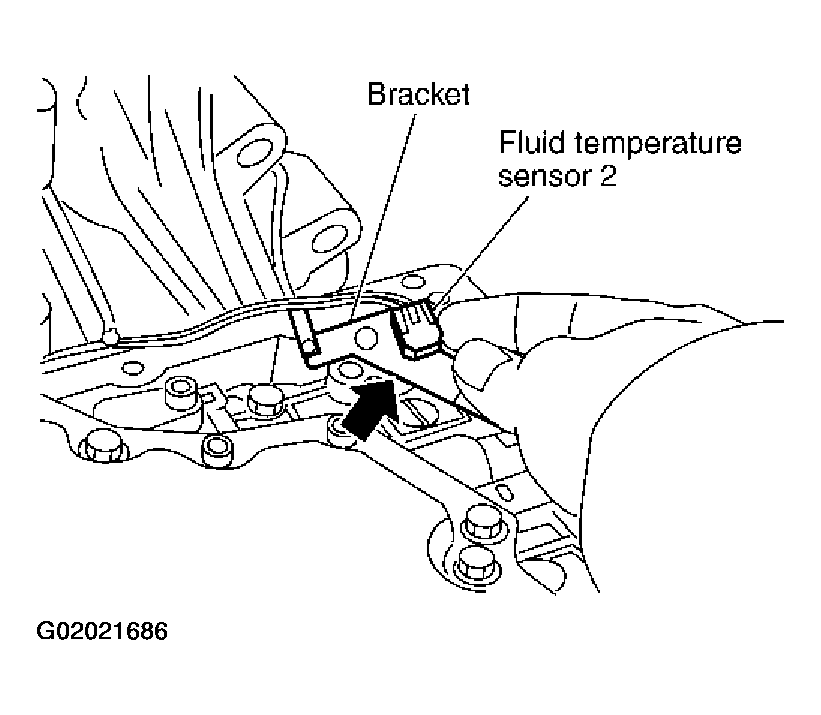

- Install fluid temperature sensor 2 in bracket.

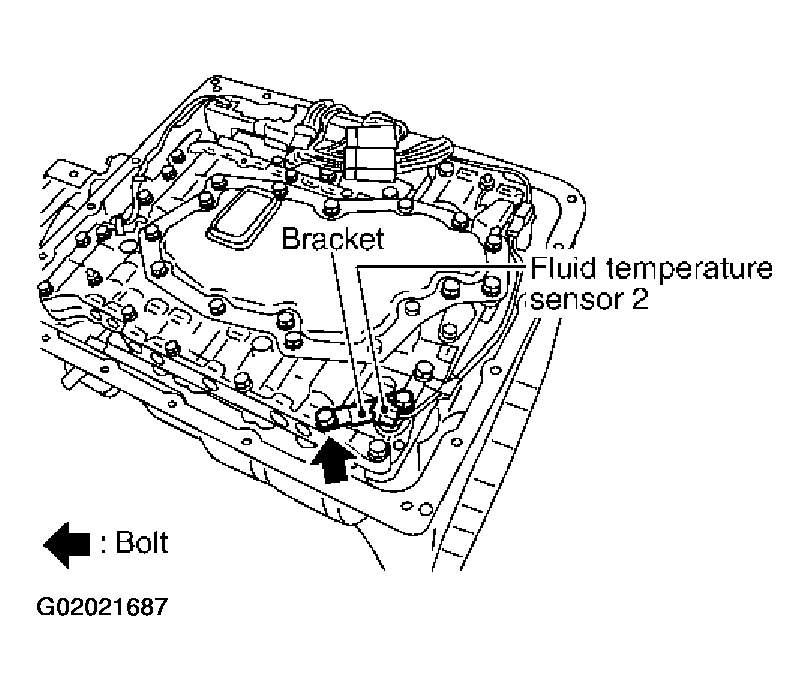

- Install fluid temperature sensor 2 in control valve assembly. (With bracket.)
- 7.9 N.m (0.81 kg-m, 70 in-lb)
- Install control valve assembly.
- Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
- Make sure that turbine sensor securely installs turbine sensor hole.
- Assemble it so that manual valve cutout is engaged with manual plate projection.
CAUTION:
