2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK DTC

    With CONSULT-II

    1. Turn ignition switch to "ON" position. (Do not start engine.)
    2. Select "SELF DIAG RESULTS" mode for "A/T" with CONSULT-II.
    3. Touch "ERASE".
    4. Turn ignition switch to "OFF" position and wait at least 10 seconds.
    5. Perform DTC confirmation procedure, "CONFIRMATION PROCEDURE ".

    Is the "TCM-RAM" displayed again?

    YES >> Replace TCM.

    NO >> INSPECTION END

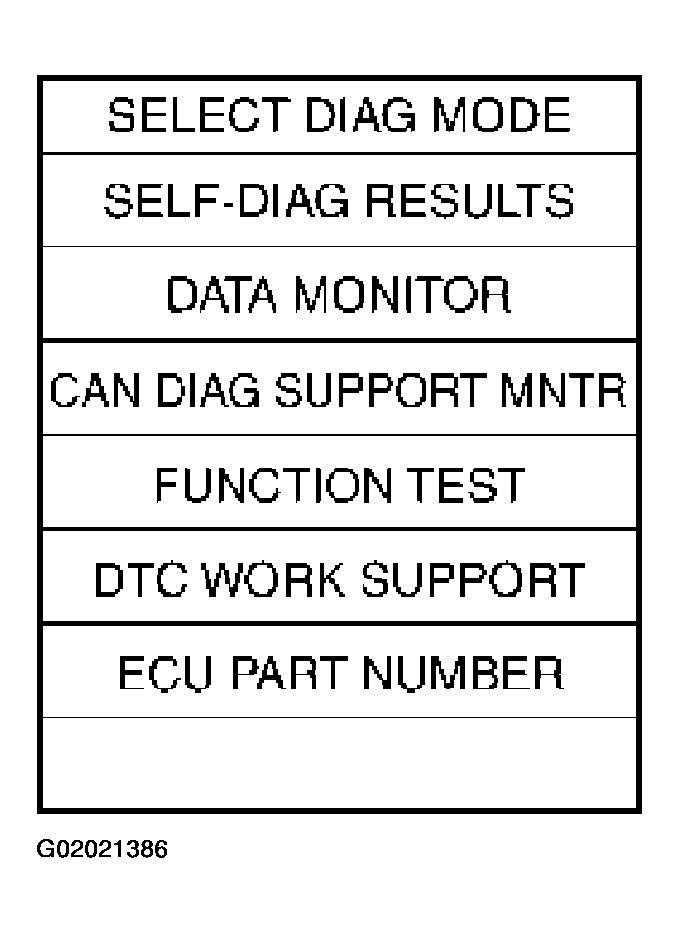

    Fig 1: Consult II Self Diagnostic Mode Display
    G02021386Courtesy of NISSAN MOTOR CO., U.S.A.
