2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Specifications & Procedures: Specifications

Use illustrations for front and rear wheel alignment specifications. See Fig 1 and Fig 2 .

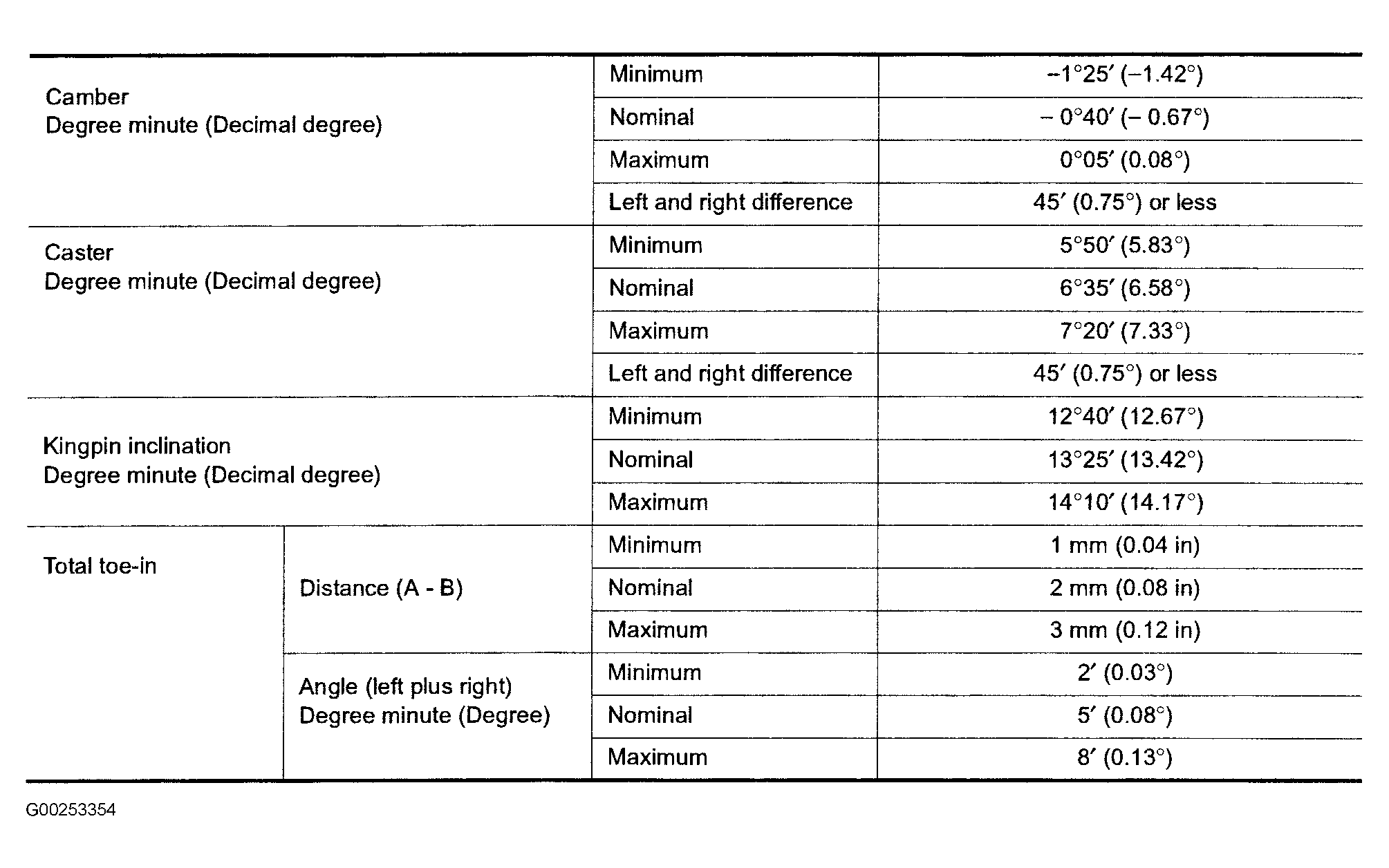

Fig 1: Front Wheel Alignment Specifications (M45)
G00253354Courtesy of NISSAN MOTOR CO., U.S.A.
