2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

How To Display SRT Code

  • With CONSULT-II

    Select "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II. For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen. For items whose SRT codes are not set, "INCMP" is displayed. See Fig 1 . "INCMP" means the self-diagnosis is incomplete and SRT is not set. "CMPLT" means the self-diagnosis is complete and SRT is set. If any category is incomplete, go to SETTING SRT CODES  .

  • Without CONSULT-II

    Select MODE 1 with scan tool, and observe SRT STATUS. An INCMP display for any SRT system indicates the self-diagnosis for that circuit is incomplete. SRT systems that have completed self-diagnosis will be indicated by CMPLT, indicating SRT is set. If any category is incomplete, go to SETTING SRT CODES  .

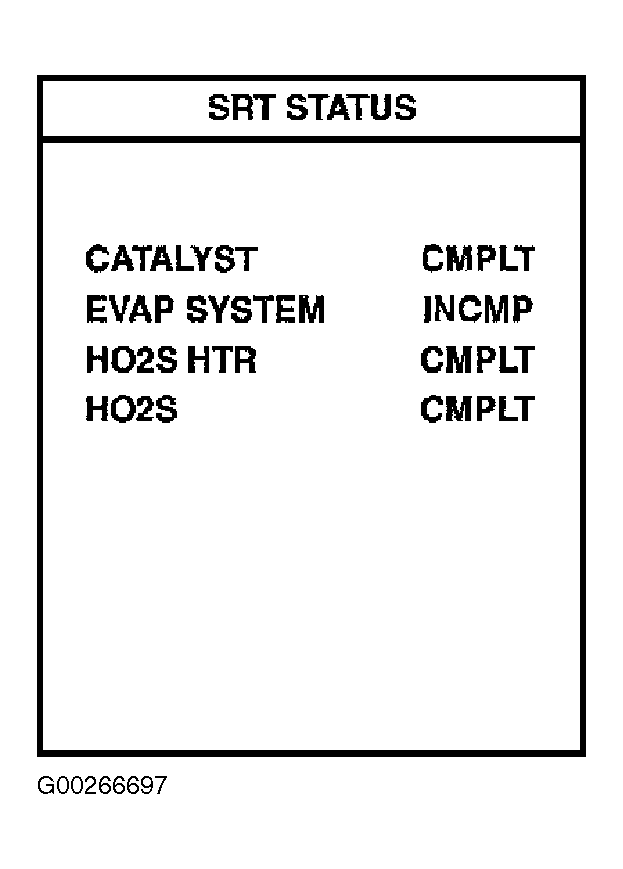

Fig 1: Checking System Readiness Test Code Status
G00266697Courtesy of NISSAN MOTOR CO., U.S.A.
