2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Encoder Switch Check (Passenger Side)

  1. CHECK FRONT POWER WINDOW REGULATOR (PASSENGER SIDE) POWER SUPPLY
    1. Turn ignition switch ON.
    2. Check voltage between passenger door control unit connector D38 terminal 4 and ground.
      1. 4 (W) - Ground : Approx. 10V

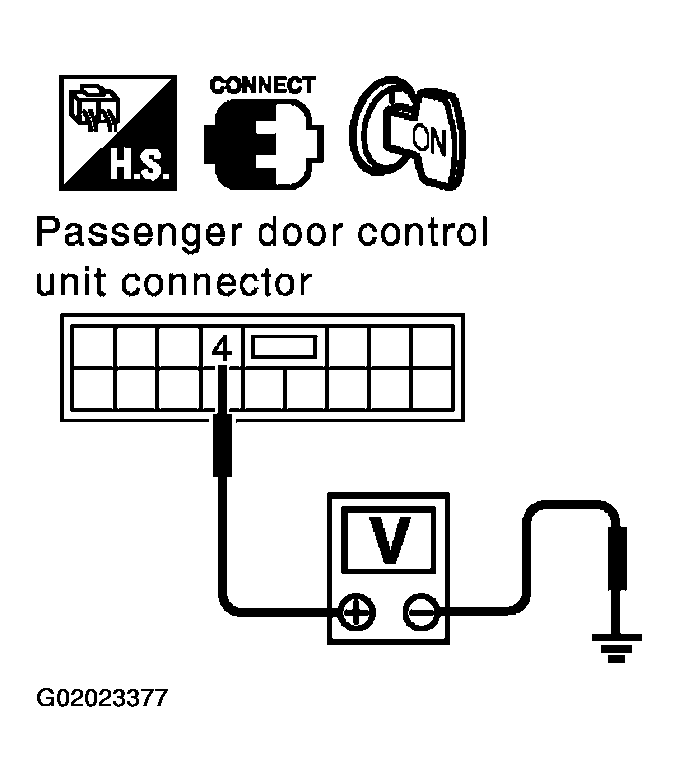

      3. Fig 1: Checking Front Power Window Regulator (Passenger Side) Power Supply
      G02023377Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 2.

    NG >> Replace passenger door control unit.

  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect passenger door control unit and front power window regulator (passenger side) connector.
    3. Check continuity between driver door control unit (LCU01) connector D38 terminal 4 and front power window regulator (passenger side) connector D37 terminal 5.
      1. 4 (W) - 5 (W) : Continuity should exist.

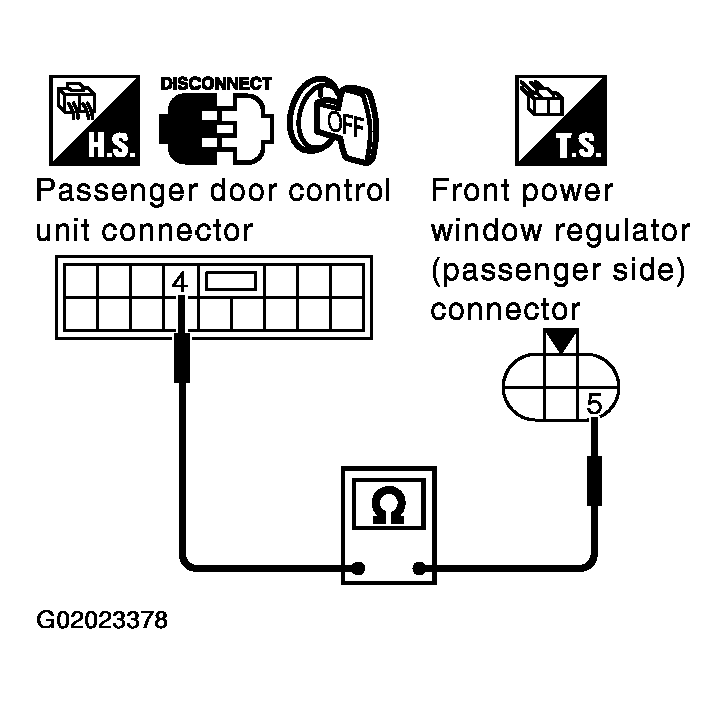

      4. Fig 2: Checking Harness Continuity
      G02023378Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 3.

    NG >> Repair or replace harness between passenger door control unit and front power window regulator (passenger side).

  3. CHECK ENCODER GROUND

    Check continuity between front power window regulator (passenger side) connector D37 terminal 3 and ground.

    1. 3 (B) - Ground : Continuity should exist.

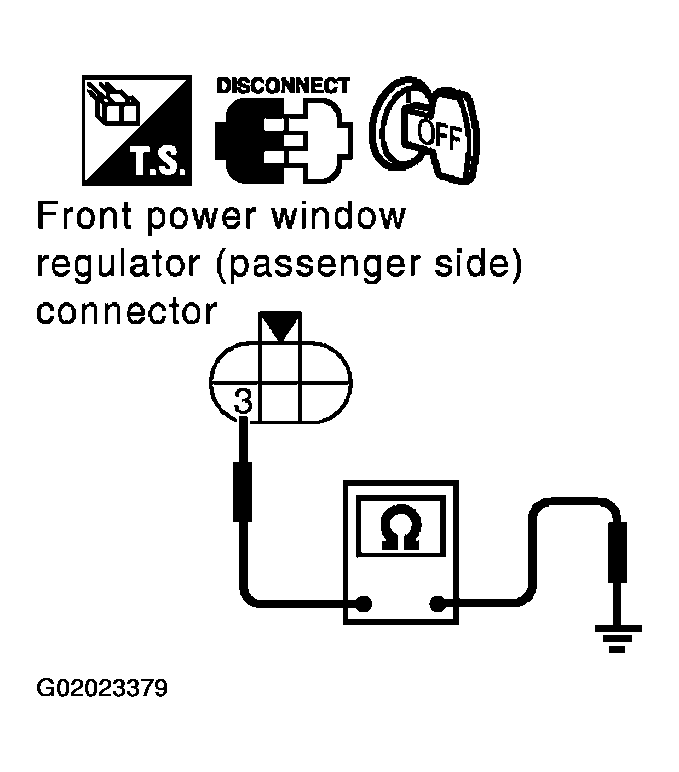

      2. Fig 3: Checking Encoder Ground
      G02023379Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 4.

    NG >> Repair or replace harness.

  4. CHECK ENCODER SIGNAL
    1. Connect passenger door control unit and front power window regulator (passenger side) connector.
    2. Turn ignition switch ON.
    3. Check the signal between passenger door control unit connector and ground with oscilloscope.

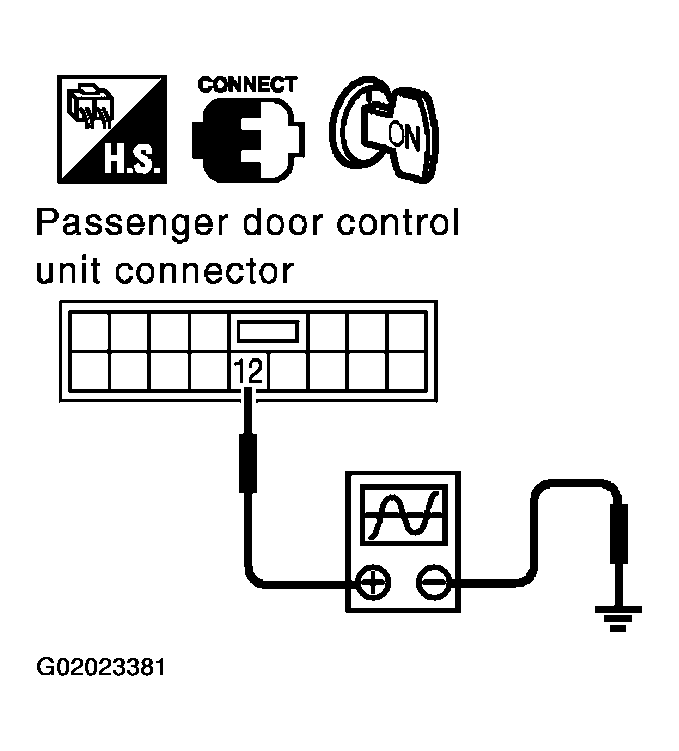

      Fig 4: Checking Encoder Signal
      G02023381Courtesy of NISSAN MOTOR CO., U.S.A.
