2003 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Driver Door Control Unit Circuit Check

  1. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect driver door control unit (LCU01) connector.
    3. Check voltage between driver door control unit (LCU01) connector D8 terminal 14 and ground.
      1. 14 (Y/G) - Ground : Battery voltage

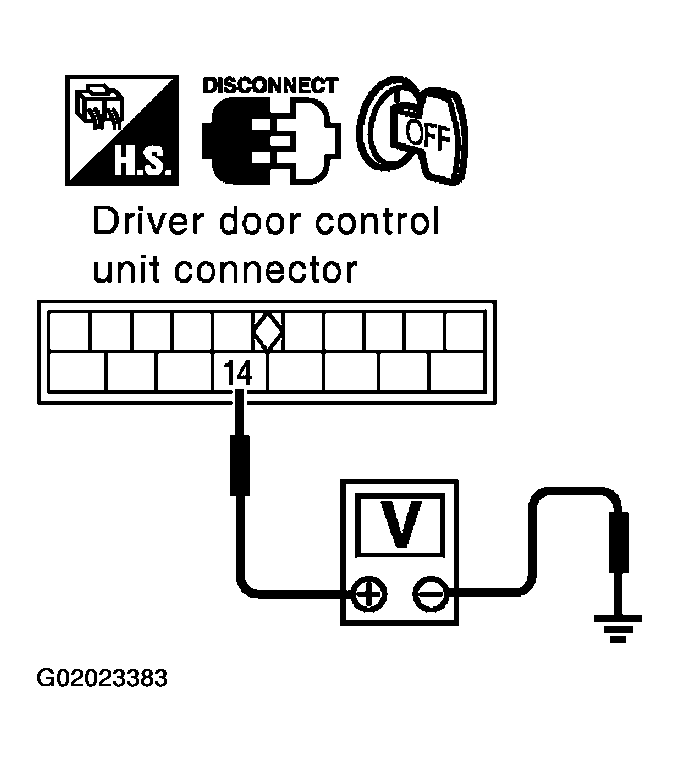

      4. Fig 1: Checking Power Supply Circuit
      G02023383Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 2.

    NG >> Check the following.

    • 40A fusible link (letter H. located in fuse and fusible link box).
    • Harness for open or short between driver control unit (LCU01) and fuse.
  2. CHECK GROUND CIRCUIT

    Check continuity between driver door control unit (LCU01) connector D8 terminal 15 and ground.

    1. 15 (B) - Ground : Continuity should exist.

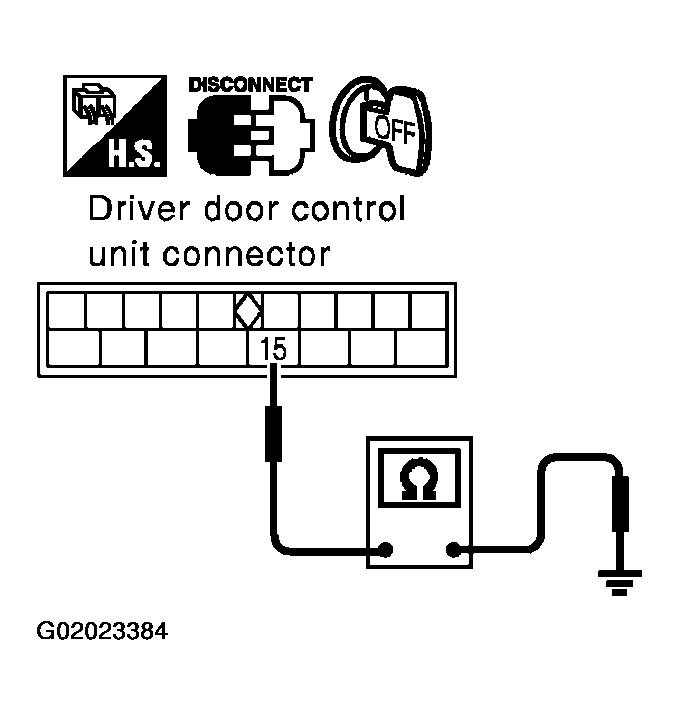

      2. Fig 2: Checking Ground Circuit
      G02023384Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> INSPECTION END

    NG >> Repair or replace harness.
