2003 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Control Valve Upper Body: Assembly: Notes

Lay control valve body down when installing valves. Do not stand the control valve body upright.

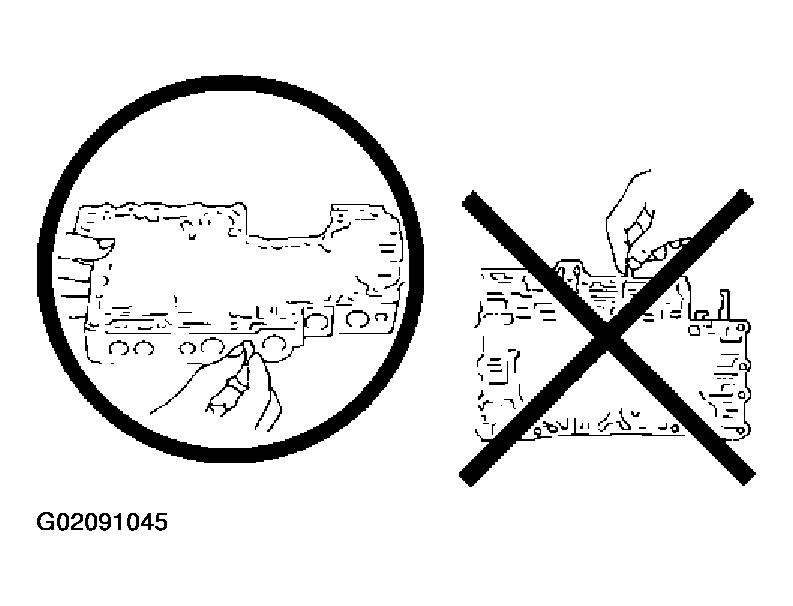

Fig 1: Identifying Control Valve Precautions
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.

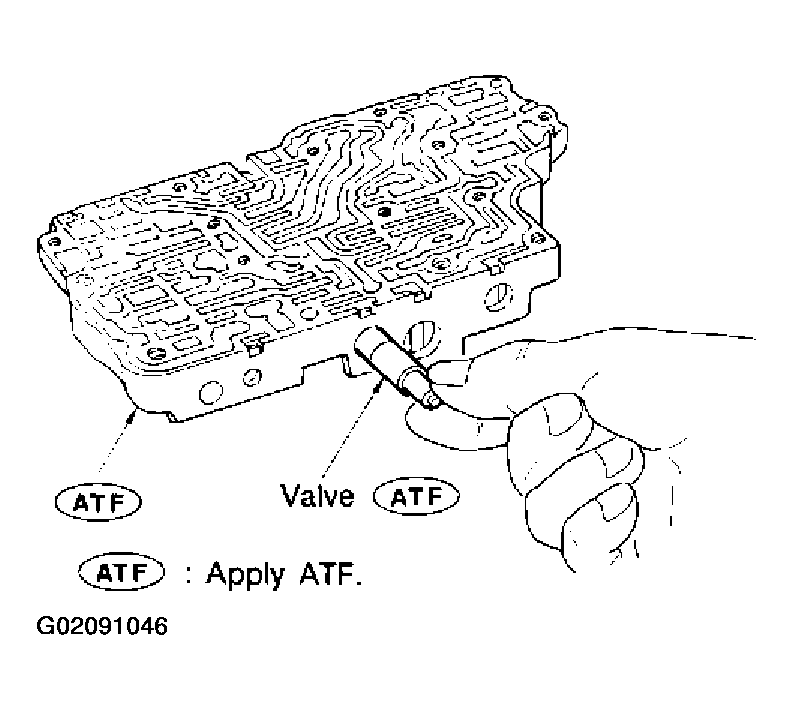

  Fig 2: Installing Control Valves Into Their Bores
  Courtesy of NISSAN MOTOR CO., U.S.A.
Be careful not to scratch or damage valve body.
Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

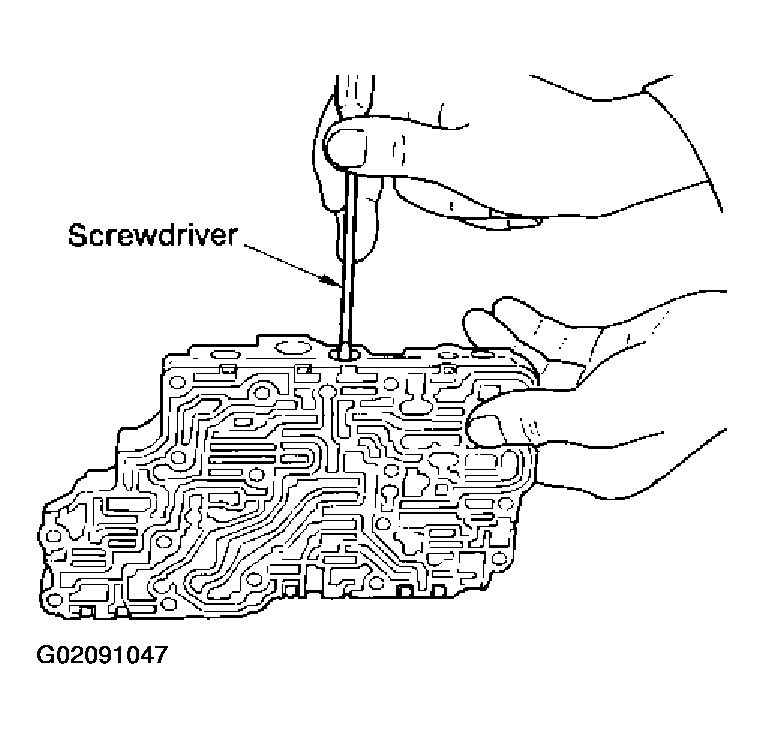

Fig 3: Inserting Valves Into Their Proper Positions
Courtesy of NISSAN MOTOR CO., U.S.A.
