Control Valve Assembly: Assembly

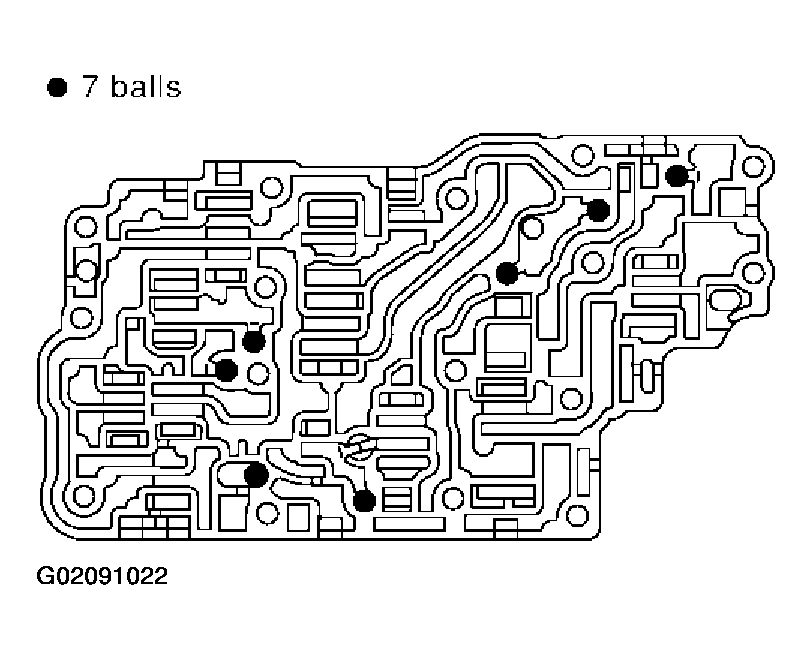

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
   Fig 1: Locating Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.

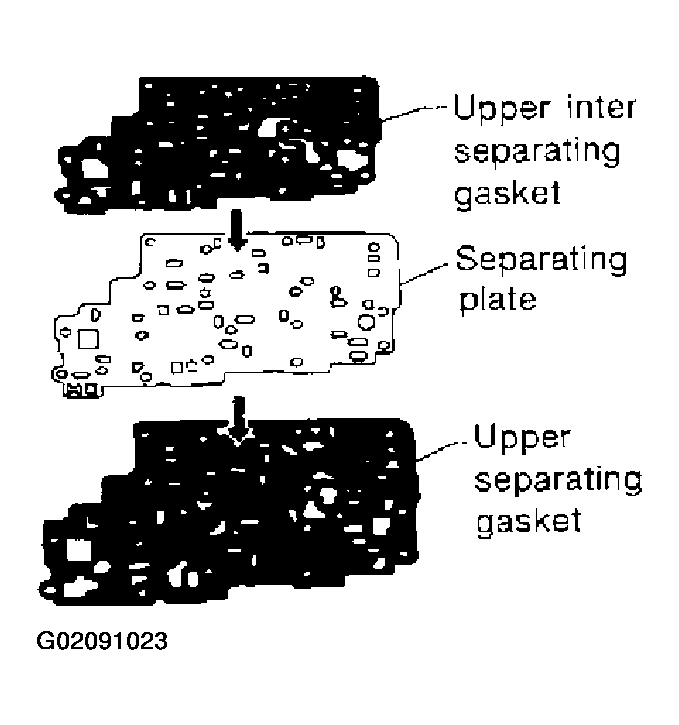

2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
   Fig 2: Installing Separating Plat With Upper & Inter Gaskets

   Courtesy of NISSAN MOTOR CO., U.S.A.

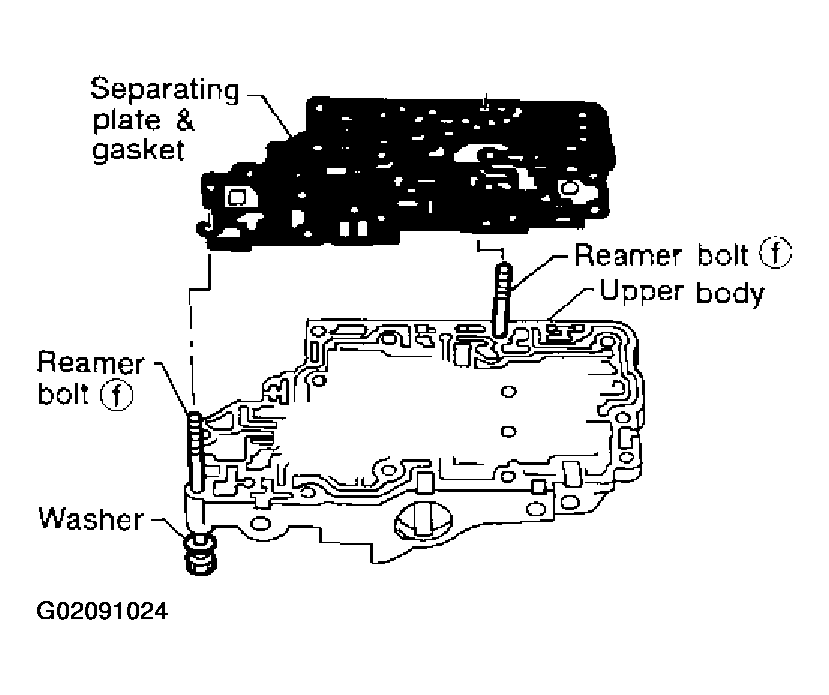

3. Install reamer bolts f  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
   Fig 3: Installing Reamer Bolts, Separating Plate & Gaskets

   Courtesy of NISSAN MOTOR CO., U.S.A.

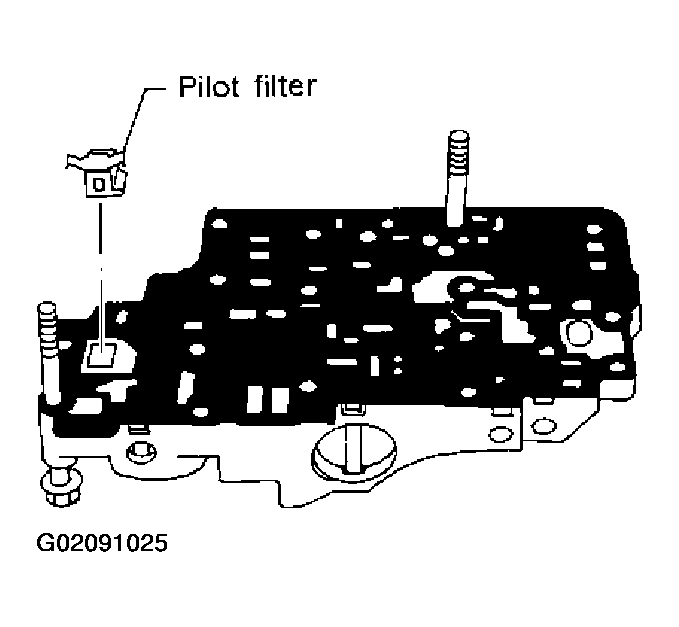

4. Install pilot filter.
   Fig 4: Installing Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.

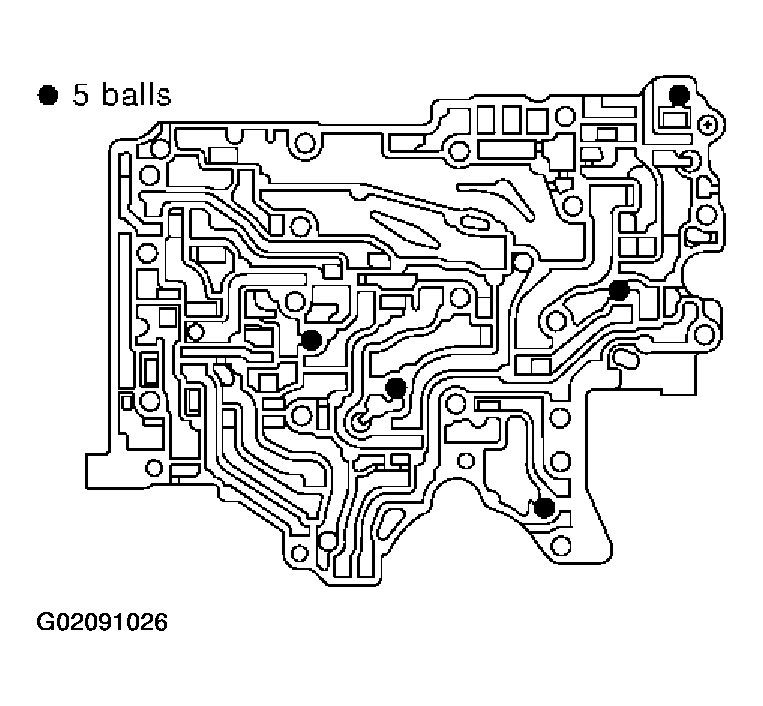

5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.
   Fig 5: Installing Steel Balls In Their Proper Positions

   Courtesy of NISSAN MOTOR CO., U.S.A.

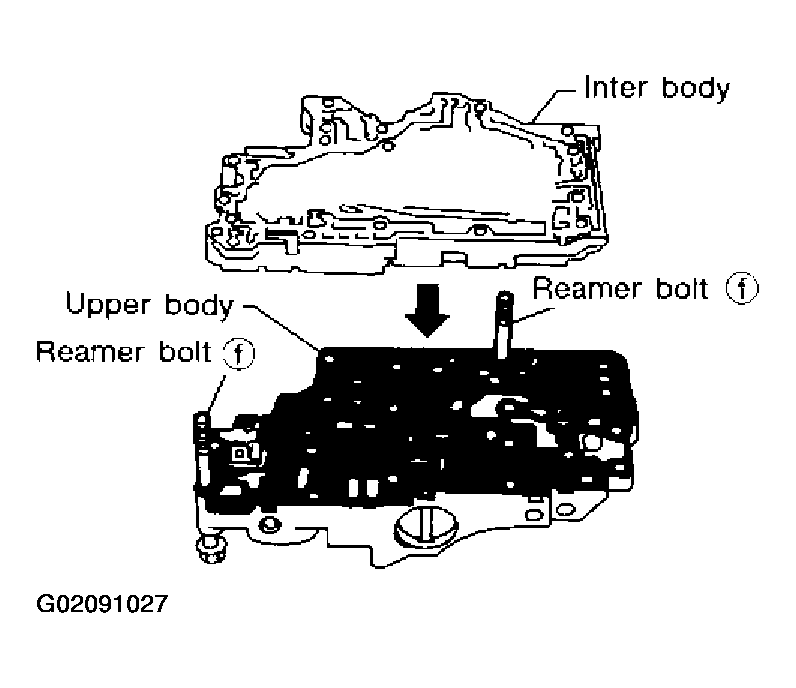

6. Install inter body on upper body using reamer bolts f  as guides.
   Fig 6: Installing Inter Body On Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to dislocate or drop steel balls.

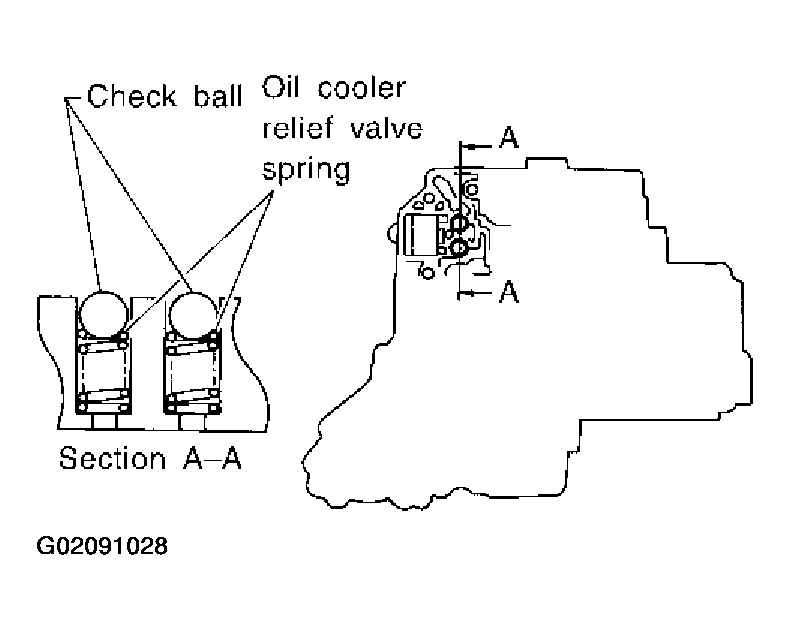

7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.
   Fig 7: Installing Check Balls And Oil Cooler Relief Valve Springs

   Courtesy of NISSAN MOTOR CO., U.S.A.

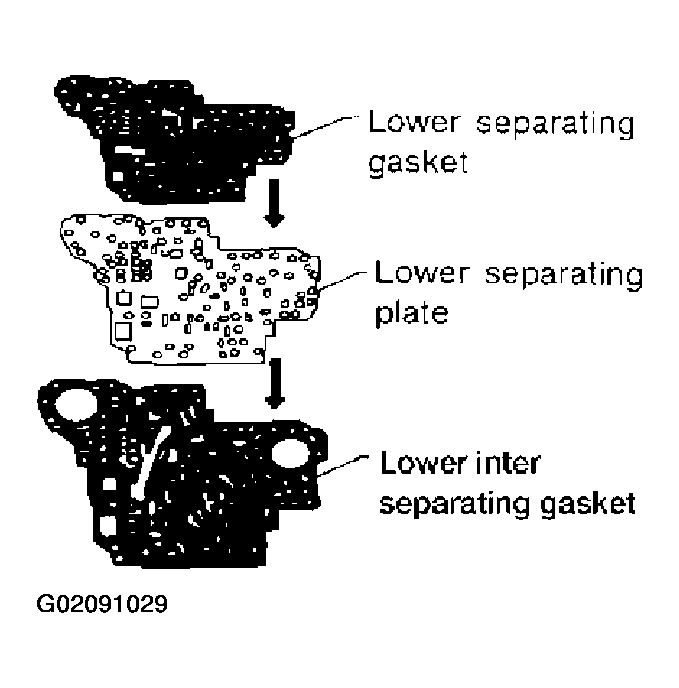

8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.
   Fig 8: Installing Separating Gaskets Lower Separating Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.

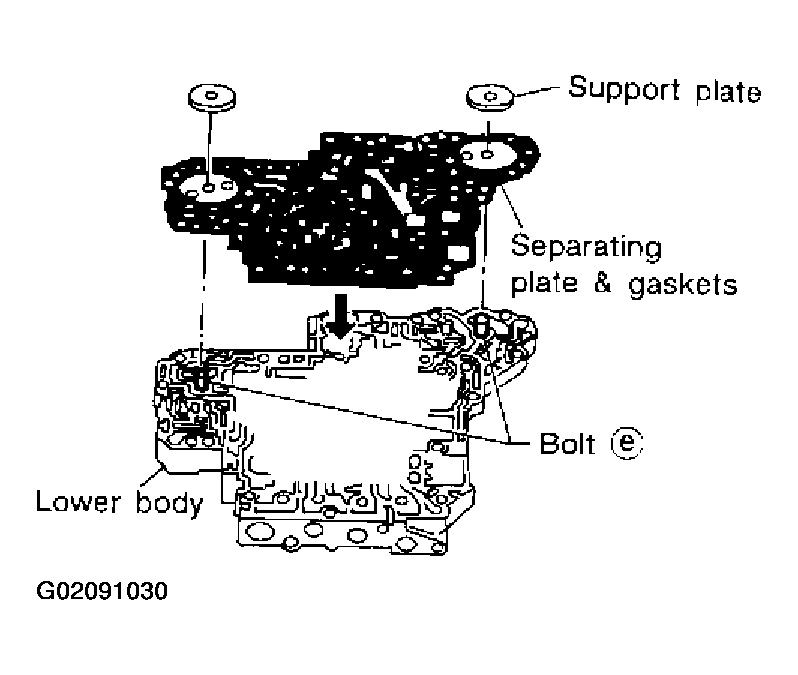

9. Install bolts e  from bottom of lower body. Using bolts e  as guides, install separating plate and gaskets as a set.
10. Temporarily install support plates on lower body.
    Fig 9: Temporarily Installing Support Plates On Lower Body

    Courtesy of NISSAN MOTOR CO., U.S.A.

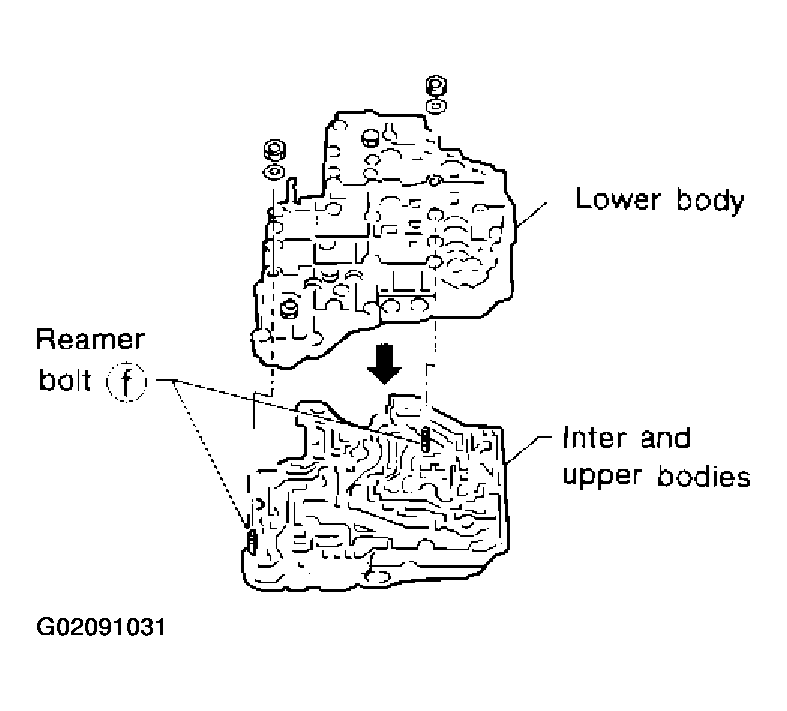

11. Install lower body on inter body using reamer bolts f  as guides and tighten reamer bolts f  slightly.
    Fig 10: Installing Lower Body On Inter Body

    Courtesy of NISSAN MOTOR CO., U.S.A.

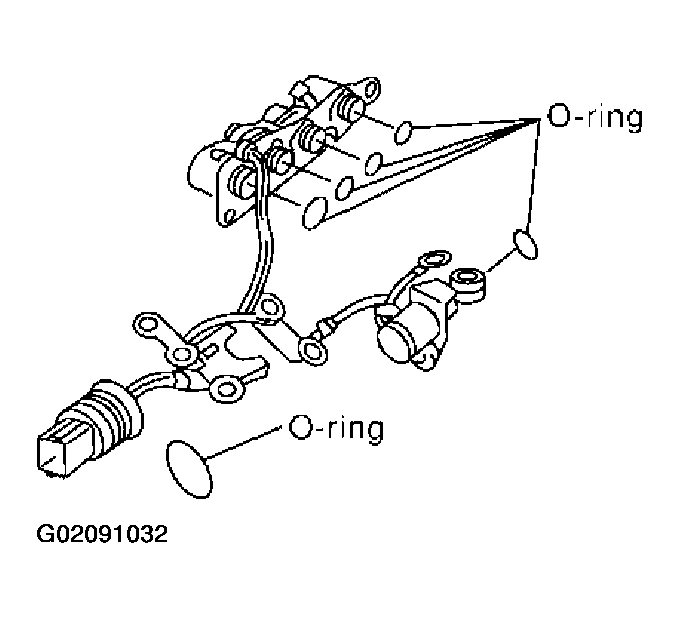

• Apply ATF to O-rings.

Fig 11: Installing O-Rings To Solenoid Valves & Terminal Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Bolt length, number and location: see  Fig 13

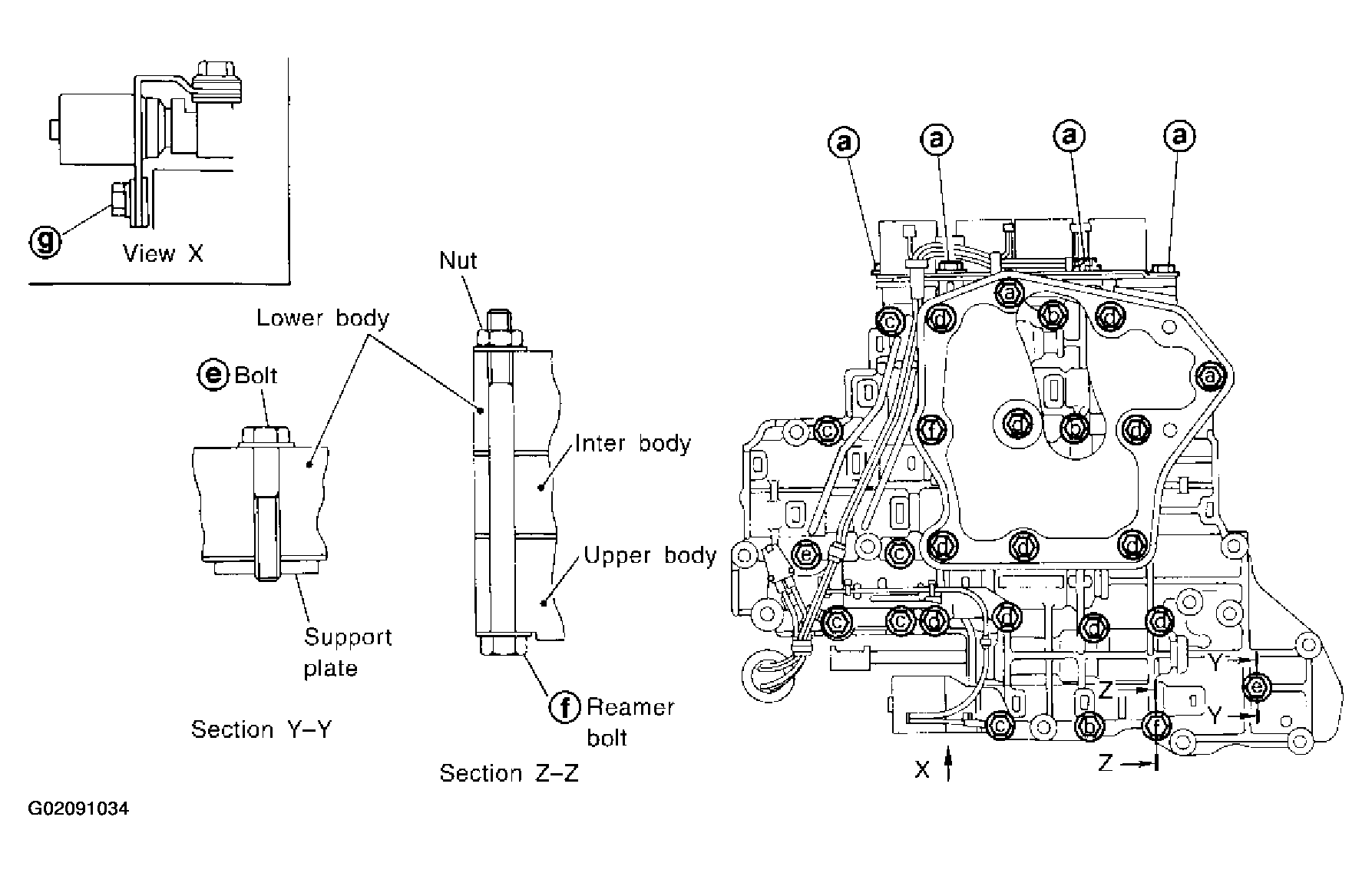

Fig 12: Installing & Tighten Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
