2003 Infiniti I35FACTORY OEM SERVICE PROCEDURE
Removal & Installation

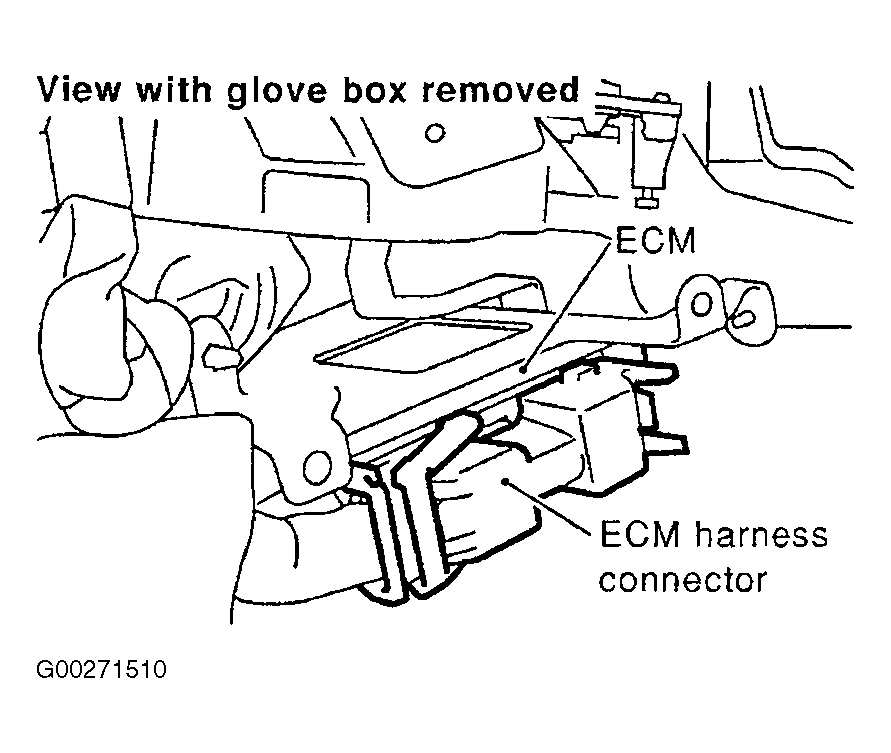

The ECM is located behind the glove box. To remove the ECM the glove box must be removed. Remove the ECM harness connector. See Fig 1 . Remove ECM. To install, reverse removal procedure.
