2003 Infiniti FX45FACTORY OEM SERVICE PROCEDURE
Connector Identification
NOTE:

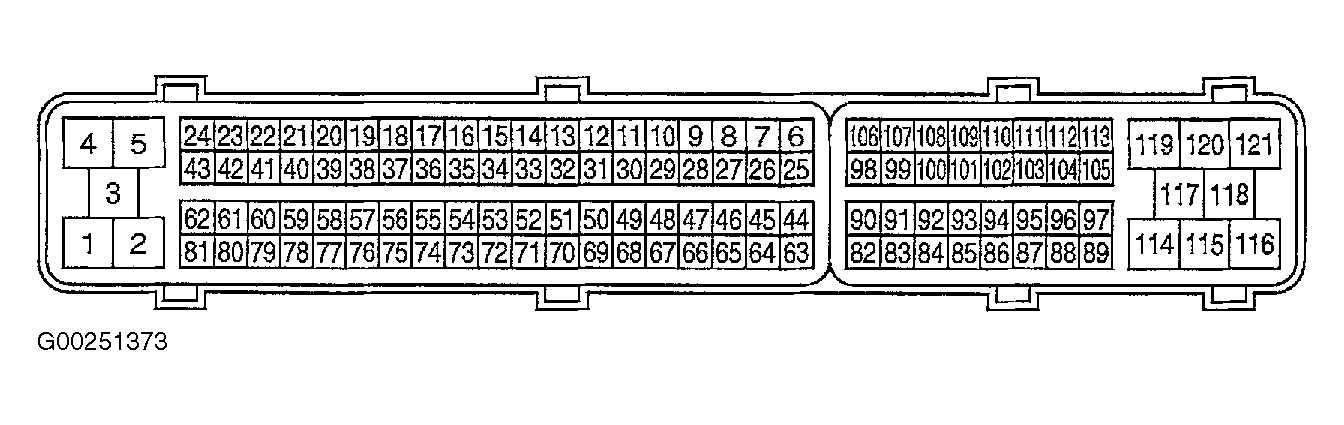

For ECM harness connector, J/S, relay box & SMJ terminal locations, see Fig 1
-Fig 5
. For wiring color codes, see WIRING COLORS
table.
WIRING COLORS
| Color (1) | Code | ||
|---|---|---|---|
| Black | B | ||
| White | W | ||
| Red | R | ||
| Green | G | ||
| Blue | L | ||
| Yellow | Y | ||
| Light Green | LG | ||
| Brown | BR | ||
| Orange | OR Or O | ||
| Pink | P | ||
| Purple Or Violet | PU Or V | ||
| Gray | GY Or GR | ||
| Sky Blue | SB | ||
| Dark Brown | CH | ||
| Dark Green | DG | ||
|
|||
