2003 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Consult-II Inspection Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

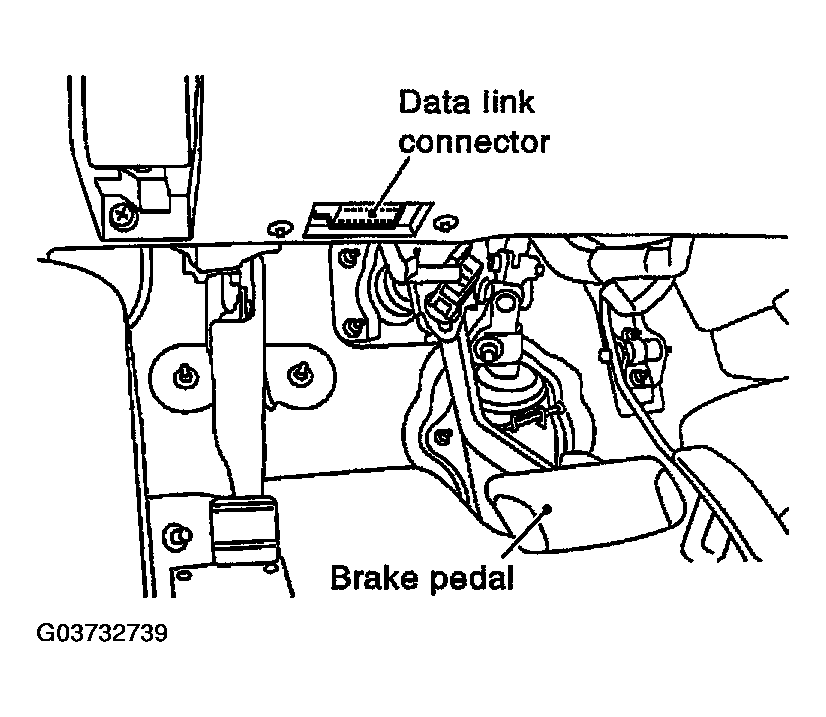

Fig 1: Connecting CONSULT-II And CONSULT-II CONVERTER to Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

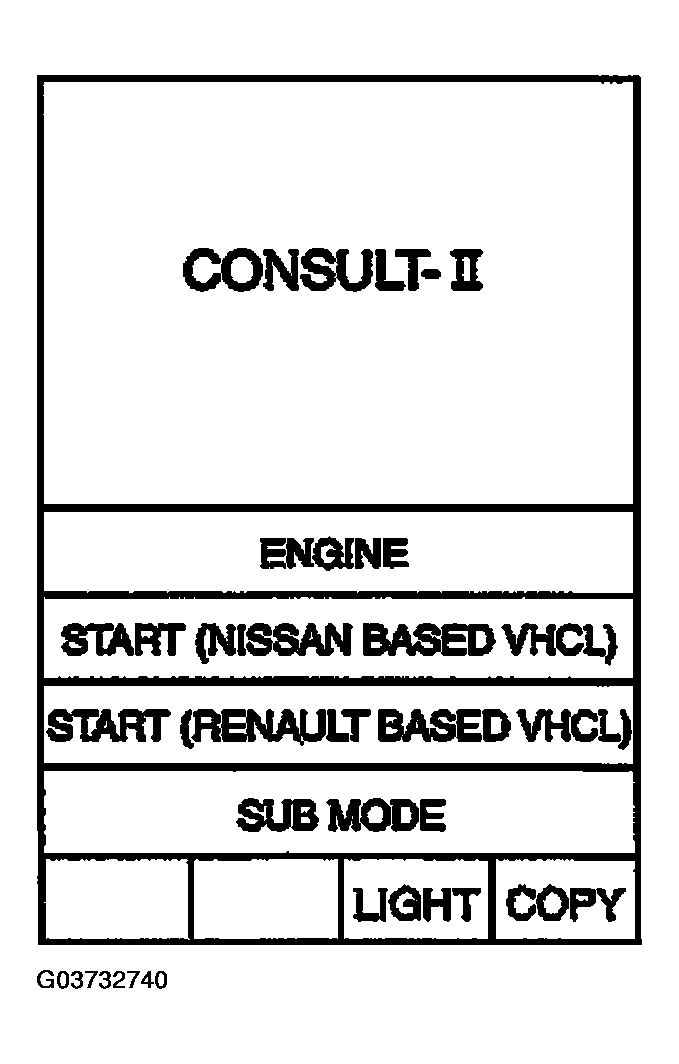

Fig 2: Displaying "START (Nissan Based Vhcl)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
- If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen .

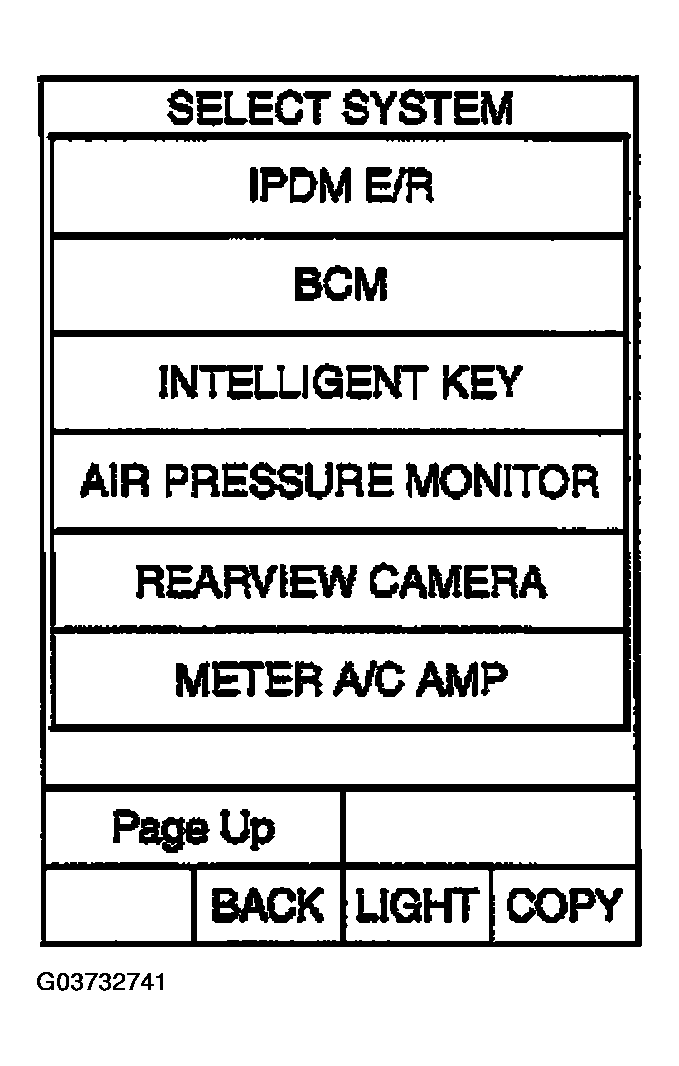

Fig 3: Displaying "IPDM E/R" On "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.

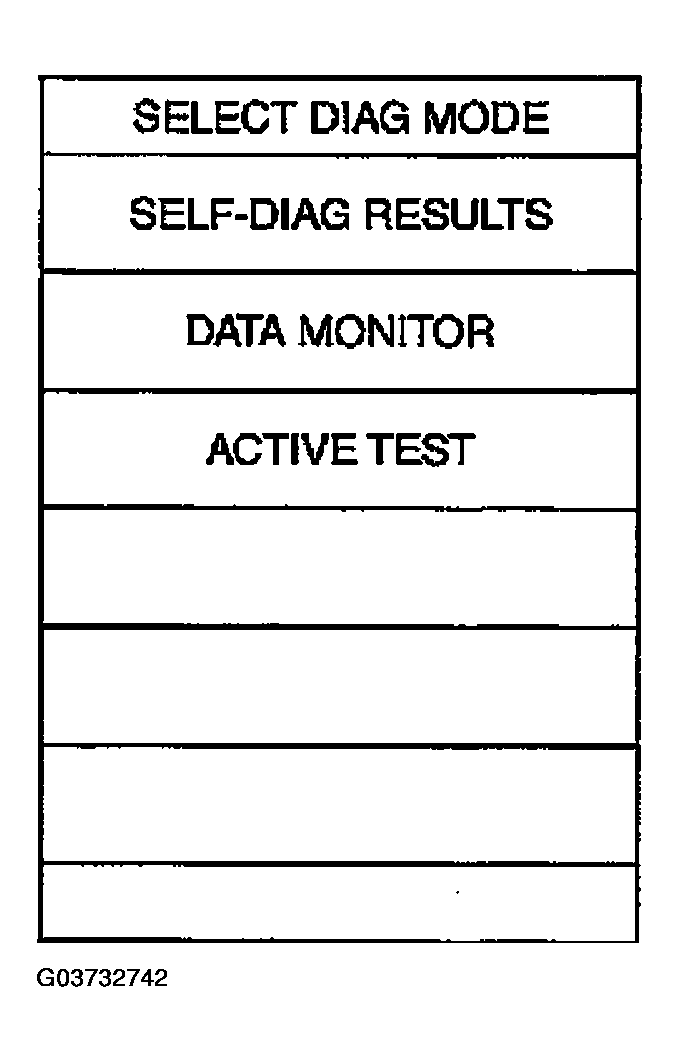

Fig 4: Displaying "SELECT DIAG MODE" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
