Consult-II Inspection Procedure: Notes
- Turn ignition switch "OFF".

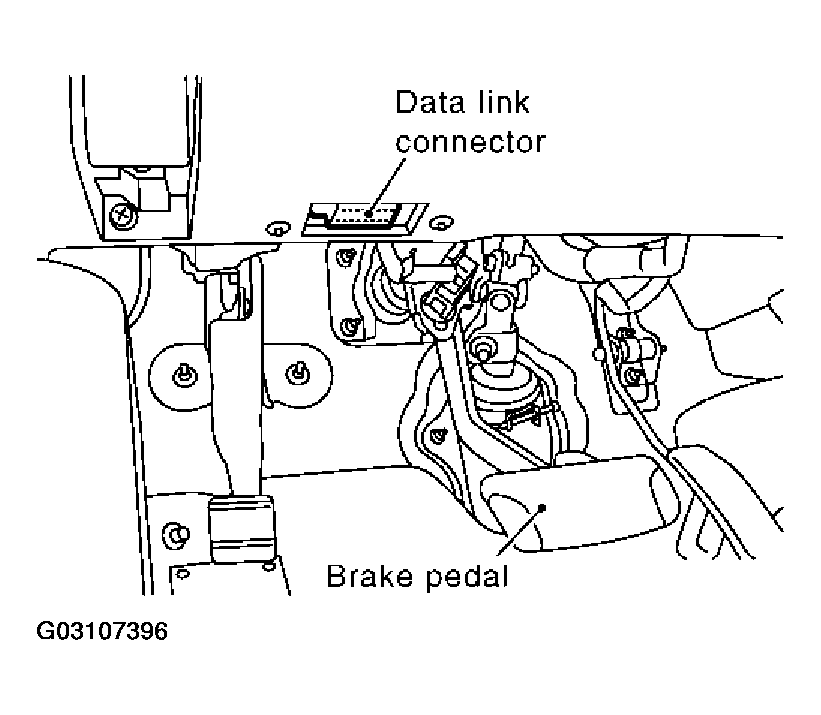

- Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.
- Turn ignition switch "ON".

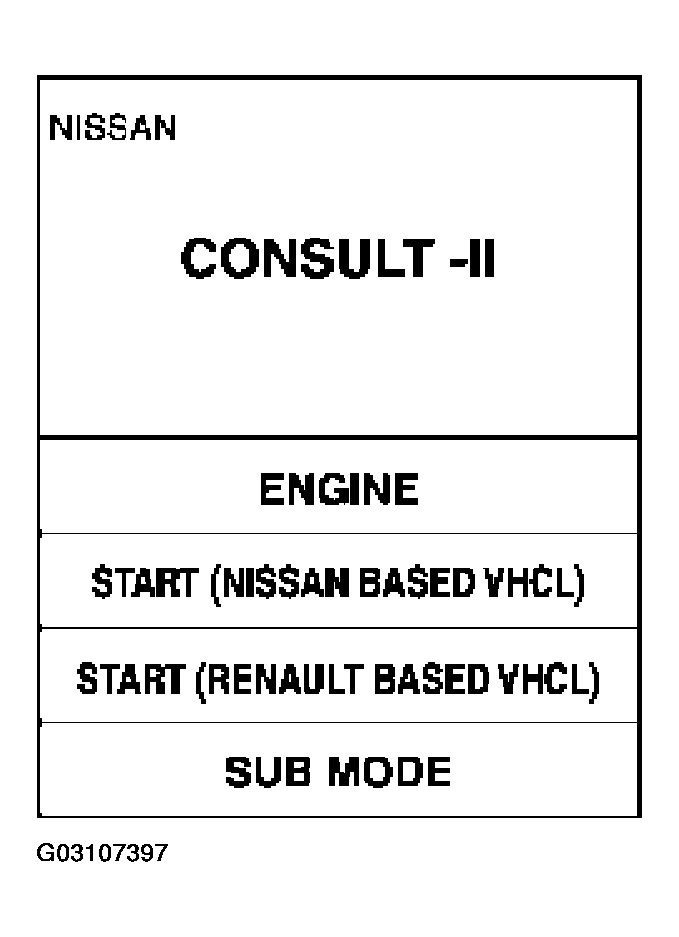

- Touch "START (NISSAN BASED VHCL)".

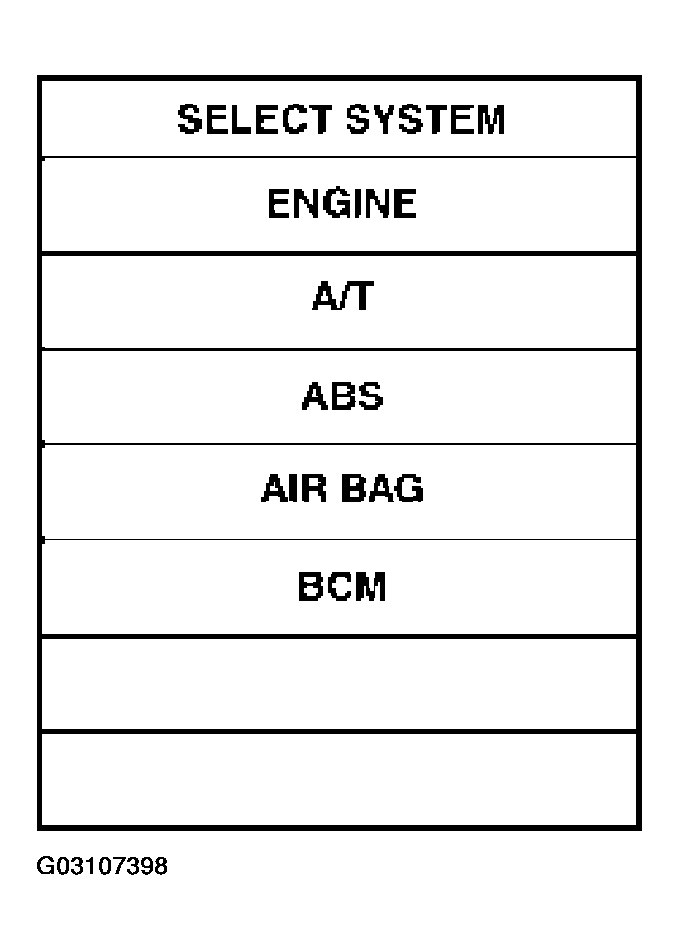

- Touch "BCM".
If "BCM" is not indicated go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

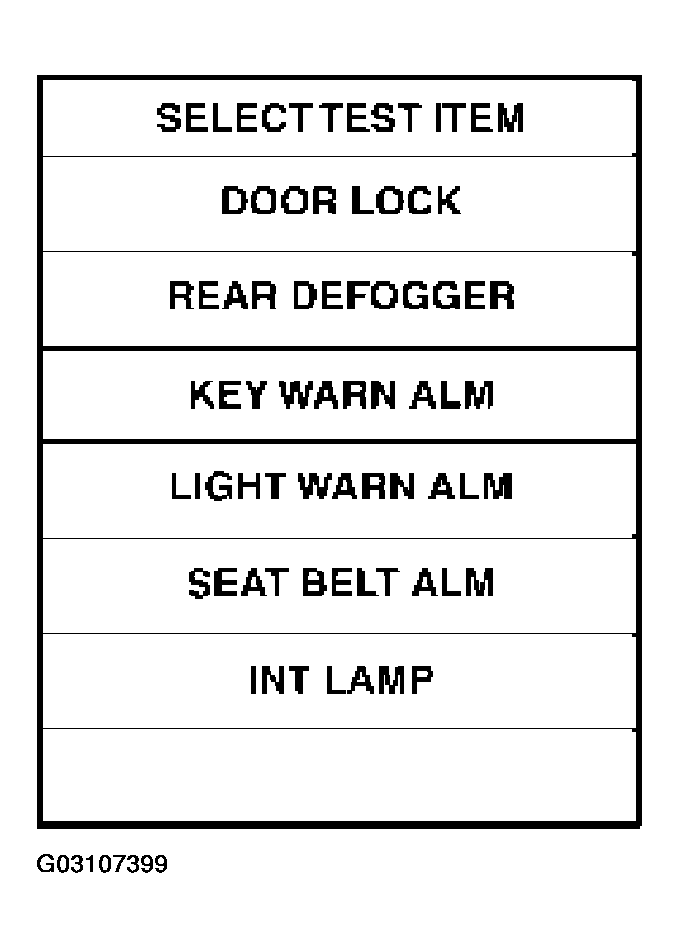

- Touch "REAR DEFOGGER".

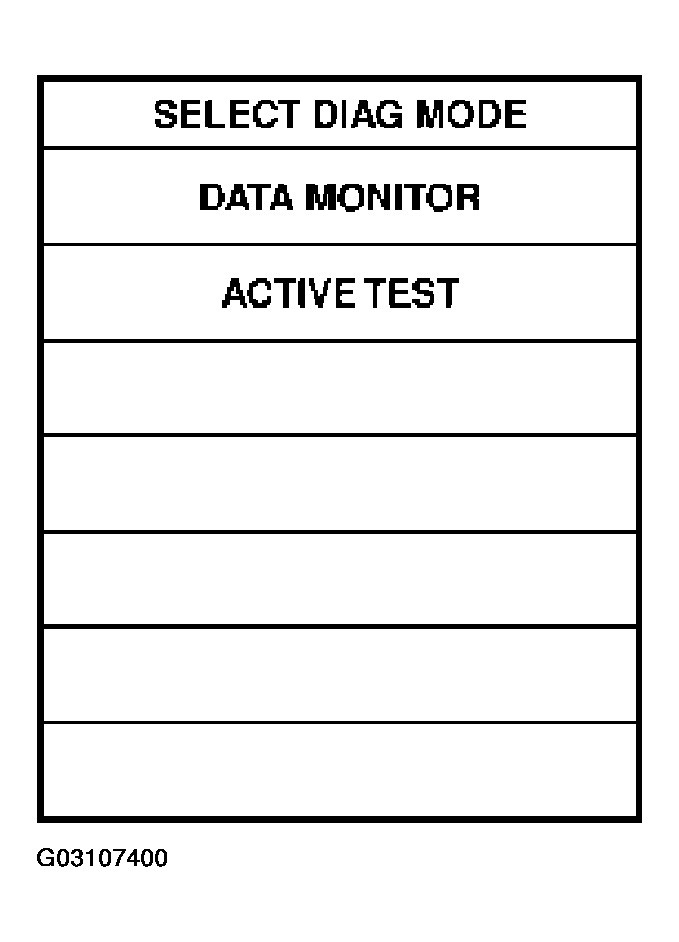

- Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".
