2003 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

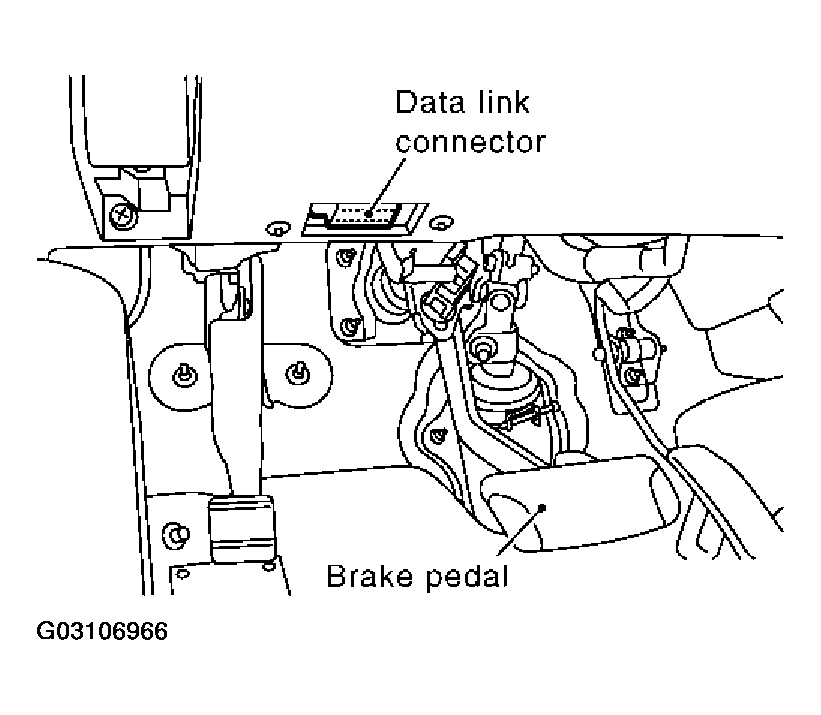

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter to the data link connector
    G03106966Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

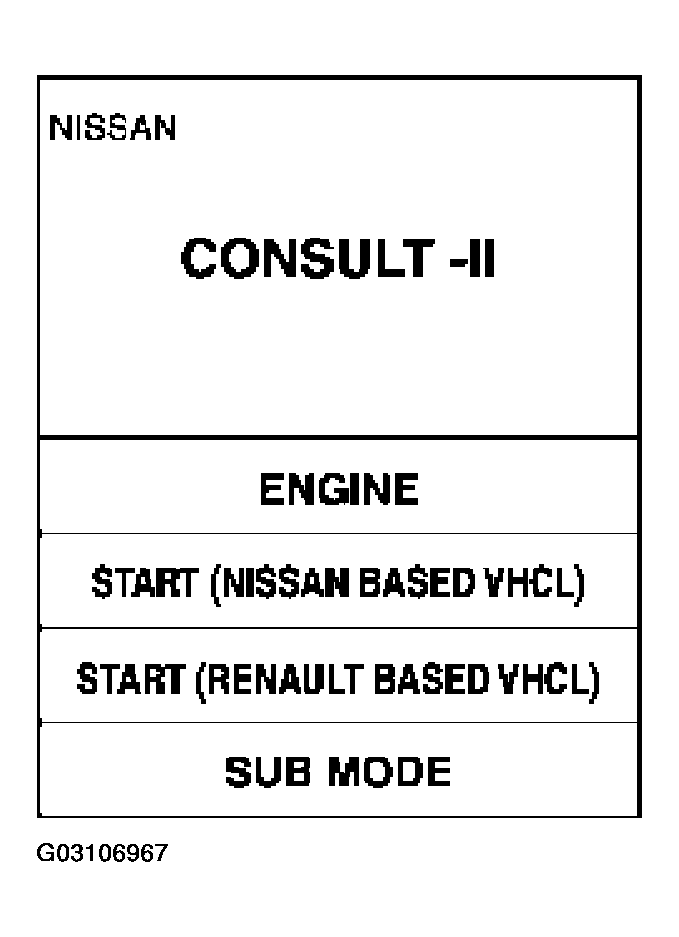

    Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
    G03106967Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

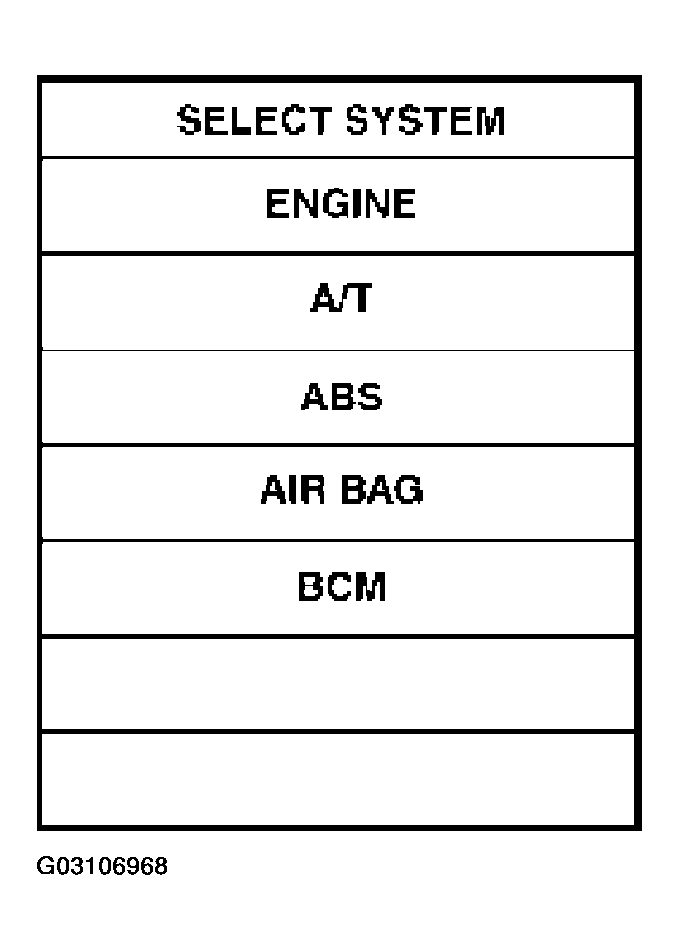

    Fig 3: CONSULT-II Display - Touch "BCM"
    G03106968Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

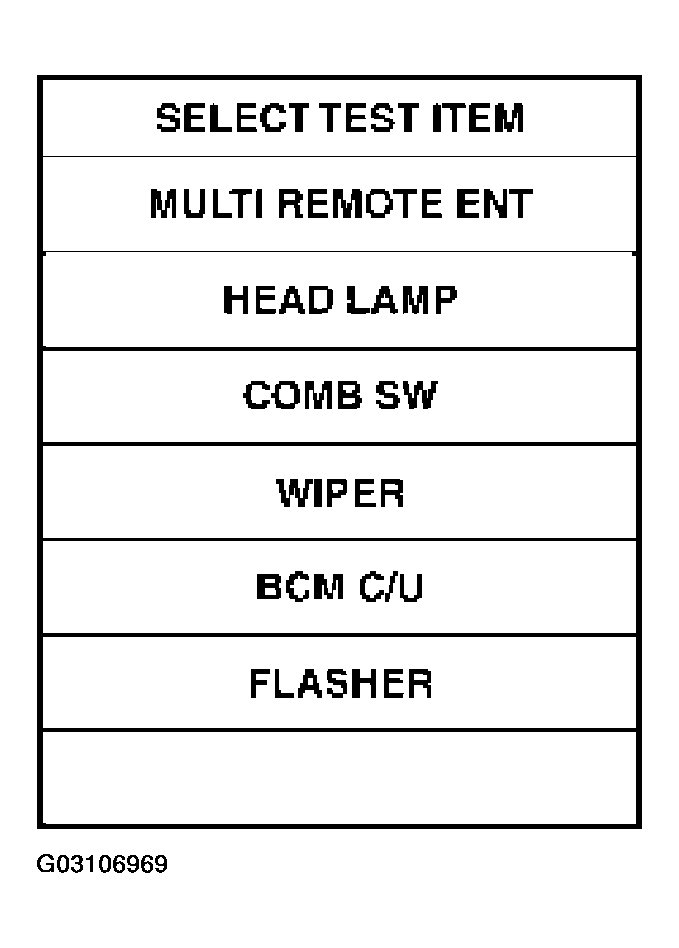

    Fig 4: CONSULT-II Display - Touch "MULTI REMOTE ENT"
    G03106969Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode.

    "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

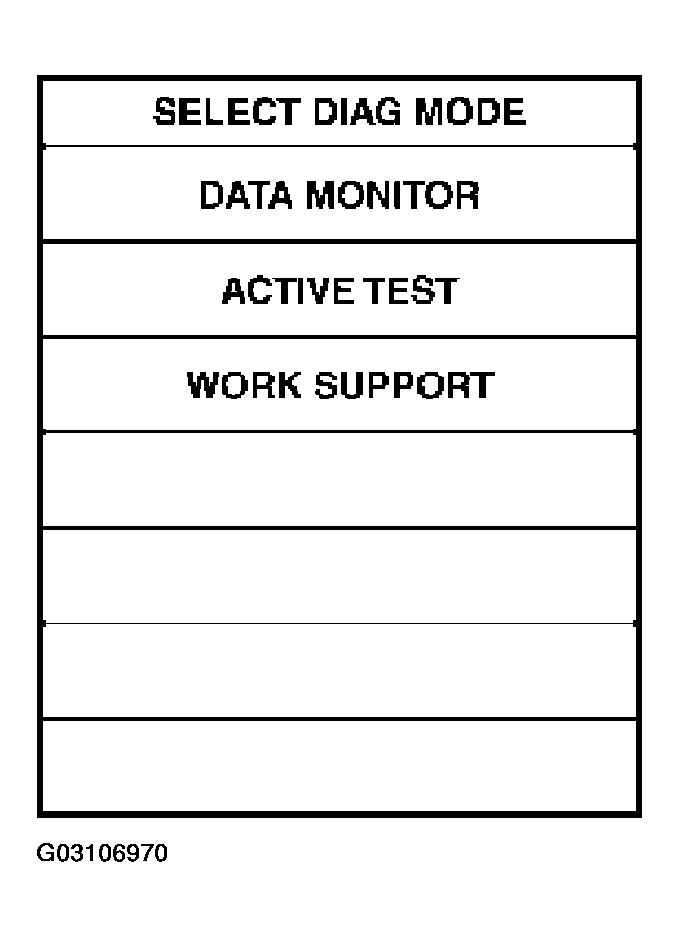

    Fig 5: CONSULT-II Display - Select Diagnosis Mode
    G03106970Courtesy of NISSAN MOTOR CO., U.S.A.
