2003 Infiniti FX35 AWDFACTORY OEM SERVICE PROCEDURE

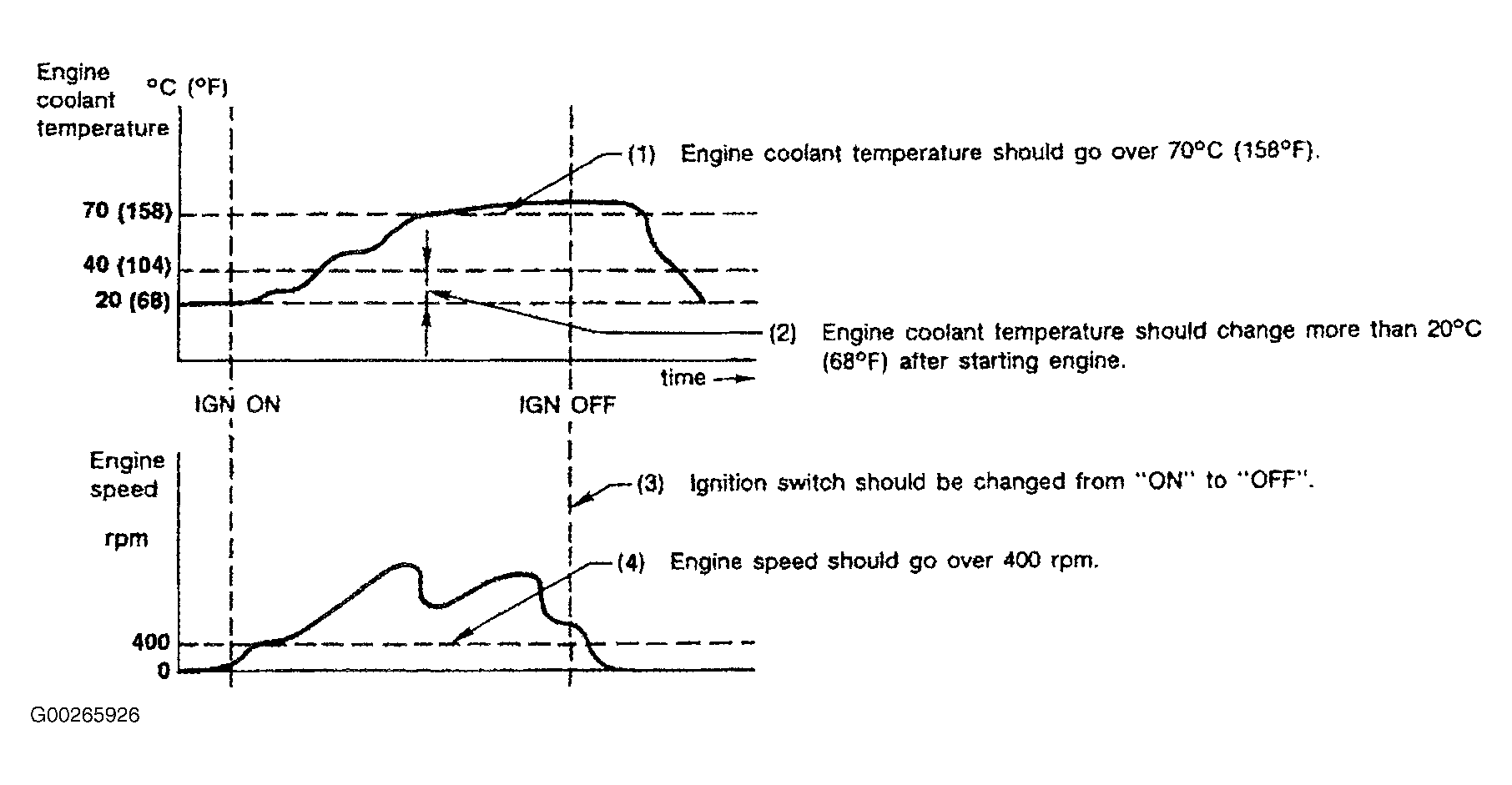

Explanation For Driving Patterns Except For Misfire - Driving Pattern "A"
- The "A" counter will be cleared when the malfunction is detected regardless of (1) - (4). See Fig 1.
- The "A" counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the "A" counter reaches 40.
