2002 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Consult-II Basic Operation

With the ignition switch OFF, connect CONSULT-II to the data link connector, and turn the ignition switch ON.
Touch "START".

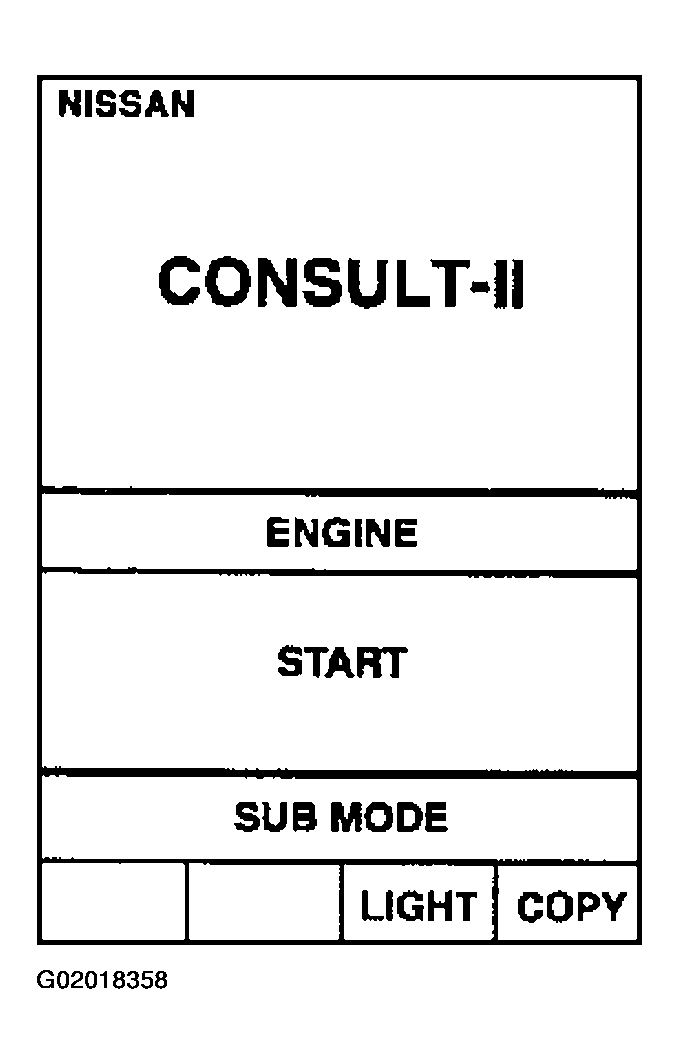

Fig 1: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.

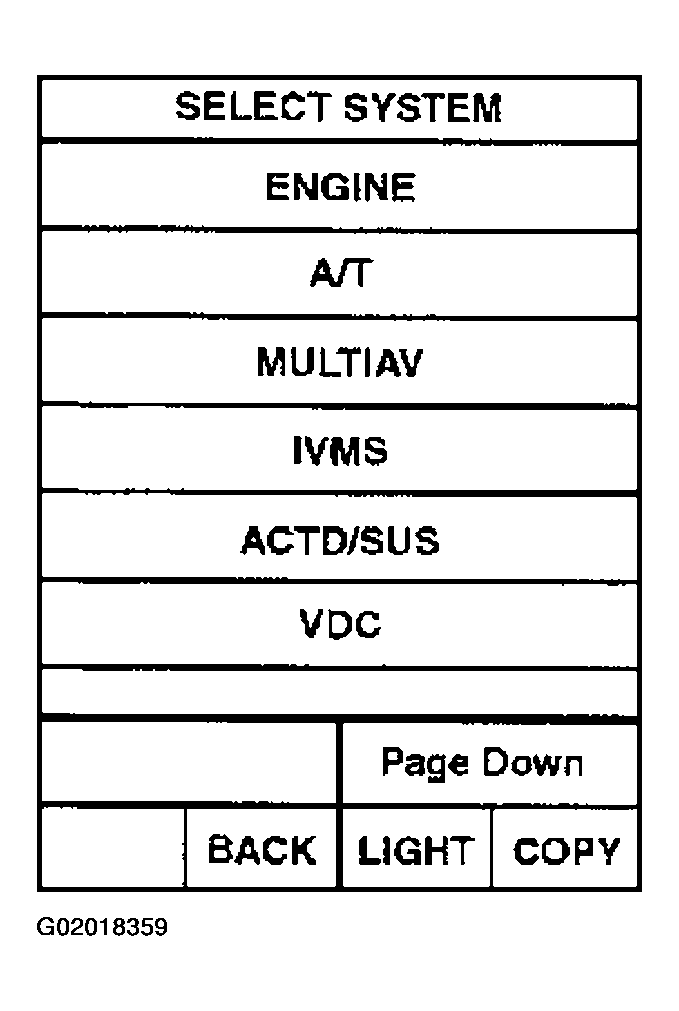

Fig 2: CONSULT-II Display - Touch "IVMS"
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, and touch either "WITH SUN-ROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

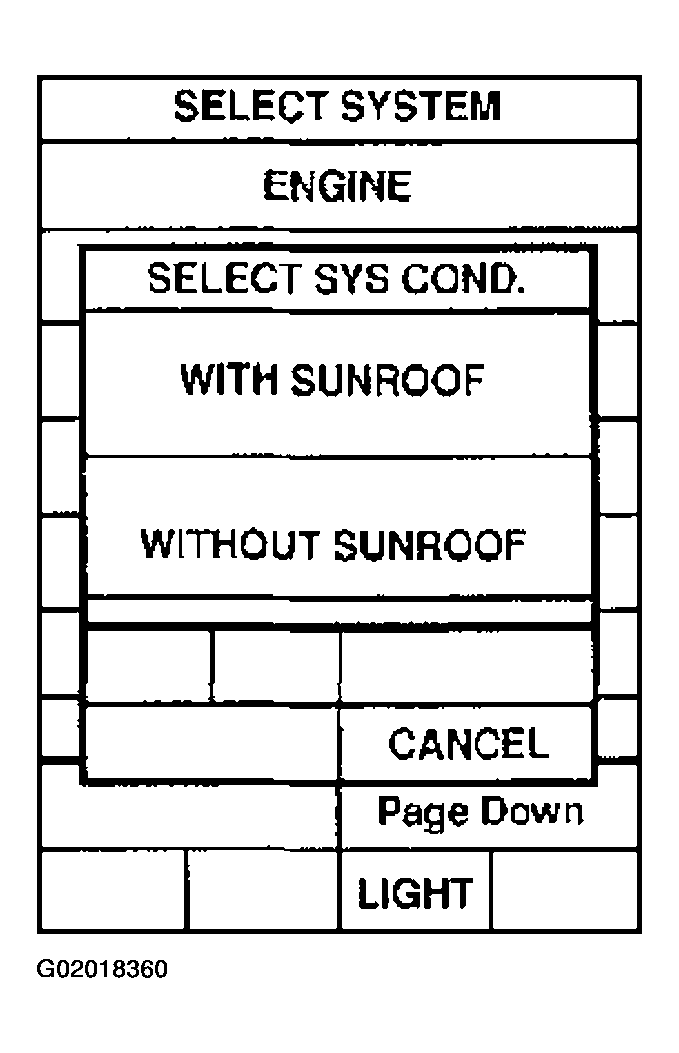

Fig 3: CONSULT-II Display - Touch "SELECT SYS COND"
Courtesy of NISSAN MOTOR CO., U.S.A.
