Key Switch Check
- CHECK KEY SWITCH
With CONSULT-II
- Check ignition key cylinder switch "IGN KEY SW" in "DATA MONITOR" mode with CONSULT-II. When key is inserted in ignition key cylinder:
IGN KEY SW ON
When key is removed from ignition key cylinder:
IGN KEY SW OFF
With out CONSULT-II
- Disconnect BCM connector.

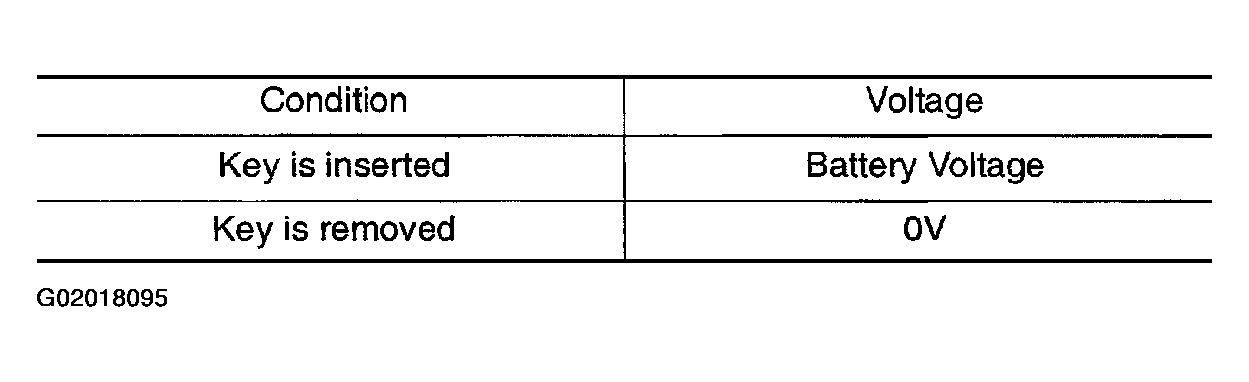

- Check voltage between harness connector M4 terminals 69 (PU/W) and body ground.
