2002 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Procedure 2 (With Consult-II)

NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use. When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.

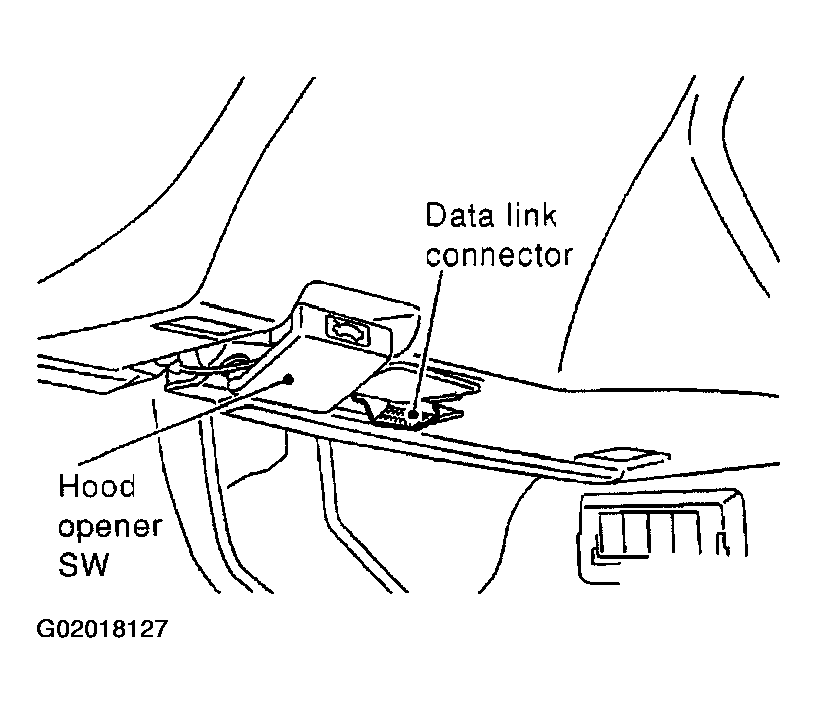

    Fig 1: Locating Data Link Connector
    G02018127Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START"

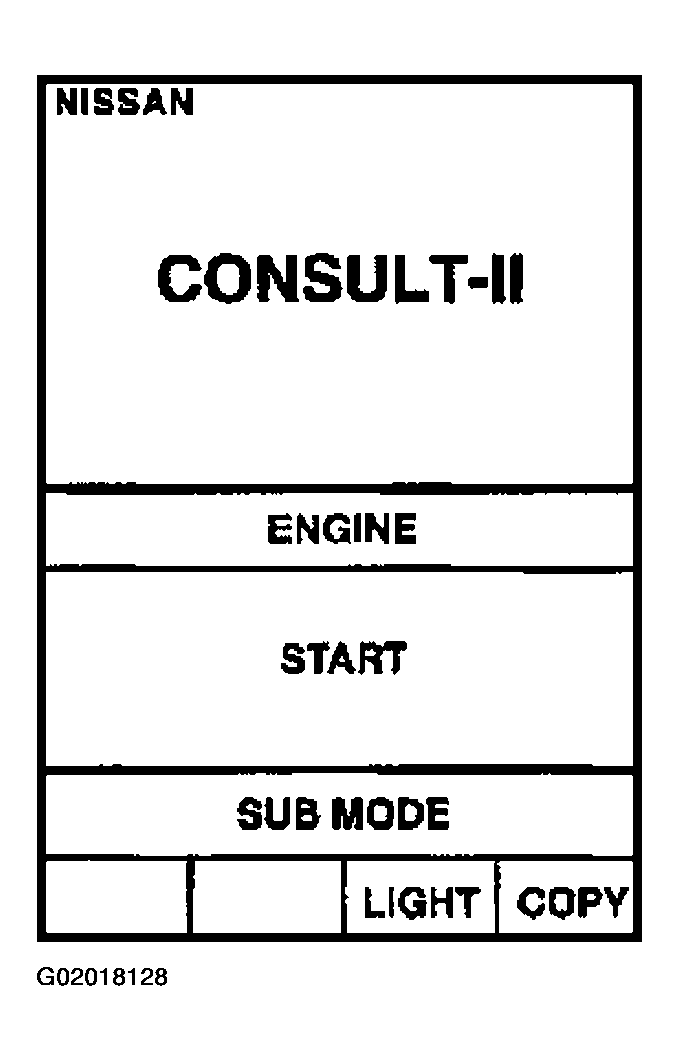

    Fig 2: CONSULT-II Display - START
    G02018128Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  6. Touch "OK". If the selection is wrong, touch "CANCEL".

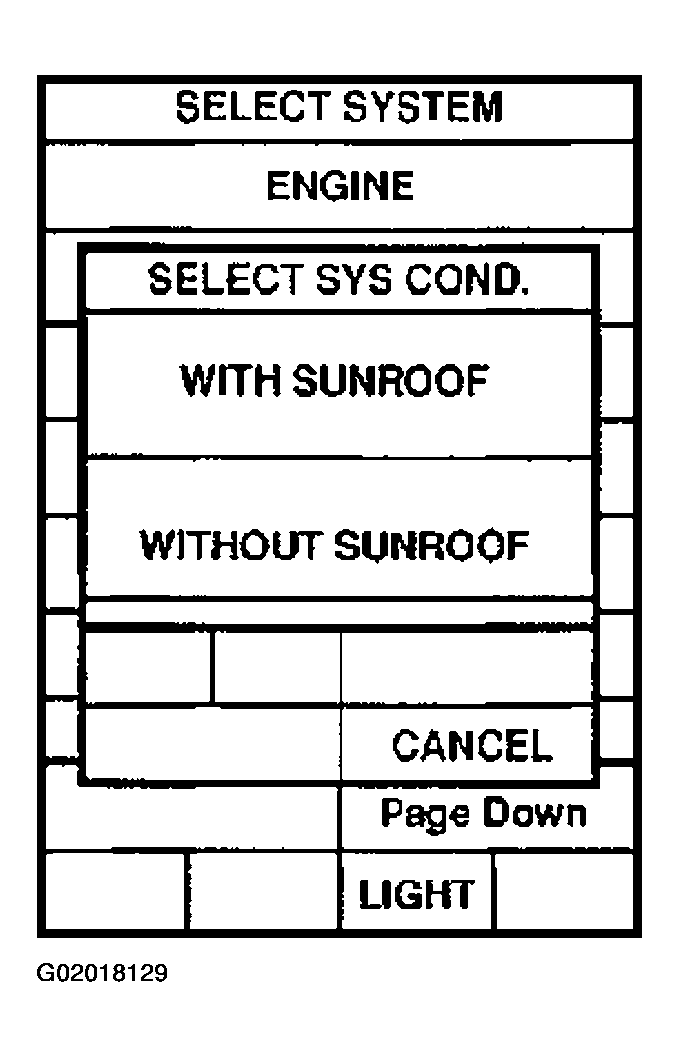

    Fig 3: CONSULT-II Display - WITH SUNROOF Or WITHOUT SUNROOF
    G02018129Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "IVMS"

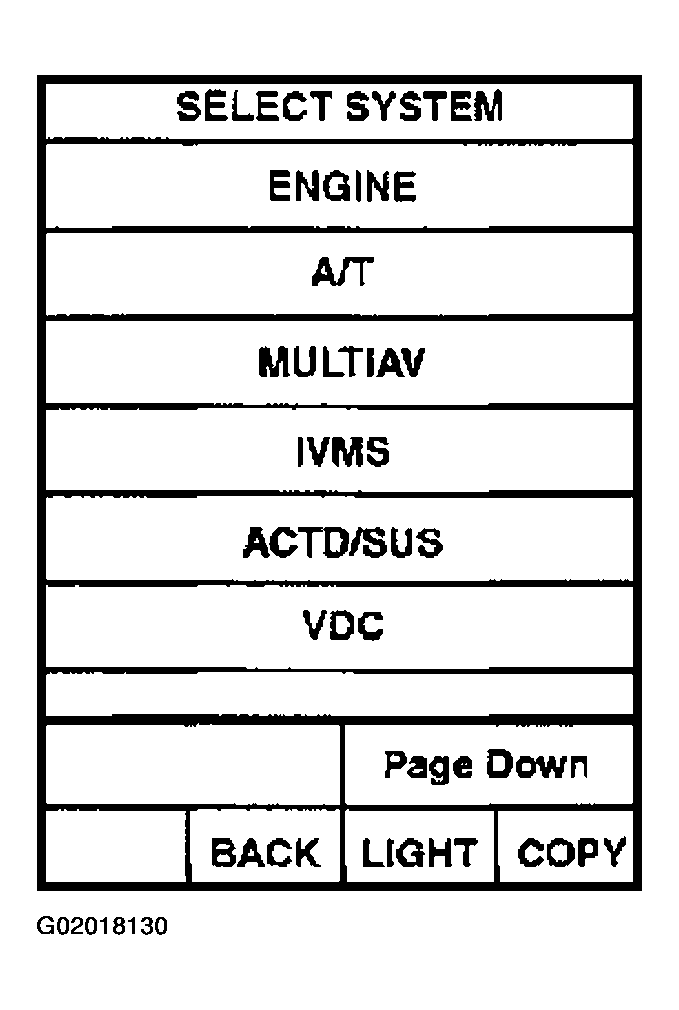

    Fig 4: CONSULT-II Display - IVMS
    G02018130Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "MULTI-REMOTE CONT SYS".

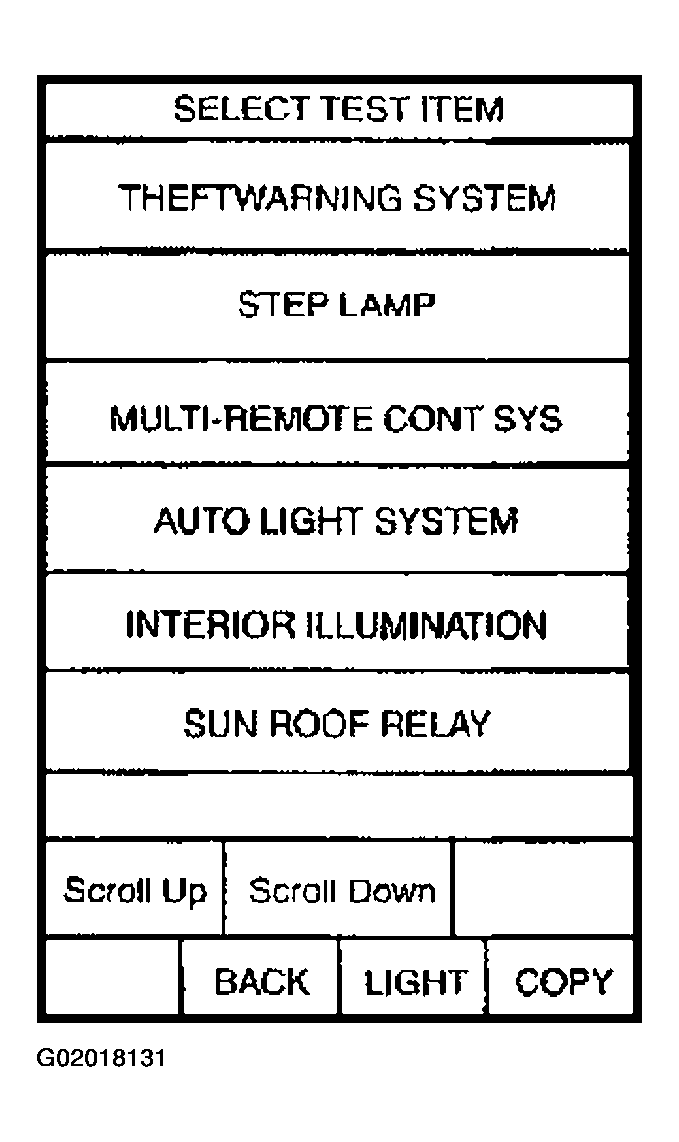

    Fig 5: CONSULT-II Display - MULTI-REMOTE CONT SYS
    G02018131Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WORK SUPPORT".
  10. The item shown on the figure at right can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a electronic key ID code is registered or not.

    • "REMO CONT ID REGIST" Use this mode to register a electronic key ID code.
      NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
    • "REMO CONT ID ERASUR" Use this mode to erase a electronic key ID code.
    Fig 6: CONSULT-II Display - REMO CONT ID ERASUR
    G02018132Courtesy of NISSAN MOTOR CO., U.S.A.
