2002 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Operation procedure

Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

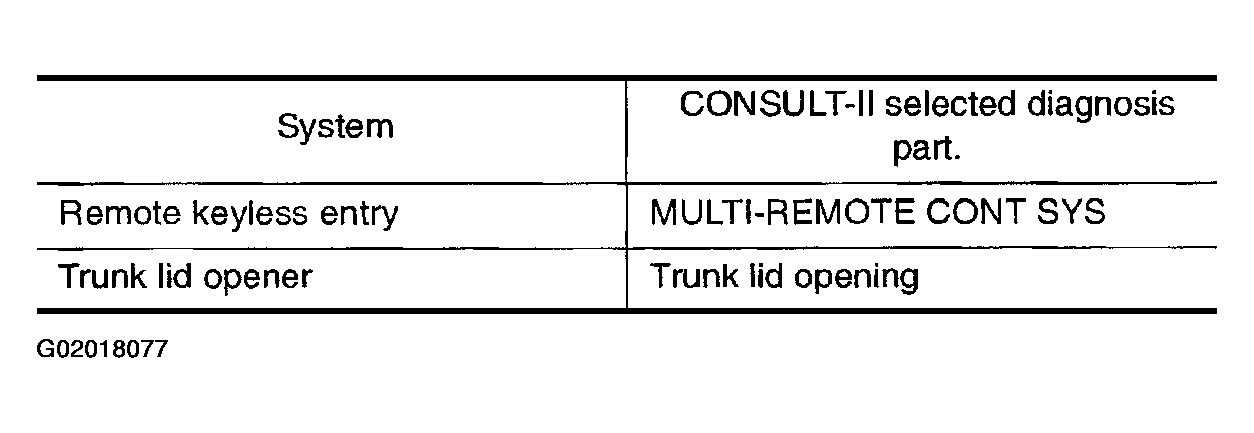

Fig 1: CONSULT-II Selected Diagnostic Part
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
Touch "MAIN SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

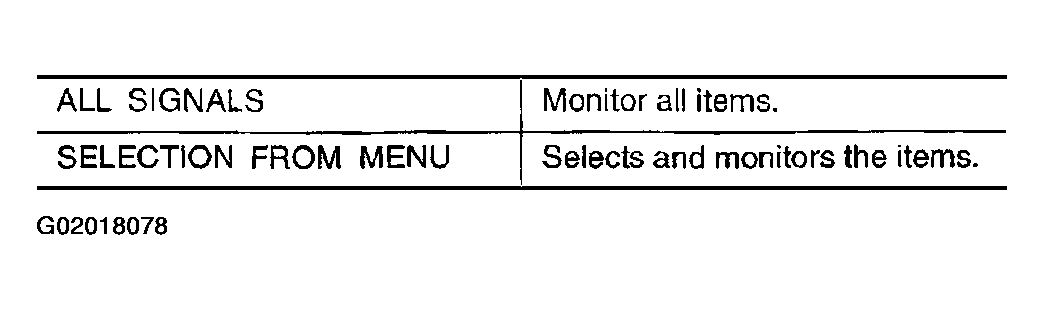

Fig 2: Signal Selection Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "ALL SIGNALS" is selected, the all item required to control is monitored.
During monitoring, touching "COPY" can start recording the monitor item status.
