2002 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect CONSULT-II to the data link connector on vehicle side, and turn the ignition switch ON.

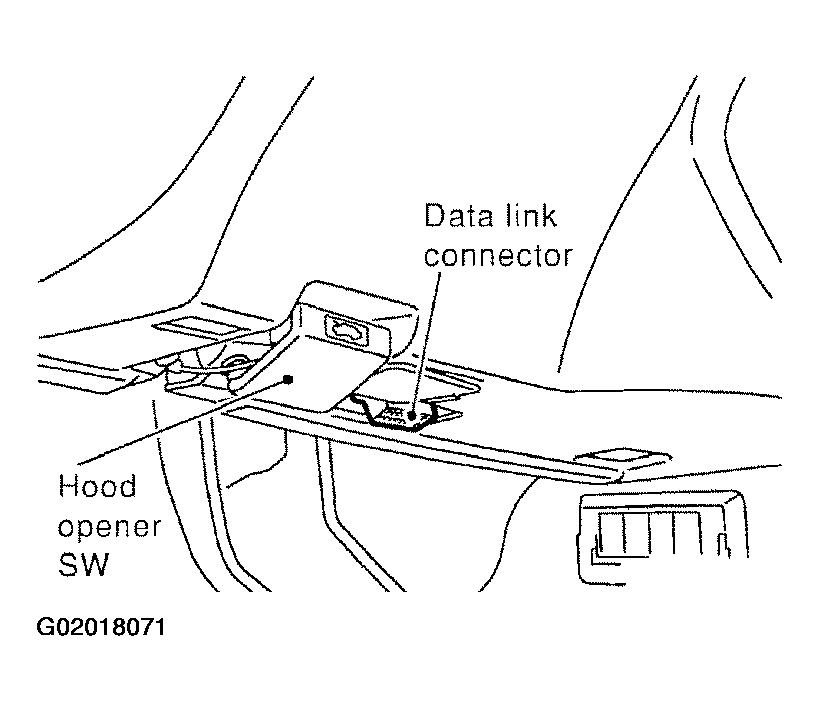

    Fig 1: Locating Data Link Connector
    G02018071Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START".

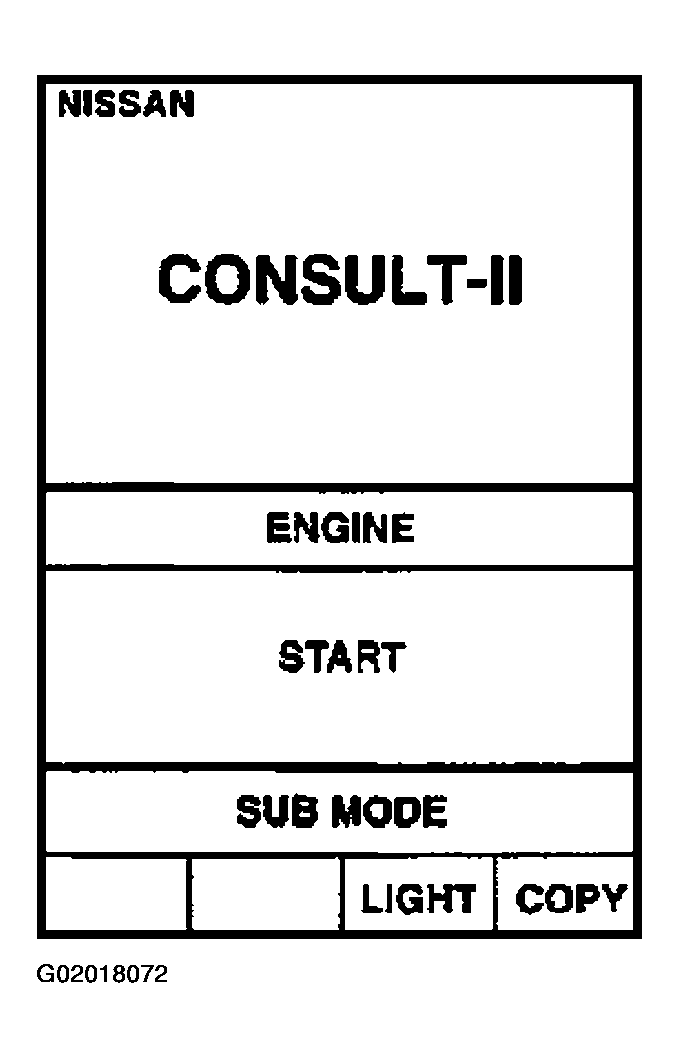

    Fig 2: CONSULT-II Display - START
    G02018072Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS".

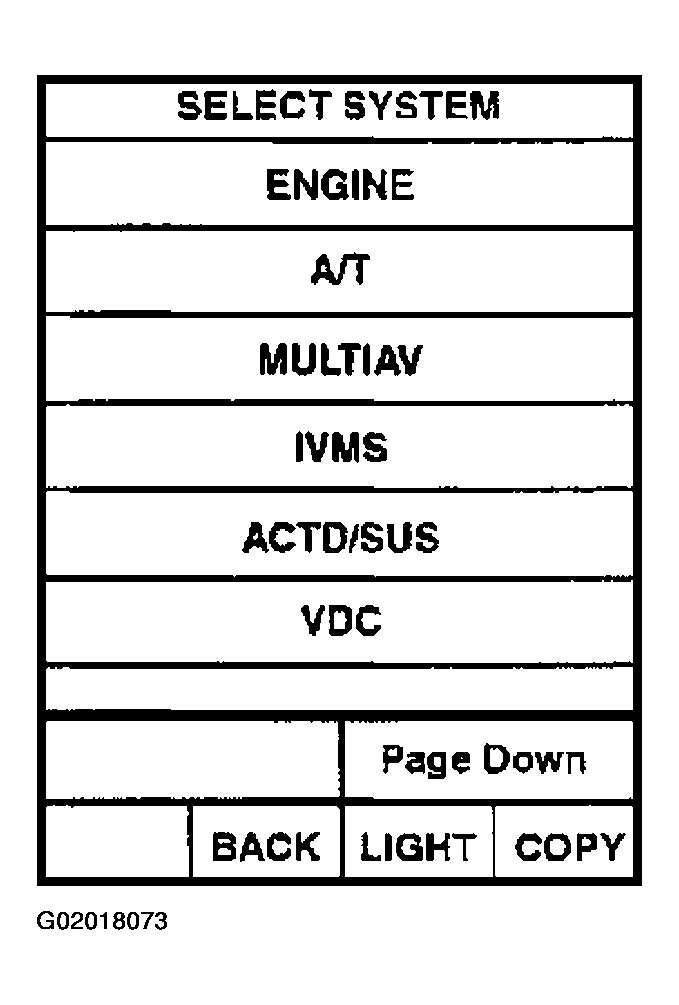

    Fig 3: CONSULT-II Display - IVMS
    G02018073Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".

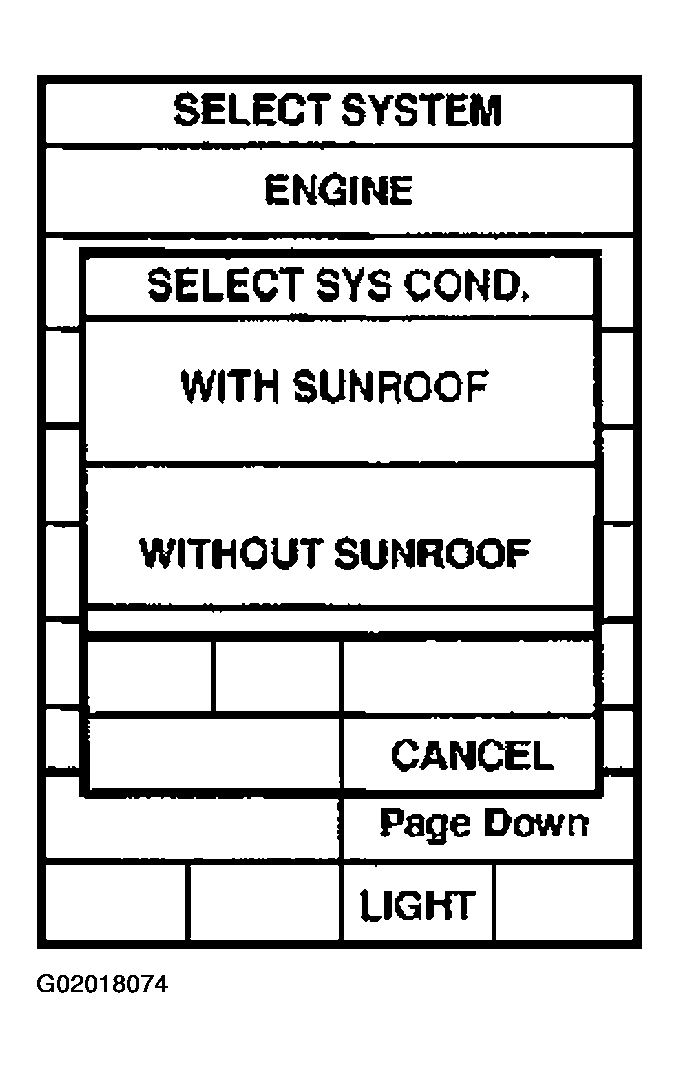

    Fig 4: CONSULT-II Display - WITH SUNROOF Or WITHOUT SUNROOF
    G02018074Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
