Key Switch

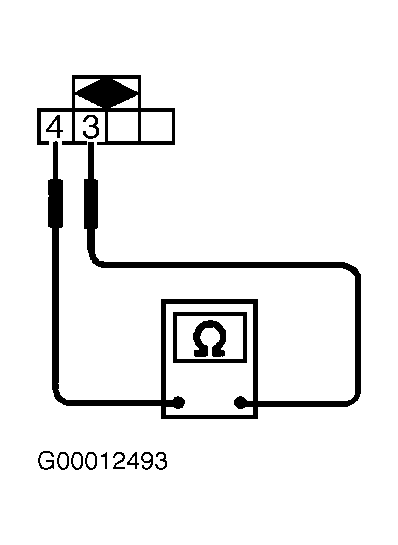

Disconnect key switch 4-pin connector. Check continuity between terminals No. 3 and 4. See Fig 1 . Continuity should be present only with key in ignition lock cylinder. If continuity is as specified, switch is okay. If continuity is not as specified, replace switch.
