1999 Infiniti QX4FACTORY OEM SERVICE PROCEDURE

Throttle Position Switch

NOTE: When testing throttle position switch, measure continuity between specified terminals. See Fig 1.

CLOSED THROTTLE POSITION SWITCH SPECIFICATIONS

Application

Terminals No.

⁽¹⁾ Ohms

All Models

Closed Throttle

5 & 6

Continuity

Open Throttle

5 & 6

No Continuity

⁽¹⁾	With ignition off.

WOT POSITION SWITCH SPECIFICATIONS

Application

Terminals No.

⁽¹⁾ Ohms

All Models

Closed Throttle

4 & 5

No Continuity

Open Throttle

4 & 5

Continuity

⁽¹⁾	With ignition off.

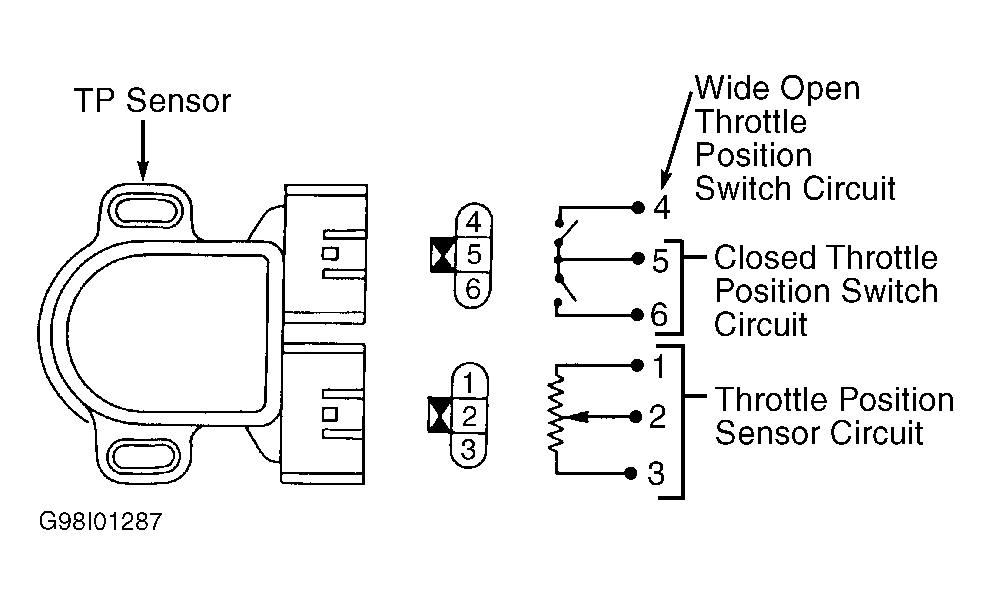

Fig 1: Identifying TP Sensor Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
