1997 Infiniti J30 BaseFACTORY OEM SERVICE PROCEDURE
Power Window Sub-Switch

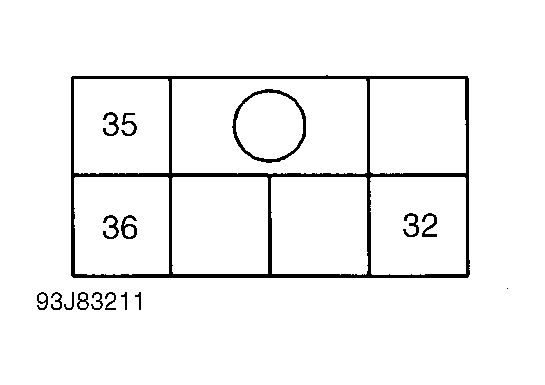

- Unplug harness connector from switch. Using a DVOM, ensure continuity is present between terminals No. 32 and 35 with switch in up position. See Fig 1 . Continuity should not be present with switch in down position.
- Ensure continuity is present between terminals No. 35 and 36 with switch in down position. See Fig 1 . Continuity should not be present with switch in up position. Replace switch if continuity is not as specified.
