1995 Infiniti J30FACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor
- Remove camshaft position sensor from engine. DO NOT disconnect camshaft position sensor harness connector. Turn ignition on (engine off).

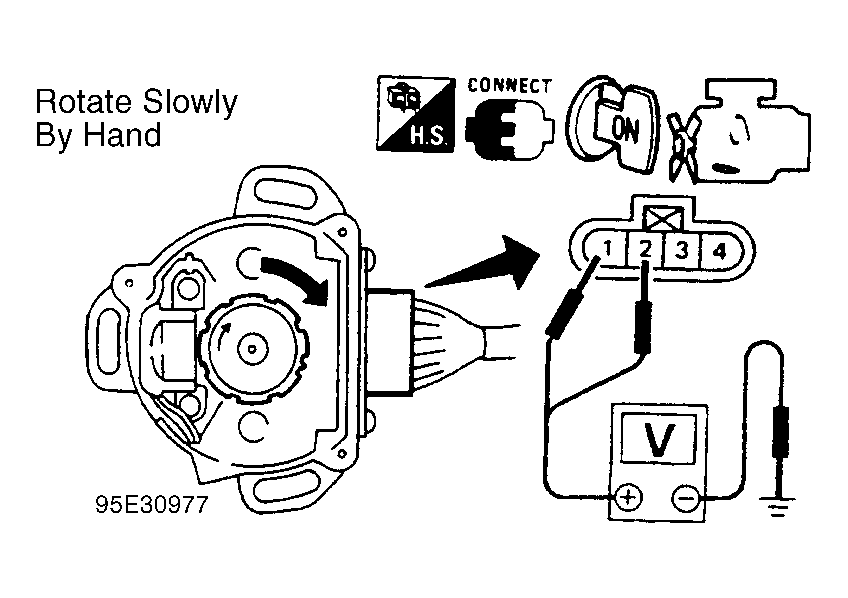

- Connect negative lead of an analog voltmeter to ground. Rotate camshaft position sensor shaft slowly by hand. Connect positive voltmeter lead to camshaft position sensor connector terminal No. 1 (one-degree signal). Voltage should fluctuate between zero and 5 volts. Move voltmeter positive lead to terminal No. 2 (120-degree signal). Voltage should again fluctuate between zero and 5 volts. See Fig 1 .
