1993 Infiniti G20 AutomaticFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor
- Remove distributor (with internal crankshaft position sensor) from engine. DO NOT disconnect crankshaft position sensor harness connector. Turn ignition on.

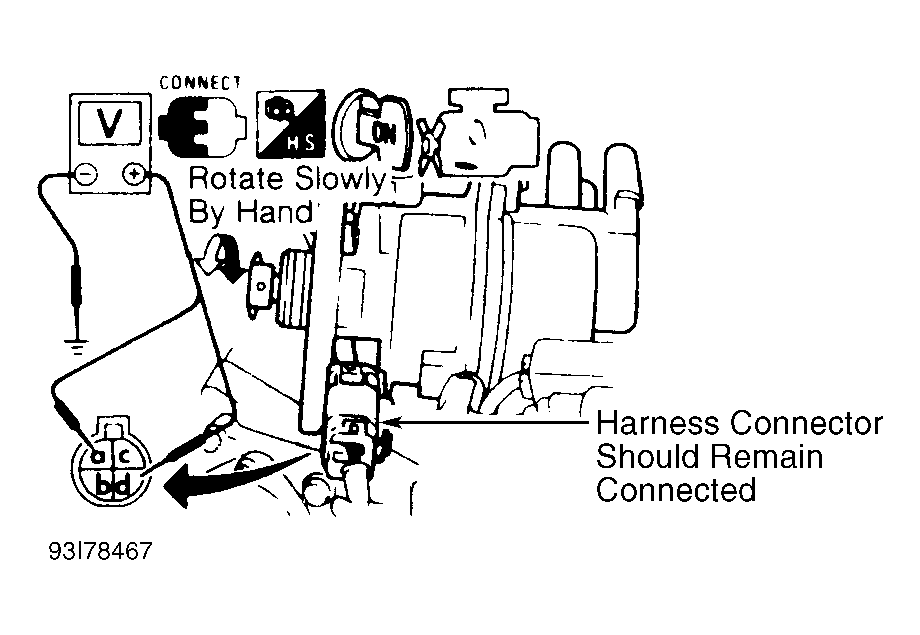

- Connect negative lead of an analog voltmeter to ground. Rotate crank angle sensor shaft slowly by hand. Connect positive voltmeter lead to crankshaft position sensor connector terminal "a" (180-degree signal). See Fig 1 . Voltage should fluctuate between 0 and 5 volts. Move voltmeter positive lead to terminal "d" (one-degree signal). Voltage should again fluctuate between 0 and 5 volts.
