1992 Infiniti Q45 BaseFACTORY OEM SERVICE PROCEDURE

Throttle Control Module (TCM)

On harness side measure voltage between terminals No. 10 or 20, and terminals No. 2, 3, 4, 5, 7, 14 and 15. See TCM INSPECTION TABLE. See Figure , Fig 1 and Fig 2 .

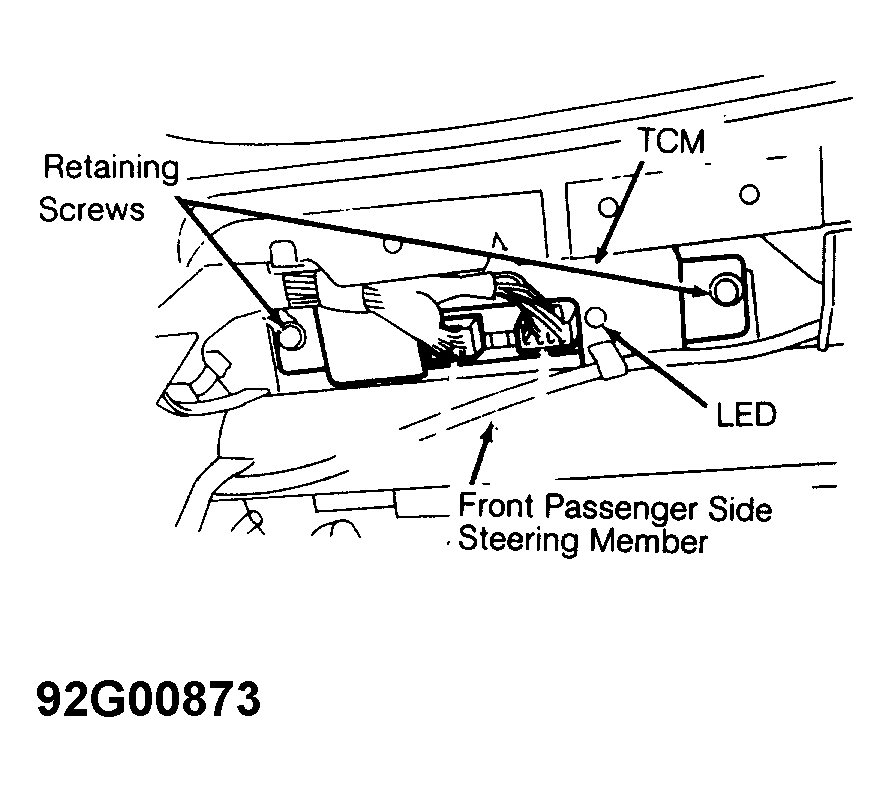

Fig 1: Identifying TCM Location
G92G00873Courtesy of NISSAN MOTOR CO., U.S.A.
