1990 Infiniti M30FACTORY OEM SERVICE PROCEDURE
Ground Circuit

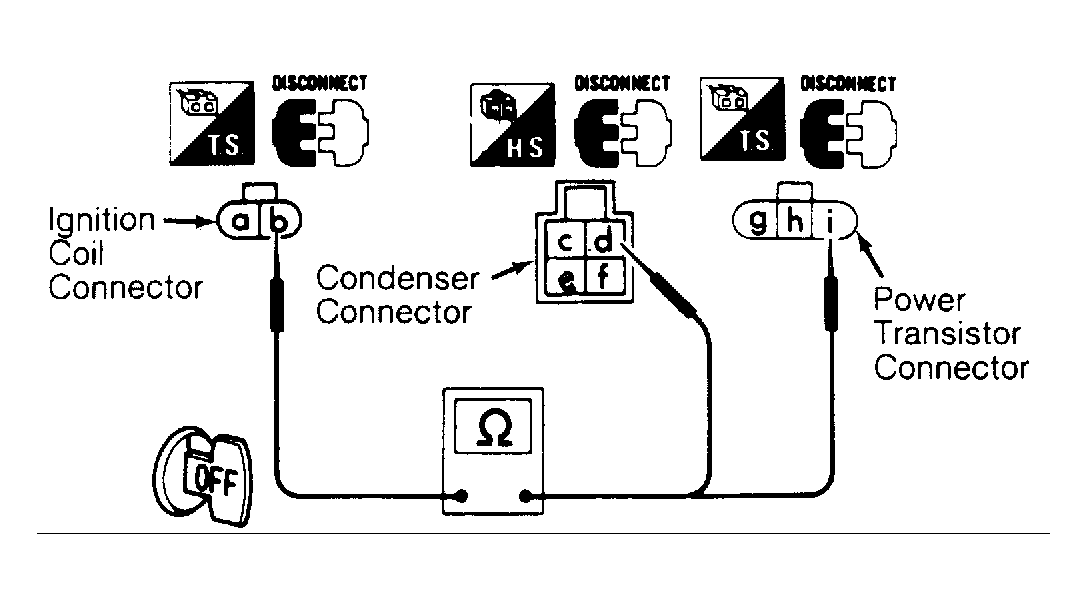

- Turn ignition switch off. Disconnect resistor and condenser harness connector. Disconnect power transistor harness connector. Using ohmmeter, check continuity between ignition coil terminal "b" to resistor and condenser terminal "d", and to power transistor terminal "i". See Fig 1 .
- Connect ohmmeter leads between power transistor terminal "h" and ground. See Fig 1 . Continuity should be present on all these terminals. If continuity is not present, check and repair wiring harness or connectors.
