2022 Hyundai Tucson Plug-In Hybrid LimitedFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

Using the diagnostic tool, check the input/output speed sensor waveforms.

Connect VCI data cable to self-diagnosis connector located at the bottom part of driver seat crash pad.
Start the engine and turn on VCI.
Select the name of vehicle type from diagnostic tool equipment screen.

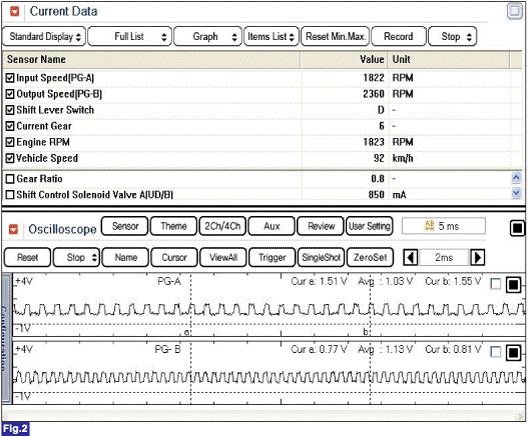

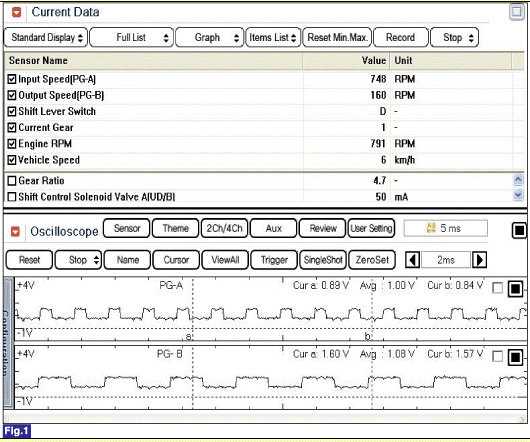

Check the input/output speed sensor waveforms at high speed and low speed.
